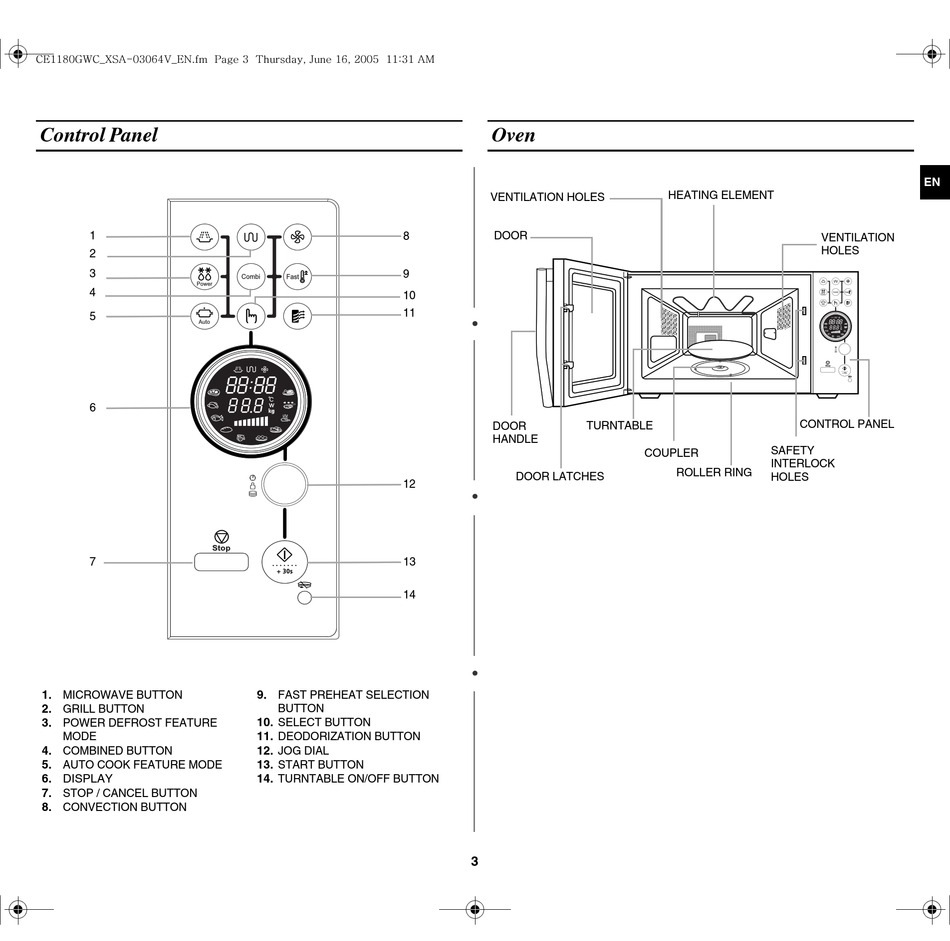

Control Panel

1
2
3
4
5
6
7
1. MICROWAVE BUTTON
2. GRILL BUTTON
3. POWER DEFROST FEATURE
MODE
4. COMBINED BUTTON
5. AUTO COOK FEATURE MODE
6. DISPLAY
7. STOP / CANCEL BUTTON
8. CONVECTION BUTTON
8
9
10
11
12
13
14
9. FAST PREHEAT SELECTION
BUTTON
10. SELECT BUTTON
11. DEODORIZATION BUTTON
12. JOG DIAL
13. START BUTTON
14. TURNTABLE ON/OFF BUTTON

Oven

VENTILATION HOLES
DOOR
DOOR TURNTABLE
HANDLE
COUPLER
DOOR LATCHES
3
HEATING ELEMENT
VENTILATION
HOLES
CONTROL PANEL
SAFETY
INTERLOCK
ROLLER RING
HOLES
