Edelbrock 70028 Installation Instructions

Please study these instructions carefully before installing your new Concealed Nitrous Kit. If you have any questions,
please contact our Technical Hotline at: (800) 416-8628 from 7 am - 5 pm, Monday through Friday, Pacific Standard Time or
e-mail us at edelbrock@edelbrock.com. Please fill out and mail your warranty card.
DESCRIPTION: The concealed nitrous kit is a kit designed to be concealed in the vehicles as well as quickly and easily installed and
removed. This kit provides a minimal nitrous gain, but enough to get those extra hundredths of a second off of your elapsed time.
ATTENTION: Two 9-volt batteries are required for this kit (not included).
WARNING: ONLY USE LIQUID TEFLON PIPE SEALANT ON THREADS. USE OF TEFLON TAPE CAN CAUSE DAMAGE TO YOUR
SYSTEM AS WELL AS THE ENGINE DUE TO TAPE DEBRIS COMING LOOSE AND FLOWING THROUGH YOUR SYSTEM.
1. Connect the solenoid assembly to the bottle valve outlet fitting. Do not use any thread sealant.
2. Place one end of the polyline into the compresssion fitting coming off of the Performer solenoid tee and tighten the
compression fitting securely. The polyline should not be able to be pulled out of the compression fitting if this is done right.
Install the other end through the B-Nut, through the cone ferrule, and into the selected jet. Tighten securely so the cone
ferrule pinches around the edges of the polyline and cannot be pulled out. Do not use any sealant on the compression
fitting.

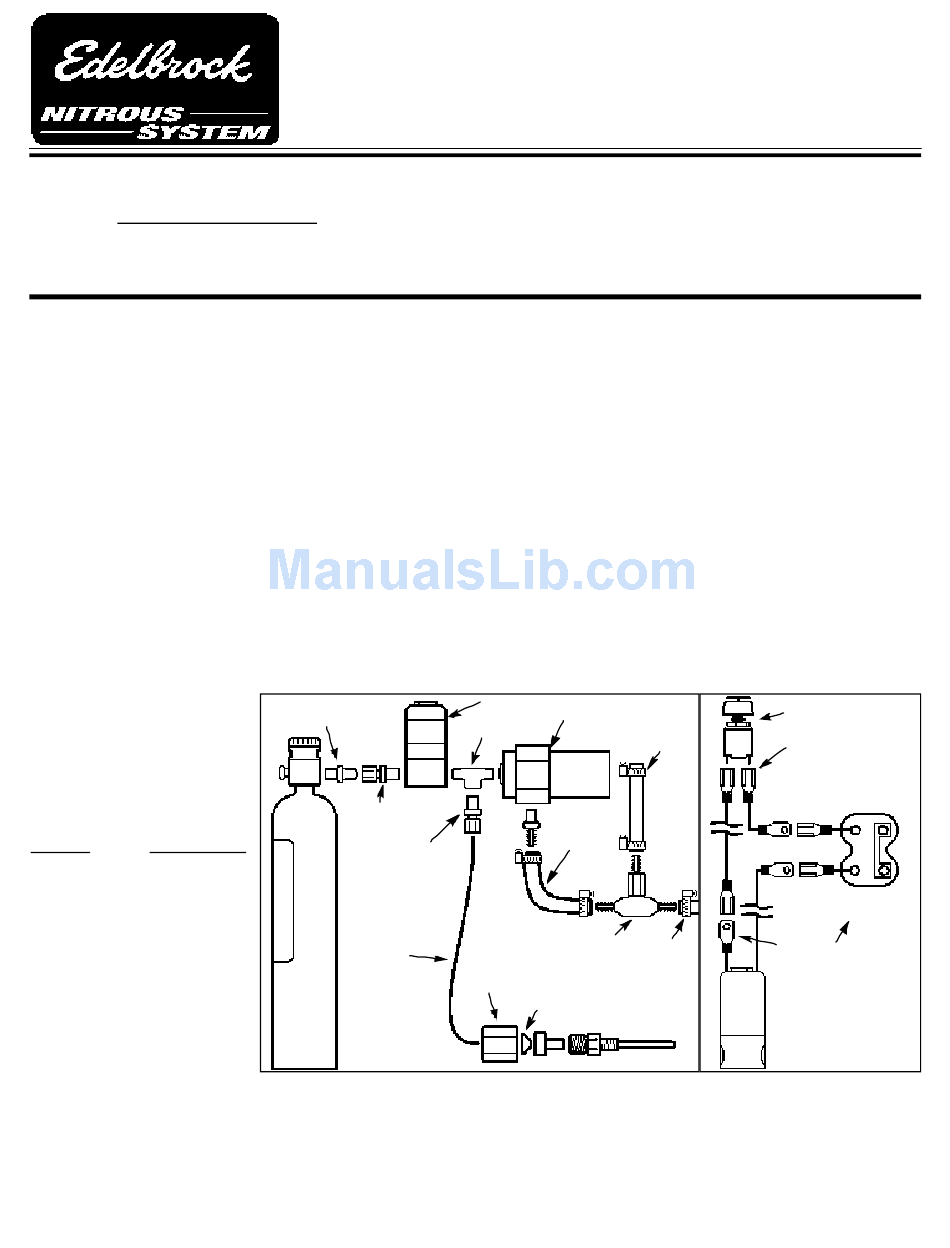

3. Install the vacuum lines and hose clamps from the nitrous pressure regulator to the nitrous vacuum tee as shown in the
diagram pictured below. Make sure the jet in the vacuum tee is a .080" jet. Be sure the tee end with the jet is attached to
the hose leading to the fuel pressure regulator.
4. Intersect the nitrous vacuum tee in the vacuum line leading to the fuel pressure regulator.
5. Connect the wiring as shown in the diagram below.

Jet Map

These HP gains are approximate.
Jet Size Approx. Gain
.020 15 HP
.024 20 HP
.028 25 HP
.030 30 HP
Catalog #70028
Brochure No. 63-0310
INSTALLATION INSTRUCTIONS
3AN 1/8"NPT Fitting
Bottle
3AN Female
to 1/8"NPT
Compression
Fitting
Polyline
Edelbrock Corporation, 2700 California St., Torrance, CA 90503
Tech Line: 1-800-416-8628
Office: 310-781-2222
E-Mail: Edelbrock@Edelbrock.com
Edelbrock Nitrous Systems
Concealed Nitrous Kit for EFI Application
INSTALLATION INSTRUCTION
Performer Solenoid
Nitrous Pressure Regulator
Tee Fitting
To Fuel Regulator
Hose Barb
Vacuum Line
Nitrous Vacuum
Tee
Blue B-Nut
Cone Ferrule
Nozzle
Jet
Catalog #70028
Pushbutton
Female Spade Conn.
To Intake
9 Volt Battery Harness
Manifold
Male Spade Conn.
©2005 Edelbrock Corporation
Rev. 11/05- DC/mc
