Summary of Contents for VTech Kidizoom Princess Digital Camera

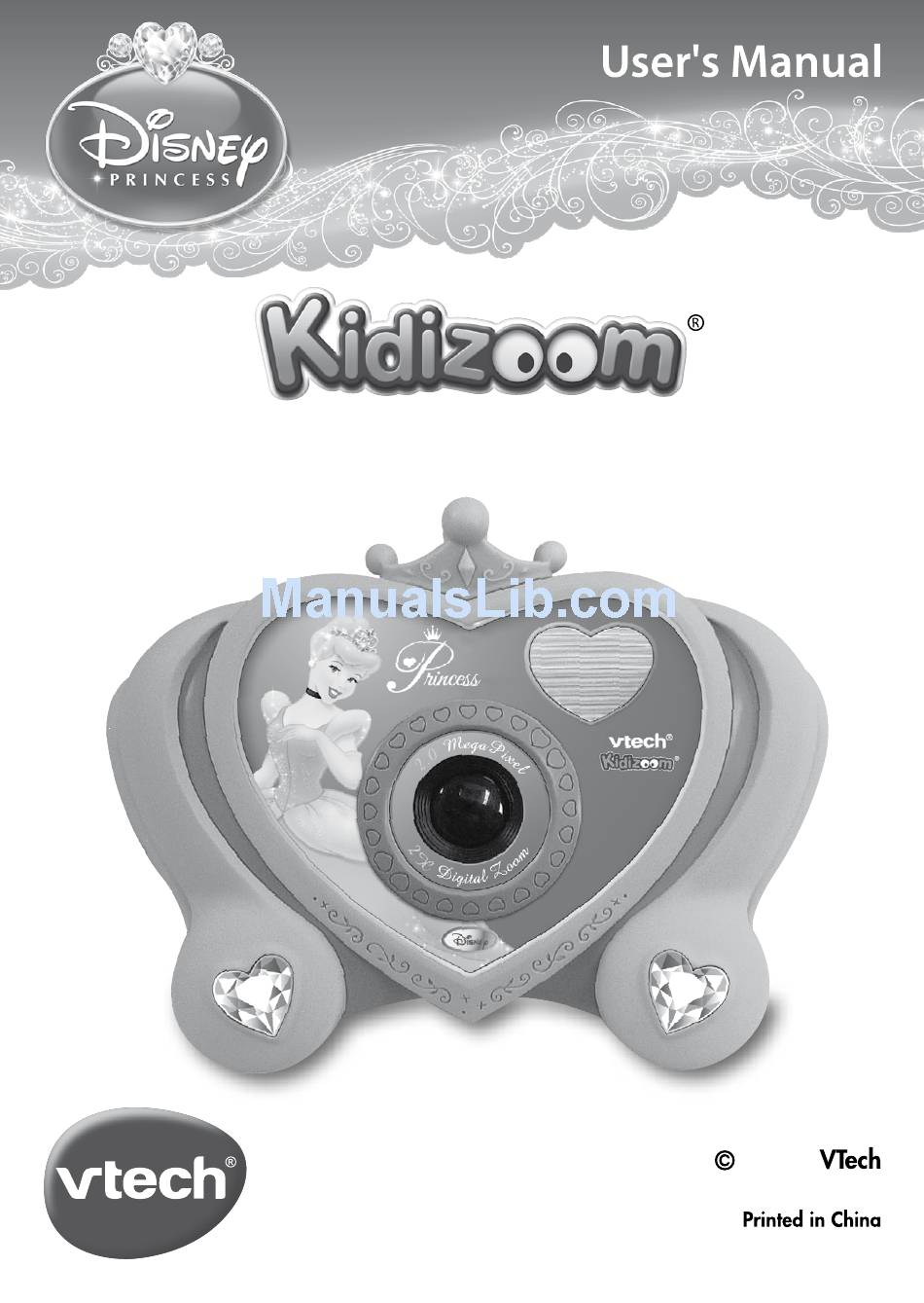

- Page 1 Princess Digital Camera 2011 © Disney 91-009626-007-000...
-
Page 3: Product Features
INTRODUCTION Thank you for purchasing the VTech Princess Digital Camera! ® Take photos with Disney Princesses and add princesses to your movie clips with this sleek, easy to use and durable digital camera! The Princess Digital Camera includes 256MB of built-in memory and supports both... -
Page 4: Play Button
TV. UsB Port Plug the included USB cable into the USB port on the camera to connect to your PC. INCLUDeD IN THIs PaCKaGe Princess Digital Camera • 1 VTech ® • 1 A/V cable • 1 USB cable • 1 user’s manual • 1 wrist strap WaRNING: all packing materials, such as tape, plastic sheets, packaging locks and tags are not part of this toy, and should be discarded for your child’s safety. -
Page 5: Product Specifications
PRODUCT sPeCIFICaTIONs Display: 1.8” color LCD screen Photo Resolution : 1600 x 1200 (JPEG format) Video Resolution : 320 x 240 (Motion JPEG format) Focus Range : 1.5 feet - ∞ Flash Range : 1.5 - 8 feet Batteries : 4 “AA” (LR6) alkaline batteries Internal Memory : 256MB built-in memory (approximately 196MB free memory for photo/video storage) Internal photo storage capacity: Store up to 500 photos... -
Page 6: Getting Started
GeTTING sTaRTeD BaTTeRy INsTaLLaTION Note: Adult assembly is required for battery installation. • Make sure the camera is turned OFF. • Locate the battery covers on the bottom of the camera. Loosen the screws using a cross-head screwdriver and remove the battery covers. • Install 4 new “AA” batteries (2 on each side) as illustrated above. (the use of new alkaline batteries is recommended for maximum performance.) • Replace the battery covers and tighten the screws. -
Page 7: Sd Card Insertion
sD CaRD INseRTION • Make sure the camera is turned OFF. • Locate the SD card slot at the top of the camera. • Pull up the rubber cover. • Insert the SD card (not included) as illustrated on the right. TO BeGIN UsING THe PRINCess DIGITaL CaMeRa • Press the ON/OFF Button to turn on the camera. • If it’s the first time you have powered on the Princess Digital Camera, you will need to select the language you want to use. - Page 8 CONNeCTING TO a TV Note: Before connecting your Princess Digital Camera to a TV, check to make sure that the camera is working properly. Connect your Princess Digital Camera to a TV or monitor using the supplied A/V cable. Insert the A/V cable into the A/V port your Princess Digital Camera.
-
Page 9: Camera Mode
To avoid any potential damage to your Princess Digital Camera: • When the USB cable is not connected to the unit, please ensure the USB rubber cover on the unit is fully covering the USB port. • When the unit is not connected to a TV, please ensure the TV jack rubber cover is fitted in place. • Please ensure the SD card slot rubber cover is fitted in place. aCTIVITIes 1. CaMeRa MODe Press the Camera Mode button to go to Camera Mode. a. -
Page 10: Viewing Photos
Warning: To avoid eye damage, turn off the flash when you’re taking a close-up picture of a person or animal. Note: If the batteries are too weak, the autoflash feature may not be available. The following icon will appear: B. Viewing Photos • To view the photos you’ve taken, press the Play button to enter the Photo Album. -
Page 11: Memory Manager
• While in the Movie Album, press the Trash button to delete the movie that is currently shown on the screen. • To exit the Movie Album and return to Movie Mode, press the Shutter/OK button once, or press the Movie Mode button. Note: Movies taken with the Princess Digital Camera will be saved in the VIDEO folder of the internal memory or on the SD card (not included) if one is inserted into the camera. -
Page 12: Language Setting
Shutter/OK button confirm the language setting. PRINCess DIGITaL CaMeRa PHOTO eDITOR To edit your photos with a computer, there is a VTech Princess Digital ® Camera Photo Editor software package available for both PC and Mac systems. -
Page 13: Computer System Requirements
COMPUTeR sysTeM ReQUIReMeNTs For PC Users: • Pentium 4 CPU, 1 GHz or above ® • 256 MB RAM (512 MB recommended) • Graphic card with 1024x768 at 24 bit color • Monitor Resolution: 1024x768 • 300MB Hard disk space • Windows compatible sound card and speakers ® • Microsoft Windows XP, Windows Vista or Windows 7 Operating ®... -
Page 14: Care And Maintenance
CaRe & MaINTeNaNCe 1. Keep the camera clean by wiping it with a slightly damp cloth. 2. Keep the camera out of direct sunlight and away from any direct heat source. 3. Remove the batteries when the camera is not in use for an extended period of time. - Page 15 Display on the 1. Make sure there are 4 “AA” batteries in the Princess Digital camera. Hold the ON/OFF button for 2 seconds Camera LCD does to turn it on. not turn on 2. Make sure the camera is not connected to a TV with the A/V cable.
- Page 16 SD Card can’t be 1. Check if the SD card is correctly inserted. detected 2. Check if the SD card is less than 32MB in capacity. The Princess Digital Camera doesn’t support SD cards of less than 32MB. 3. Check to see if it is the correct type of card. The Princess Digital Camera doesn’t support MMC or other formats.
-
Page 17: Disclaimer And Limitation Of Liability
® Electronics North America, L.L.C. and its suppliers assume no responsibility for any loss or claims by third parties that may arise through the use of this product. VTech ® Electronics North America, L.L.C. and its suppliers assume no responsibility for any damage or loss caused by deletion of data as a result of malfunction, dead battery, or repairs. - Page 18 • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
- Page 19 Wrist strap attachment Instructions step 1 Locate the thread loop on the end of the strap. Insert it into the groove behind the bar and then push it through. step 2 Feed the end of the strap up through the loop and pull it all the way through.
