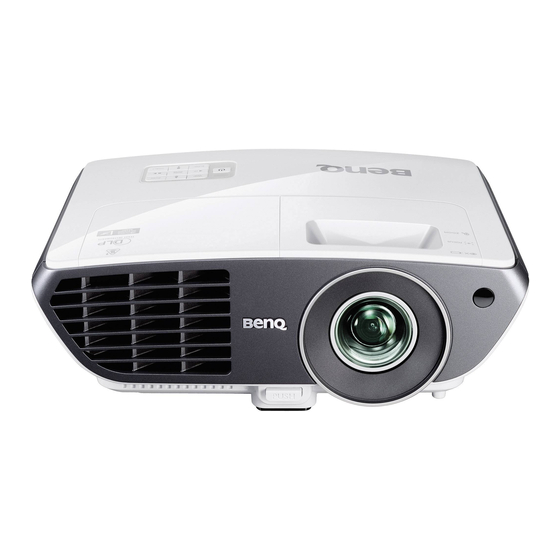

BenQ W700 User Manual

W700 & w710st user manual
Hide thumbs Also See for W700:
Table of Contents

Advertisement

Quick Links

W700 / W710ST
Digital Projector
User Manual
Welcome

Advertisement

Table of Contents
loading

Related Manuals for BenQ W700

Summary of Contents for BenQ W700

  • Page 1 W700 / W710ST Digital Projector User Manual Welcome...

  • Page 2: Table Of Contents

    Table of contents Important safety Freezing the image.........43 Operating in a high altitude  instructions.......3 environment ...........43 Introduction .....7 Adjusting the sound ......44 Personalizing the projector  Projector features ........7 menu display ..........45 Shipping contents ........8 Shutting down the projector ....45 Projector exterior view ......9 Menu operation ........46 Controls and functions......

  • Page 3: Important Safety Instructions

    Important safety instructions Your projector is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that you follow the instructions mentioned in this manual and marked on the product.
  • Page 4 Safety Instructions (Continued) The lamp becomes extremely hot Do not place this product on an during operation. Allow the unstable cart, stand, or table. The projector to cool for approximately product may fall, sustaining serious 45 minutes prior to removing the damage.
  • Page 5 Safety Instructions (Continued) Do not place this projector in any of Do not block the ventilation holes. the following environments. - Do not place this projector on a blanket, bedding or any other soft surface. - Space that is poorly ventilated or - Do not cover this projector with a cloth or confined.
  • Page 6 If you intend to mount your projector on the ceiling, we strongly recommend that you use a proper fitting BenQ projector ceiling mount kit and that you ensure it is securely and safely installed....

  • Page 7: Introduction

    Introduction Projector features The projector integrates high-performance optical engine projection and a user-friendly design to deliver high reliability and ease of use. The projector offers the following features. • Dual HDMI inputs • Filter free design to lower maintenance and operating costs •...

  • Page 8: Shipping Contents

    Projector Remote control with battery (UK) (US) (KOREA) (CHINA) (AU) (JAPAN) (EU) Power cord VGA cable W700 / W710ST Video Projector Quick Start Guide W700/W710ST 2011 P/N:5B.J5401.001 2011 P/N: 4J.J5401.001 Quick start guide User manual CD Warranty card* Optional accessories...

  • Page 9: Projector Exterior View

    Projector exterior view Lamp compartment cover Front/upper side Quick-release button Projection lens External control panel  (See "Projector" on page 10 details.) Top IR remote sensor Focus ring and Zoom ring Vent (cool air intake) Audio speaker Front IR remote sensor S-VIDEO input jack VIDEO input jack Rear/lower side...

  • Page 10: Controls And Functions

    Controls and functions Projector Keystone/Arrow keys ( / Up) Manually corrects distorted images resulting from an angled projection.  "Correcting keystone" on page 33 details. LAMP indicator light Indicates the status of the lamp. Lights up or flashes when the lamp has developed a problem.

  • Page 11: Remote Control

    Remote control Up cursor/Keystone ( : Navigates and changes settings in the OSD. See "Using the menus" on page for details. : Manually corrects distorted images resulting from an angled projection. "Correcting keystone" on page 33 for details. Left cursor/Decrease volume level ( : Navigates and changes settings in the OSD.
  • Page 12 LIGHT ASPECT Turns on or off the remote control backlight Select the display aspect ratios. See for about 10 seconds. Pressing any other key "Selecting the aspect ratio" on page 35 while the backlight is on keeps the backlight details. on for a further 10 seconds.

  • Page 13: Remote Control Effective Range

    Remote control effective range Infra-Red (IR) remote control sensor is located on the front and the top of the projector. The remote control must be held at an angle within 30 degrees perpendicular to the projector's IR remote control sensor to function correctly. The distance between the remote control and the sensor should not exceed 7 meters (~ 23 feet).

  • Page 14: Replacing The Remote Control Battery

    Replacing the remote control battery Remove the battery compartment cover by sliding the cover in the direction of the arrow. Insert the supplied batteries taking note of the polarity (+/-) as shown here. Replace the cover. • Avoid excessive heat and humidity. •...

  • Page 15: Positioning Your Projector

    Rear Ceiling Select this location with the projector suspended upside- down from the ceiling behind the screen. Note that a special rear projection screen and the BenQ Projector Ceiling Mounting Kit are required for this installation location. Set Rear Ceiling in the SYSTEM SETUP: Basic >...

  • Page 16: Obtaining A Preferred Projected Image Size

    BenQ has provided a table of screen sizes to assist you in determining the ideal location for your projector. Refer to "W700/W710ST projection dimensions" on page 18.
  • Page 17 For example, if you are using a 120-inch screen, the W700 average projection distance is 4325 mm and with a vertical offset of 269 mm. the W710ST average projection distance is 2004 mm and with a vertical offset of 269 mm.
  • Page 18 W700/W710ST projection dimensions Refer to "Dimensions" on page 64 for the center of lens dimensions of this projector before calculating the appropriate position. Maximum zoom Minimum zoom Screen Center of lens Vertical offset Projection distance W700 Recommended projection distance 16:9 screen...
  • Page 19 2347 3000 There is 5% tolerance among these numbers due to optical component variations. BenQ recommends that if you intend to permanently install the projector, you should physically test the projection size and distance using the actual projector before you permanently install it, so as to make allowance for this projector's optical characteristics.

  • Page 20: Connection

    Connection When connecting a signal source to the projector, be sure to: Turn all equipment off before making any connections. Use the correct signal cables for each source. Ensure the cables are firmly inserted. In the connections shown below, some cables may not be included with the projector (see "Shipping contents"...

  • Page 21: Connecting Video Source Devices

    Connecting Video source devices You can connect your projector to various Video source devices that provide any one of the following output sockets: • HDMI • Component Video • S-Video • Video (composite) You need only connect the projector to a Video source device using just one of the above connecting methods, however each provides a different level of video quality.

  • Page 22: Connecting Hdmi Source Devices

    Connecting HDMI source devices The projector provides a HDMI input socket that allows you to connect it to a HDMI source device like a DVD player, a DTV tuner or a display. HDMI (High-Definition Multimedia Interface) supports uncompressed video data transmission between compatible devices like DTV tuners, DVD players and displays over a single cable.

  • Page 23: Connecting Component Video Source Devices

    Connecting Component Video source devices Examine your Video source device to determine if it has a set of unused Component Video output sockets available: • If so, you can continue with this procedure. • If not, you will need to reassess which method you can use to connect to the device. To connect the projector to a Component Video source device: Take a Component Video cable and connect the end with 3 RCA type connectors to the Component Video output sockets of the Video source device.
  • Page 24 Connecting S-Video source devices Examine your Video source device to determine if it has an unused S-Video output socket available: • If so, you can continue with this procedure. • If not, you will need to reassess which method you can use to connect to the device. To connect the projector to an S-Video source device: Take an S-Video cable and connect one end to the S-Video output socket of the Video source device.

  • Page 25: Connecting Composite Video Source Devices

    Connecting Composite Video source devices Examine your Video source device to determine if it has a set of unused composite Video output sockets available: • If so, you can continue with this procedure. • If not, you will need to reassess which method you can use to connect to the device. To connect the projector to a composite Video source device: Take a Video cable and connect one end to the composite Video output socket of the Video source device.

  • Page 26: Operation

    Operation Starting up the projector Plug the power cord into the projector and into a wall socket. Turn on the wall socket switch (where fitted). Check that the POWER indicator light on the projector lights orange after power has been applied. Please use the original accessories (e.g.

  • Page 27: Using The Menus

    Front Table Keystone Menu Settings Position Operating Settings Phase Front+Top Remote Receiver H. Size Background Color Black Digital Zoom Splash Screen BenQ 3D Sync My Screen 3D Format Frame Sequential 3D Sync Invert Disable S-VIDEO MENU Exit S-VIDEO Exit MENU...

  • Page 28: Utilizing The Password Function

    Utilizing the password function For security purposes and to help prevent unauthorized use, the projector includes an option for setting up password security. The password can be set through the On-Screen Display (OSD) menu. For details of the OSD menu operation, please refer to "Using the menus"...

  • Page 29: If You Forget The Password

    BenQ  Write down the number and turn off your Customer Center. projector. Seek help from the local BenQ service center to Recall code: decode the number. You may be required to 12345678 provide proof of purchase documentation to...

  • Page 30: Disabling The Password Function

    Disabling the password function To disable password protection, go back to the SYSTEM SETUP: Advanced > Security Settings > Power on Lock menu after opening the OSD menu system. Select Off by pressing . The message 'INPUT PASSWORD' displays. Enter the current password. i.

  • Page 31: Switching Input Signal

    Switching input signal The projector can be connected to multiple devices at the same time. However, it can only display one full screen at a time. Be sure the Quick Auto Search function in the SOURCE menu is On (which is the default of this projector) if you want the projector to automatically search for the signals.

  • Page 32: Adjusting The Projected Image

    Adjusting the projected image Adjusting the projection angle The projector is equipped with 1 quick-release adjuster foot and 1 rear adjuster foot. These adjusters change the image height and projection angle. To adjust the projector: Press the quick-release button and lift the front of the projector.

  • Page 33: Correcting Keystone

    Fine-tuning the image size and clarity Adjust the projected image to the size that you need using the ZOOM ring. FOCU S Then sharpen the image by rotating the FOCUS ring. FOCUS Correcting keystone Keystoning refers to the situation where the projected image is noticeably wider at either the top or bottom.

  • Page 34: Magnifying And Searching For Details

    Press to correct keystoning at the top of the KEYSTONE image or press to correct keystoning at the bottom of the image. Back MENU Magnifying and searching for details If you need to find the details on the projected picture, magnify the picture. Use the direction arrow keys for navigating the picture.

  • Page 35: Selecting The Aspect Ratio

    Selecting the aspect ratio The 'aspect ratio' is the ratio of the image width to the image height. For W700/W710ST, the default aspect ratio is 16:9. Most analog TV and computers are in 4:3 ratio, and digital TV and DVDs are usually in 16:9 ratio.
  • Page 36 4:3:  Scales an image so that it is displayed in the center of the screen with a 4:3 aspect 4:3 picture ratio. This is most suitable for 4:3 images like computer monitors, standard definition TV and 4:3 images aspect DVD movies, as it displays them without aspect alteration.

  • Page 37: Optimizing The Image

    Optimizing the image Using Wall Color In the situation where you are projecting onto a colored surface such as a painted wall which may not be white, the Wall Color feature can help correct the projected picture’s color to prevent possible color difference between the source and projected pictures. To use this function, go to the DISPLAY >...

  • Page 38: Adjusting Brightness

    Setting the User 1/User 2 mode There are two user-definable modes if the current available picture modes are not suitable for your need. You can use one of the picture modes (except the User 1/User 2) as a starting point and customize the settings. Press MENU/EXIT to open the On-Screen Display (OSD) menu.

  • Page 39: Adjusting Color

    Adjusting Color Highlight Color in the PICTURE menu and adjust the values by pressing on the projector or remote control. Lower setting produces less saturated colors. If the setting is too high, colors on the image will be overpowering, which makes the image unrealistic. Adjusting Tint Highlight Tint in the PICTURE menu and adjust the values by pressing on the...
  • Page 40 3D Color Management In most installation situations, color management will not be necessary, such as in classroom, meeting room, or lounge room situations where lights remain on, or where building external windows allow daylight into the room. Only in permanent installations with controlled lighting levels such as boardrooms, lecture theaters, or home theaters, should color management be considered.

  • Page 41: Hiding The Image

    SETUP: Basic > Remote Receiver menu. My Screen In addition to selecting the projector preset startup screen from among Black, Blue or BenQ screen, you can make your own startup screen that is an image projected from your computer or video source.
  • Page 42 The message “Screen Capturing...” displays while the projector is processing the image. Please wait. If the action is successful, you see the message Capture Succeeded “Captured Succeeded” on the screen. The captured image is saved as My Screen. The captured picture has been set Restart the projector to view the captured image as the splash screen.

  • Page 43: Freezing The Image

    Freezing the image Press FREEZE on the remote control to freeze the image. The word 'FREEZE' will display in the upper left corner of the screen. To release the function, press any key on the projector or remote control. Even if an image is frozen on the screen, the pictures are running on the video or other device.

  • Page 44: Adjusting The Sound

    Adjusting the sound The sound adjustments made as below will have an effect on the projector speakers. Be sure you have made a correct connection to the projector audio input. See "Connection" on page for how the audio input is connected. INPUT SOURCE AUDIO IN AUDIO OUT...

  • Page 45: Personalizing The Projector Menu Display

    Personalizing the projector menu display The On-Screen Display (OSD) menus can be set according to your preferences. The following settings do not affect the projection settings, operation, or performance. • Menu display time in the SYSTEM SETUP: Basic > Menu Settings menu sets the length of time the OSD will remain active after your last key press.

  • Page 46: Menu Operation

    Menu operation Menu system Please note that the on-screen display (OSD) menus vary according to the signal type selected. Main menu Sub-menu Options Off/Light Yellow/Pink/Light Wall Color Green/Blue/Blackboard Aspect Ratio Auto/Real/4:3/16:9/16:10 Auto Keystone On/Off Keystone 1.  Position DISPLAY Phase H.

  • Page 47: System Setup

    Auto Power Off min/25 min/30 min Operation Quick Cooling On/Off Setting Disable/5 min/10 min/15 min/20 Blank Timer min/25 min/30 min Disable/30 min/1 hr/2 hr/3 hr/4 Sleep Timer hr/8 hr/12 hr Remote Receiver Front+Top/Top/Front Background Color Black/Blue/Purple Splash Screen BenQ/Black/Blue/MyScreen MyScreen Operation...

  • Page 48: Advanced Settings

    Mute Off/On Volume Range : 0 ~ 10 Audio Settings Power on/off Off/On ring tone Lamp Mode Normal/Economic Lamp Settings Reset lamp timer Equivalent Lamp Hour 5.  High Altitude Off/On Mode SYSTEM Change password SETUP: Security Change Security Power on Lock Advanced Settings Settings...

  • Page 49: Description Of Each Menu

    Description of each menu FUNCTION DESCRIPTION Corrects the projected picture’s color when the projection surface is Wall Color not white. See "Using Wall Color" on page 37 for details. There are four options to set the image's aspect ratio depending on Aspect Ratio your input signal source.
  • Page 50 Pre-defined picture modes are provided so you can optimize your projector image set-up to suit your program type.  Picture Mode "Selecting a picture mode" on page 37 for details. Selects a picture mode that most suits your need for the image quality Reference and further fine-tune the image based on the selections listed on the same page below.

  • Page 51: Background Color

    Selects background appearance when there is no signal. Background Color Allows you to select which logo screen will display during projector Splash start-up. Four options are available: BenQ logo, Black screen, Blue Screen screen, or MyScreen. Captures and stores the projected picture as MyScreen. MyScreen "My Screen"...
  • Page 52 Mute Volume Audio Setting Power On/Off ring tone "Adjusting the sound" on page 44 for details. Lamp Mode "Setting Lamp mode as Economic" on page 55 for details. Reset lamp timer Lamp "Resetting the lamp timer" on page 60 for details. Settings Equivalent Lamp Hour "Getting to know the lamp hour"...
  • Page 53 FUNCTION DESCRIPTION Source Shows the current signal source. Picture Mode Shows the selected mode in the PICTURE menu. Resolution Current Shows the native resolution of the input signal. System Color System Status Shows input system format, NTSC, PAL, SECAM or RGB. Equivalent Lamp Hour Displays the number of hours the lamp has been used.

  • Page 54: Maintenance

    Maintenance Care of the projector Your projector needs little maintenance. The only thing you need to do on a regular basis is to keep the lens clean. Never remove any parts of the projector except the lamp. Contact your dealer if other parts need replacing.

  • Page 55: Lamp Information

    Lamp information Getting to know the lamp hour When the projector is in operation, the duration (in hours) of lamp usage is automatically calculated by the built-in timer. The method of calculating the equivalent lamp hour is as follows: "Setting Lamp mode as Economic" below for more information on Economic mode.

  • Page 56: Timing Of Replacing The Lamp

    55), you may continue to operate the projector until the next lamp warning appears. Lamp >XXXX Hours Order a new lamp at lamp.benq.com A new lamp should be fitted to avoid the Notice inconvenience when the projector runs out of lamp time.

  • Page 57: Replacing The Lamp

    • To assure optimal performance from the projector, it is recommended that you purchase a BenQ projector lamp for lamp replacement. Turn the power off and disconnect the projector from the wall socket. If the lamp is hot, avoid burns by waiting for approximately 45 minutes until the lamp has cooled.
  • Page 58 Lift the handle so that it stands up. Use the handle to slowly pull the lamp out of the projector. • Pulling it too quickly may cause the lamp to break and scatter broken glass in the projector. • Do not place the lamp in locations where water might splash on it, children can reach it, or near flammable materials.
  • Page 59 Resetting the lamp timer After the startup logo, open the On-Screen Notice Display (OSD) menu. Go to the SYSTEM Reset Lamp Timer? SETUP: Advanced > Lamp Settings menu. Press MODE/ENTER. The Lamp Cancel Reset Settings page displays. Press highlight Reset lamp timer and press MODE/ENTER.
  • Page 60 Indicators Light Status & Description Power Temp Lamp Power events Stand-by mode Orange Green Powering up Flashing Normal operation Green Orange The projector needs to cool for 90 seconds after the power is turned off. Flashing Lamp events Orange The lamp ignition retries if the lamp fails during startup. Flashing The projector needs 90 seconds to cool down.

  • Page 61: Troubleshooting

    Troubleshooting The projector does not turn on. Cause Remedy Plug the power cord into the AC inlet on the There is no power from the power projector, and plug the power cord into the cable. power outlet. If the power outlet has a switch, make sure that it is switched on.

  • Page 62: Specifications

    Specifications Projector specifications All specifications are subject to change without notice. General Product name Digital Projector Model name W700 W710ST Optical Resolution 720p, 1280 x 720 Display system 1-CHIP DMD F = 2.52 to 2.73, F = 2.77, Lens F/Number f = 21.8 to 24 mm...

  • Page 63: Dimensions

    Dimensions 330 mm (W) x 119.5 mm (H) x 247 mm (D) 330.0 119.5 58.5 60.0 *Ceiling Mount Screws: Ceiling Mount Installation M4 x L8 (Max. L=12, Min. L=8) 173.7 47.3 121.5 127.0 Unit: mm Specifications...

  • Page 64: Timing Chart

    Timing chart Supported timing for PC input Resolution Horizontal Vertical Pixel Mode Frequency Frequency Frequency (kHz) (Hz) (MHz) 31.469 59.940 25.175 VGA_60* 37.861 72.809 31.500 VGA_72 640 x 480 37.500 75.000 31.500 VGA_75 43.269 85.008 36.000 VGA_85 61.91 119.518 52.5 640 x 480 120Hz* 720 x 400 37.927...
  • Page 65 Resolution Horizontal Vertical Pixel Mode Frequency Frequency Frequency (kHz) (Hz) (MHz) 49.7 59.8 83.5 WXGA_60* 1280 x 800 62.8 74.9 106.5 WXGA_75 71.554 84.880 122.500 WXGA_85 63.981 60.020 108.000 SXGA3_60* 1280 x 1024 79.976 75.025 135.000 SXGA3_75 91.146 85.024 157.500 SXGA3_85 60.000 60.000...
  • Page 66 Supported timing for Component-YPbPr input Signal Format Horizontal Frequency (kHz) Vertical Frequency (Hz) 480i(525i)@60Hz 15.73 59.94 480p(525p)@60Hz 31.47 59.94 576i(625i)@50Hz 15.63 50.00 576p(625p)@50Hz 31.25 50.00 720p(750p)@60Hz 45.00 60.00 720p(750p)@50Hz 37.50 50.00 1080i(1125i)@60Hz 33.75 60.00 1080i(1125i)@50Hz 28.13 50.00 1080P@24Hz 1080P@25Hz 28.13 1080P@30Hz 33.75 1080P@60Hz...
  • Page 67 * Supported timing for 3D function. Supported timing for HDMI (HDCP) input Resolution Horizontal Vertical Pixel Mode Frequency Frequency Frequency (kHz) (Hz) (MHz) 720 x 400 37.927 85.039 35.5 720 x 400_85 31.469 59.940 25.175 VGA_60* 37.861 72.809 31.500 VGA_72 640 x 480 37.500 75.000...
  • Page 68 Resolution Horizontal Vertical Pixel Mode Frequency Frequency Frequency (kHz) (Hz) (MHz) 55.935 59.887 106.500 WXGA+_60* 1440 x 900 70.635 74.984 136.750 WXGA+_75 1400 x 1050 65.317 59.978 121.750 SXGA+_60* 1600 x 1200 75.000 60.000 162.000 UXGA 640 x 480@67Hz 35.000 66.667 30.240 MAC13...

  • Page 69: Warranty And Copyright Information

    Proof of purchase date will be required with any warranty claim. In the event this product is found to be defective within the warranty period, BenQ's only obligation and your exclusive remedy shall be replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects.
