Menu map Page 1 of 4 Menu map Menus list Paper Menu Reports Network/Ports Default Source Menu Settings Page Active NIC Paper Size/Type Device Statistics Network Menu Configure MP Network Setup Page USB Menu Substitute Size Wireless Setup Page Parallel Menu Paper Texture Profiles List SMTP Menu...
Page 2

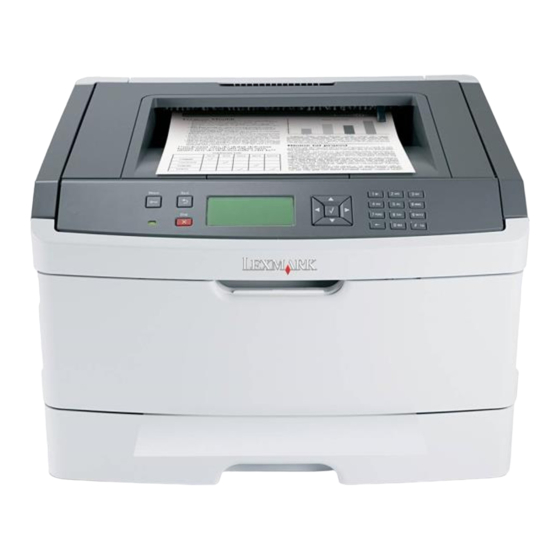

Menu map Page 2 of 4 The following diagrams and tables provide more information about the printer control panel items: Item Description ) Opens the menus Menus button ( Note: The menus are available only when the printer is in the Ready state. Returns the display to the previous screen Back button ( Stops all printer activity...
Page 3
Menu map Page 3 of 4 Item Description Display Shows messages that communicate the status of the printer or that indicate possible printer problems that must be resolved. The display is also capable of showing pictures of Show Me instructions, which show you how to perform a task like clearing a jam. •...
Page 4
Menu map Page 4 of 4 Item Description Keypad Enter numbers or symbols if the display screen has a field that accepts these entries.
