Printing guide
This section explains how to load the 250-sheet tray, the 550-sheet tray, and the multipurpose feeder. It also includes
information about paper orientation, setting the Paper Size and Paper Type, and linking and unlinking trays.

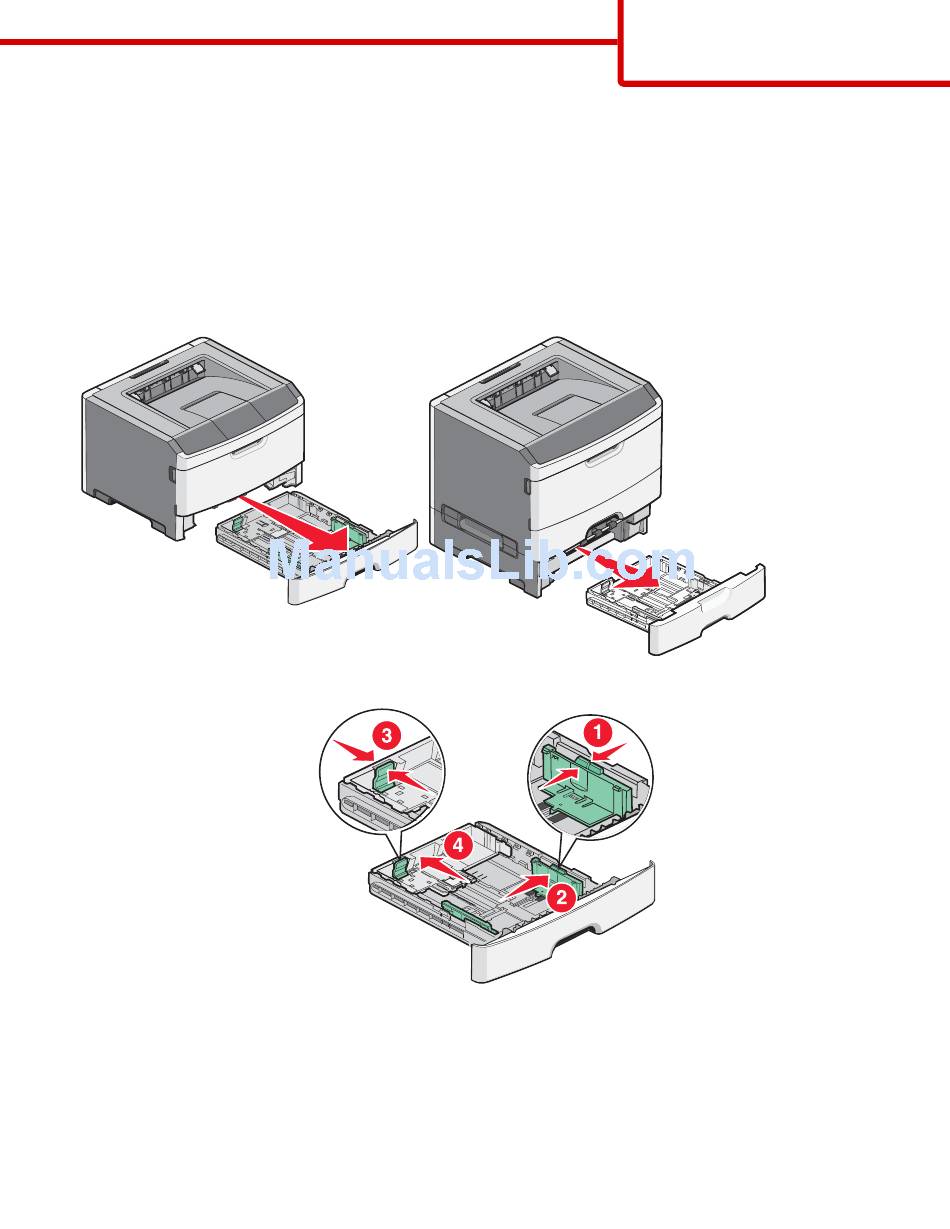

Loading trays
1
Pull the tray completely out.
Note: Do not remove trays while a job prints or while Busy appears on the display. Doing so may cause a jam.
2
Squeeze and slide the guides to the correct position for the paper size you are loading.
Printing guide
Page 1 of 10
Advertisement
Table of Contents
Related Manuals for Lexmark E460DN - Taa Govt Compliant
Summary of Contents for Lexmark E460DN - Taa Govt Compliant
-
Page 1: Loading Trays
Printing guide Page 1 of 10 Printing guide This section explains how to load the 250-sheet tray, the 550-sheet tray, and the multipurpose feeder. It also includes information about paper orientation, setting the Paper Size and Paper Type, and linking and unlinking trays. Loading trays Pull the tray completely out. - Page 2 Printing guide Page 2 of 10 For long paper like A4 or legal, squeeze and slide the length guide backwards to accommodate the length of paper you are loading. If you are loading A6-size paper: Squeeze and slide the length guide toward the center of the tray to the A5 size position. Raise the A6 backstop.
- Page 3 Printing guide Page 3 of 10 Load the paper stack toward the back of the tray as shown with the recommended print side facedown. Note: The maximum fill line on the width guide indicates the maximum height for loading paper. Do not load A6-size paper to the maximum fill line;...
-
Page 4: Using The Multipurpose Feeder
Printing guide Page 4 of 10 Insert the tray. If the paper type you loaded differs from the type that was previously loaded in the tray, then change the Paper Size/Type setting on the Paper menu. Using the multipurpose feeder You may want to use the multipurpose feeder when you print on different sizes and types of papers or specialty media, such as card stock, transparencies, paper labels, and envelopes. - Page 5 Printing guide Page 5 of 10 Grasp the raised handle, and pull the extension forward. Grasp the handle, and pull the extension so it flips forward. Guide the extension down gently so the multipurpose feeder is extended fully and open.
-
Page 6: Loading The Multipurpose Feeder
Printing guide Page 6 of 10 Loading the multipurpose feeder Squeeze the tab located on the right width guide, and move the guides out fully. Prepare the paper or specialty media for loading. • Flex sheets of paper or paper labels back and forth to loosen them, and then fan them. Do not fold or crease the paper or labels. - Page 7 Printing guide Page 7 of 10 Notes: • Do not force any paper into the multipurpose feeder. Overfilling may cause jams. • Do not exceed the maximum stack height by forcing paper or specialty media under the stack height limiters which are located on the guides.
- Page 8 Printing guide Page 8 of 10 • Load envelopes with the flap side down and the stamp location in the position shown. The stamp and address are shown to illustrate the proper orientation for loading envelopes. Warning—Potential Damage: Never use envelopes with stamps, clasps, snaps, windows, coated linings, or self-stick adhesives.
-
Page 9: Setting The Paper Size And Paper Type
Printing guide Page 9 of 10 Setting the Paper Size and Paper Type When the Paper Size and Paper Type settings are the same for any trays, the trays are automatically linked. Note: If you load a tray with paper that is the same size as the paper that was previously loaded in the tray, you do not need to change the Paper Size setting. - Page 10 Printing guide Page 10 of 10 Customize the settings as needed in the Print dialog: With a document open, choose File > Print. If necessary, click the disclosure triangle to see more options. From the print options or Copies & Pages pop-up menu, choose Printer Features. From the Feature Sets pop-up menu, choose Paper.
