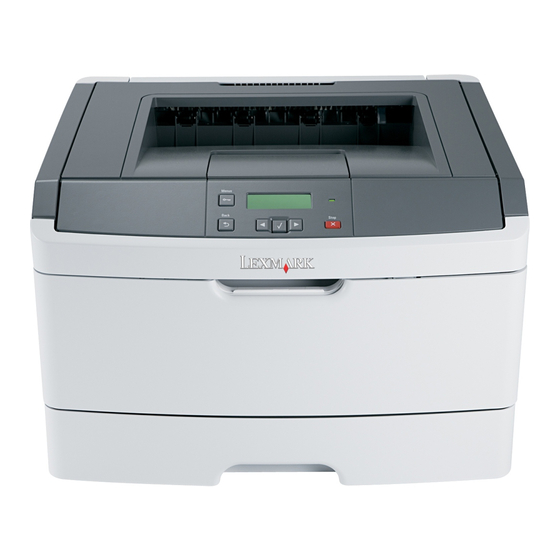

Lexmark E360d Quick Reference

Quick Reference

Loading paper

1
Pull the tray completely out.
2
Squeeze the width guide tabs on the right guide as shown, and
slide the width guides to the sides of the tray.
3
Squeeze the length guide tabs together as shown, and slide
the length guide to the correct position for the paper size being
loaded.
4
Flex the sheets back and forth to loosen them, and then fan
them. Do not fold or crease the paper. Straighten the edges on
a level surface.
5
Load the paper stack toward the back of the tray as shown with
the recommended print side facedown.
Note: Notice the maximum fill line on the side of the width
guide which indicates the maximum height for loading paper.
Do not try to overload the tray.
Loading paper
1
1
Maximum fill line
When loading letterhead, place the top edge of the sheet
toward the front of the tray. Load the letterhead with the
design placed facedown.
6
Squeeze the width guide tabs on the right guide, and slide the
width guides to lightly touch the side of the stack.
7
Insert the tray.
