Install The Processor; Close The Load Plate - Intel BLKD975XBX2KR Product Manual

Intel Desktop Board D975XBX2 Product Guide
6. Hold the processor with your thumb and index fingers oriented as shown in
Figure 11. Make sure fingers align to the socket cutouts (Figure 11, A) Align
notches (Figure 11, B) with the socket (Figure 11, C). Lower the processor straight
down without tilting or sliding it in the socket.
7. While pressing down on the load plate (Figure 12, A), close and engage the socket
lever (Figure 12, B).
32

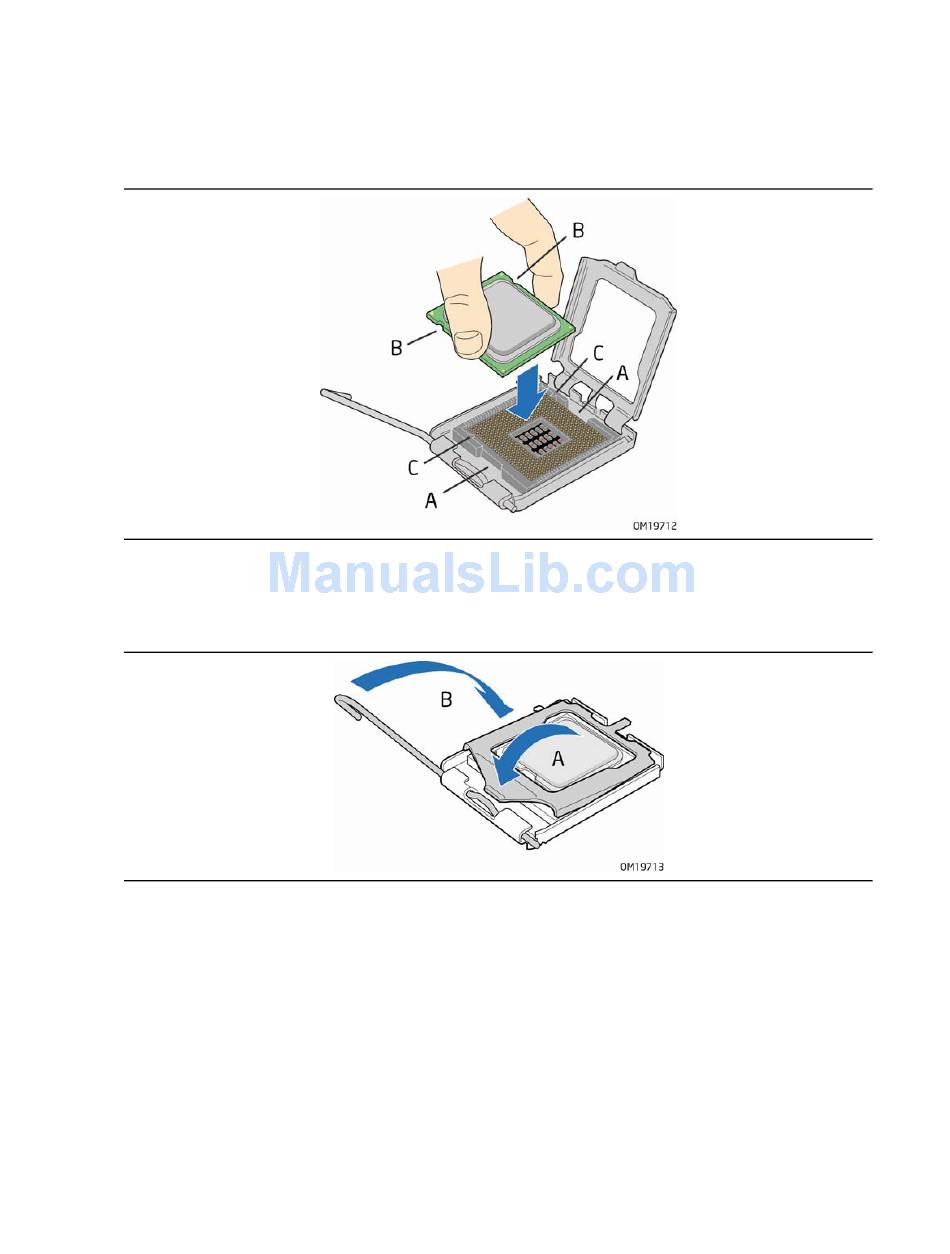

Figure 11. Install the Processor
Figure 12. Close the Load Plate
