NOTE
Do not use the 2x2 to 2x4 adapter when using an Intel
Edition or a processor that is not running at its default settings. Doing so may result
in damage to the desktop board.
3. Connect the 1x4 power supply cable to the 1x4 connector.
4. Connect the main power supply cable to the 2x12 connector (see Figure 28).

Other Connectors

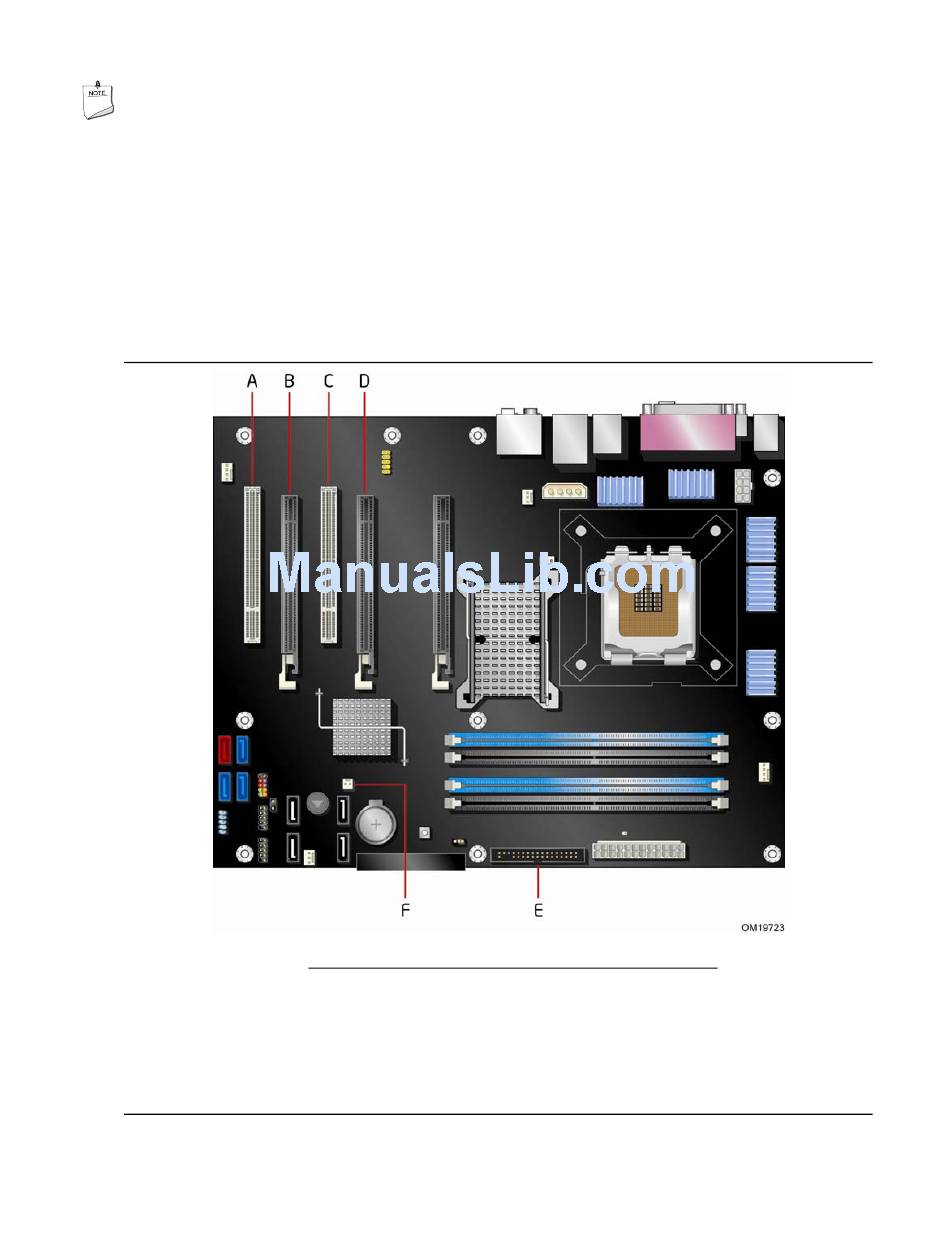

Figure 29 shows the location of the other connectors on the desktop board.
Installing and Replacing Desktop Board Components
Item Description
A PCI bus add-in card connector 2
B PCI Express x16 connector 3 (electrical x4)
C PCI bus add-in card connector 1
D PCI Express x16 connector 2 (electrical x8)
E Diskette drive connector
F Chassis intrusion connector
Figure 29. Location of Other Connectors
® Pentium ® processor Extreme
