Product Description
1.1.3

Block Diagram

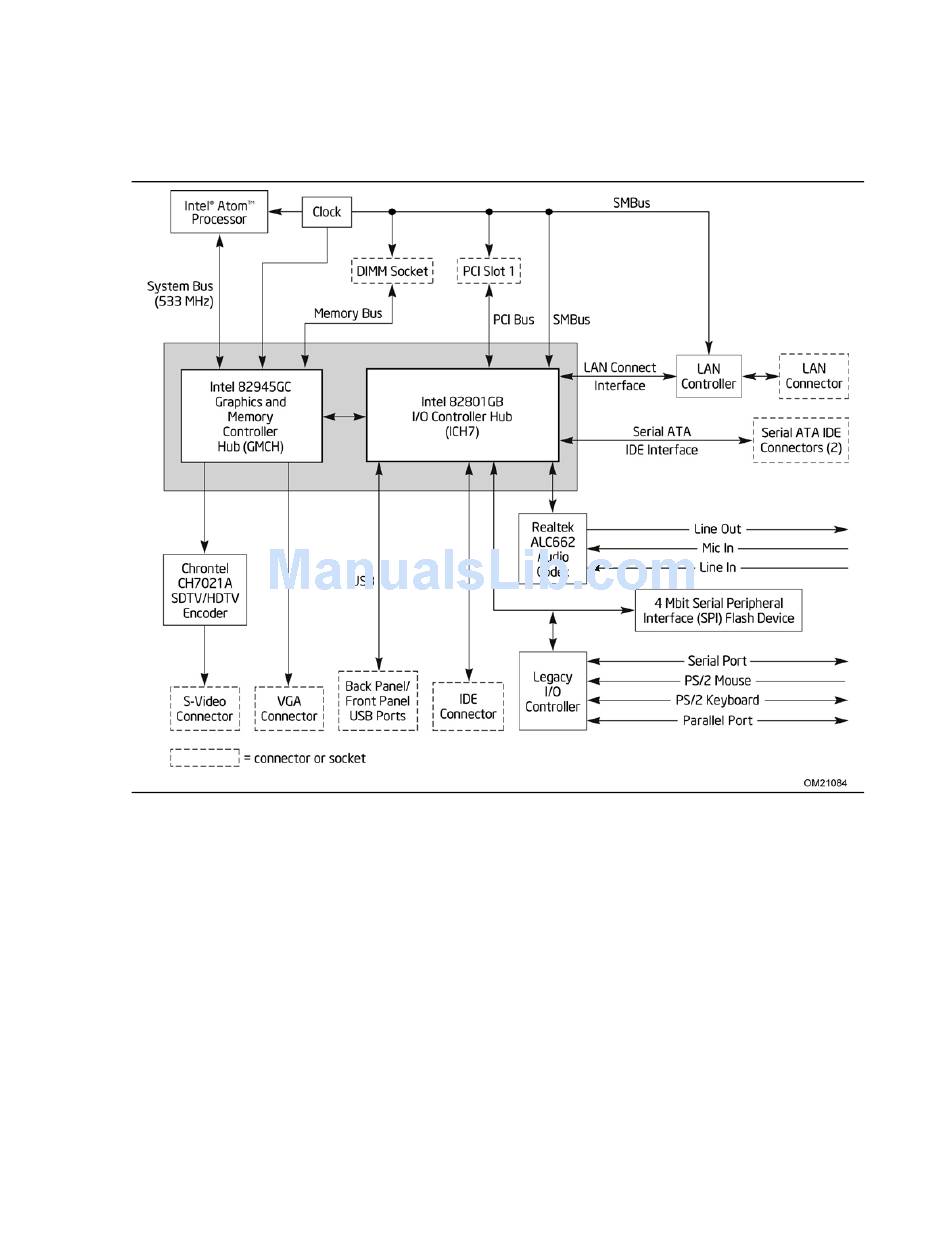

Figure 2 is a block diagram of the major functional areas. The S-Video connector is
not available on the D945GCLF2D Desktop Board.
Figure 2. Block Diagram
13
