2.2.2.5 Front Panel USB Headers
Figure 11 is a connection diagram for the front panel USB headers.
INTEGRATOR'S NOTES
• The +5 V DC power on the USB headers is fused.
• Use only a front panel USB connector that conforms to the USB 2.0 specification
for high-speed USB devices.

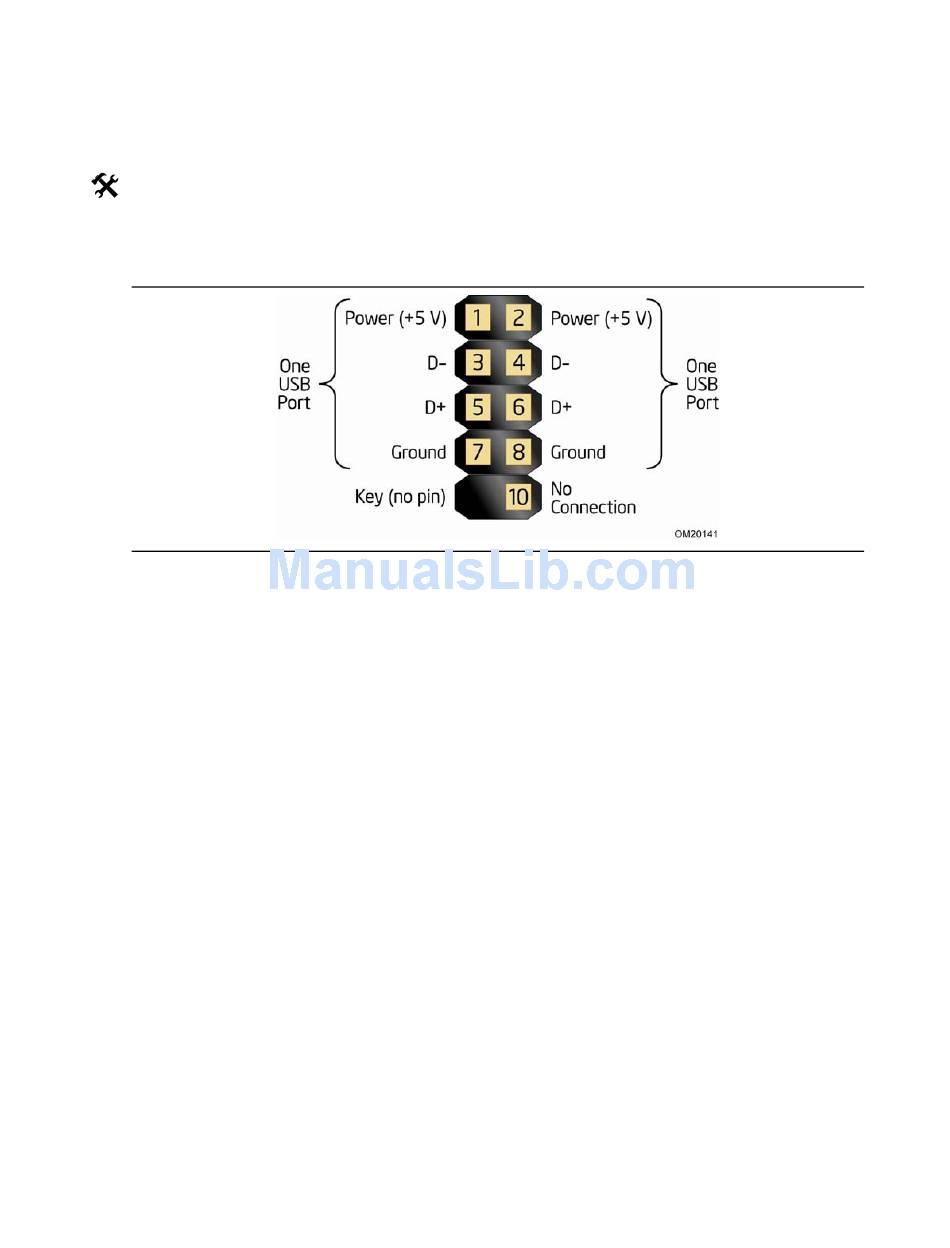

Figure 11. Connection Diagram for Front Panel USB Headers
