Getting Started

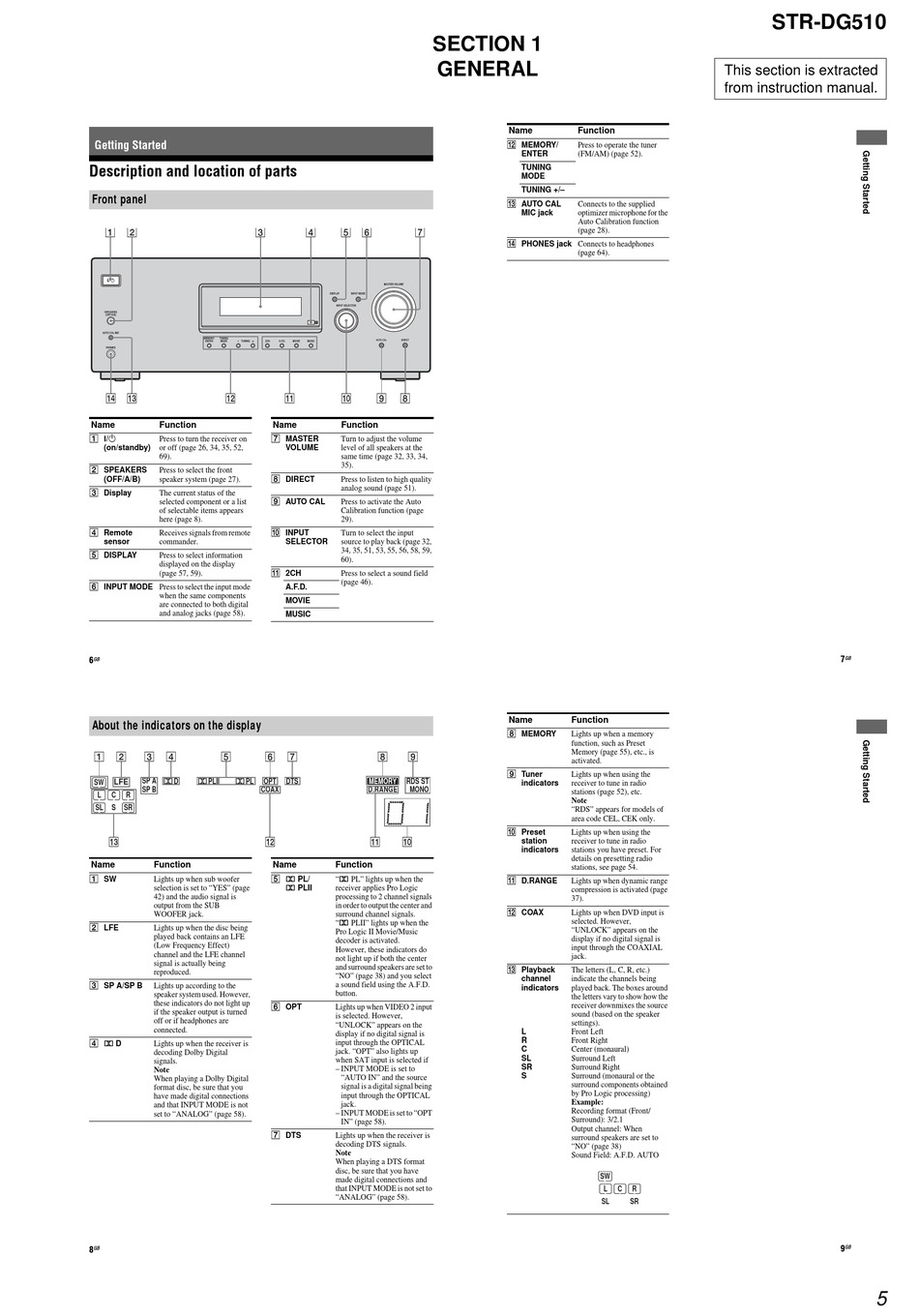

Description and location of parts

Front panel
1 2 3
?/1
SPEAKERS
(OFF/A/B)
AUTO CAL MIC
MEMORY/ TUNING
ENTER MODE TUNING
PHONES
qf qd qs
Name Function
A ?/1
Press to turn the receiver on
(on/standby) or off (page 26, 34, 35, 52,
69).
B SPEAKERS
Press to select the front
(OFF/A/B)
speaker system (page 27).
C Display
The current status of the
selected component or a list
of selectable items appears
here (page 8).
D Remote
Receives signals from remote
sensor
commander.
E DISPLAY
Press to select information
displayed on the display
(page 57, 59).
F INPUT MODE Press to select the input mode
when the same components
are connected to both digital
and analog jacks (page 58).
6 GB
About the indicators on the display
1 2 3 4 5
SP A ; ; ;
D PLII PL
SW LFE
SP B COAX
L C R
SL S SR
qd
Name Function
A SW
Lights up when sub woofer
selection is set to "YES" (page
42) and the audio signal is
output from the SUB
WOOFER jack.
B LFE
Lights up when the disc being
played back contains an LFE
(Low Frequency Effect)
channel and the LFE channel
signal is actually being
reproduced.
C SP A/SP B
Lights up according to the
speaker system used. However,
these indicators do not light up
if the speaker output is turned
off or if headphones are
connected.
D ; D
Lights up when the receiver is
decoding Dolby Digital
signals.
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections
and that INPUT MODE is not
set to "ANALOG" (page 58).
8 GB
SECTION 1
4 5 6 7
MASTER VOLUME
DISPLAY INPUT MODE
INPUT SELECTOR
AUTO CAL DIRECT
2CH A.F.D. MOVIE MUSIC
qa q; 9 8
Name Function
G MASTER
Turn to adjust the volume
VOLUME level of all speakers at the
same time (page 32, 33, 34,
35).
H DIRECT
Press to listen to high quality
analog sound (page 51).
I AUTO CAL
Press to activate the Auto
Calibration function (page
29).
J INPUT
Turn to select the input
SELECTOR
source to play back (page 32,
34, 35, 51, 53, 55, 56, 58, 59,
60).
K 2CH
Press to select a sound field
(page 46).
A.F.D.
MOVIE
MUSIC
6 7 8 9
OPT DTS MEMORY RDS ST
D.RANGE MONO
qs qa q;
Name Function
E ; PL/
"; PL" lights up when the
; PLII
receiver applies Pro Logic
processing to 2 channel signals
in order to output the center and
surround channel signals.
"; PLII" lights up when the
Pro Logic II Movie/Music
decoder is activated.
However, these indicators do
not light up if both the center
and surround speakers are set to
"NO" (page 38) and you select
a sound field using the A.F.D.
button.
F OPT
Lights up when VIDEO 2 input
is selected. However,
"UNLOCK" appears on the
display if no digital signal is
input through the OPTICAL
jack. "OPT" also lights up
when SAT input is selected if
– INPUT MODE is set to
"AUTO IN" and the source
signal is a digital signal being
input through the OPTICAL
jack.
– INPUT MODE is set to "OPT
IN" (page 58).
G DTS
Lights up when the receiver is
decoding DTS signals.
Note
When playing a DTS format
disc, be sure that you have
made digital connections and
that INPUT MODE is not set to
"ANALOG" (page 58).

GENERAL

Name Function
L MEMORY/
Press to operate the tuner
ENTER (FM/AM) (page 52).
TUNING
MODE
TUNING +/–
M AUTO CAL
Connects to the supplied
MIC jack optimizer microphone for the
Auto Calibration function
(page 28).
N PHONES jack Connects to headphones
(page 64).
Name Function
H MEMORY
Lights up when a memory
function, such as Preset
Memory (page 55), etc., is
activated.
I Tuner
Lights up when using the
indicators
receiver to tune in radio
stations (page 52), etc.
Note
"RDS" appears for models of
area code CEL, CEK only.
J Preset
Lights up when using the
station receiver to tune in radio
indicators stations you have preset. For
details on presetting radio
stations, see page 54.
K D.RANGE
Lights up when dynamic range
compression is activated (page
37).
L COAX
Lights up when DVD input is
selected. However,
"UNLOCK" appears on the
display if no digital signal is
input through the COAXIAL
jack.
M Playback
The letters (L, C, R, etc.)
channel indicate the channels being
indicators
played back. The boxes around
the letters vary to show how the
receiver downmixes the source
sound (based on the speaker
settings).
L Front Left
R
Front Right
C
Center (monaural)
SL Surround Left
SR Surround Right
S Surround (monaural or the
surround components obtained
by Pro Logic processing)
Example:
Recording format (Front/
Surround): 3/2.1
Output channel: When
surround speakers are set to
"NO" (page 38)
Sound Field: A.F.D. AUTO
SW
L
SL
STR-DG510
This section is extracted
from instruction manual.
C R
SR
7 GB
9 GB
