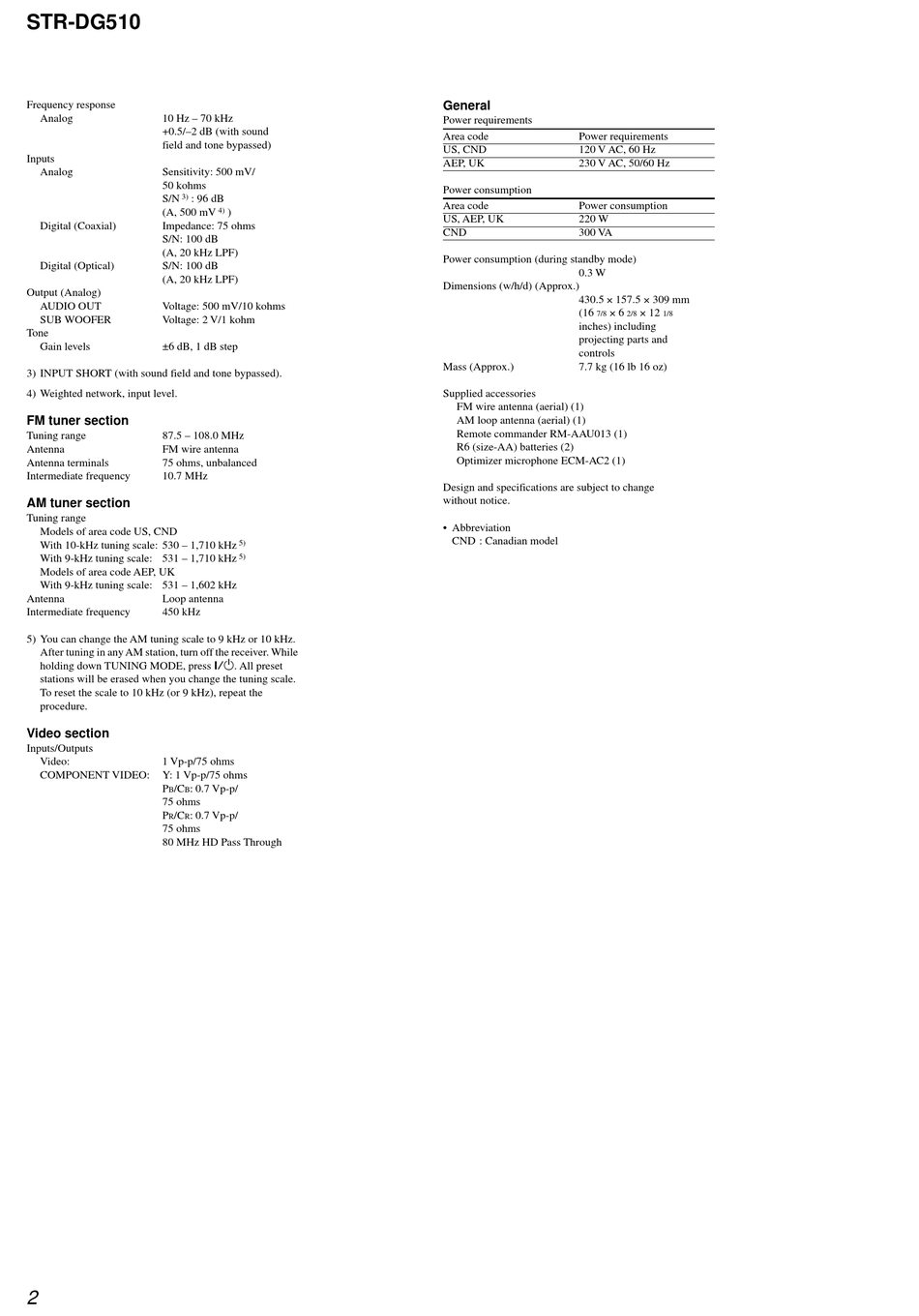

STR-DG510
Frequency response
Analog 10 Hz – 70 kHz
+0.5/–2 dB (with sound
field and tone bypassed)
Inputs
Analog Sensitivity: 500 mV/
50 kohms
3)
S/N : 96 dB
(A, 500 mV
Digital (Coaxial) Impedance: 75 ohms
S/N: 100 dB
(A, 20 kHz LPF)
Digital (Optical) S/N: 100 dB
(A, 20 kHz LPF)
Output (Analog)
AUDIO OUT Voltage: 500 mV/10 kohms
SUB WOOFER Voltage: 2 V/1 kohm
Tone
Gain levels ±6 dB, 1 dB step
3) INPUT SHORT (with sound field and tone bypassed).
4) Weighted network, input level.
FM tuner section
Tuning range 87.5 – 108.0 MHz
Antenna FM wire antenna
Antenna terminals 75 ohms, unbalanced
Intermediate frequency 10.7 MHz
AM tuner section
Tuning range
Models of area code US, CND
With 10-kHz tuning scale: 530 – 1,710 kHz
With 9-kHz tuning scale: 531 – 1,710 kHz
Models of area code AEP, UK
With 9-kHz tuning scale: 531 – 1,602 kHz
Antenna Loop antenna
Intermediate frequency 450 kHz
5) You can change the AM tuning scale to 9 kHz or 10 kHz.
After tuning in any AM station, turn off the receiver. While
holding down TUNING MODE, press ?/1. All preset
stations will be erased when you change the tuning scale.
To reset the scale to 10 kHz (or 9 kHz), repeat the
procedure.
Video section
Inputs/Outputs
Video: 1 Vp-p/75 ohms
COMPONENT VIDEO: Y: 1 Vp-p/75 ohms
P /C : 0.7 Vp-p/
B B
75 ohms
P /C : 0.7 Vp-p/
R R
75 ohms
80 MHz HD Pass Through
2
4)
)
5)
5)
General
Power requirements
Area code Power requirements
US, CND 120 V AC, 60 Hz
AEP, UK 230 V AC, 50/60 Hz
Power consumption
Area code Power consumption
US, AEP, UK 220 W
CND 300 VA
Power consumption (during standby mode)
0.3 W
Dimensions (w/h/d) (Approx.)
430.5 × 157.5 × 309 mm
(16 × 6
7/8
inches) including
projecting parts and
controls
Mass (Approx.) 7.7 kg (16 lb 16 oz)
Supplied accessories
FM wire antenna (aerial) (1)
AM loop antenna (aerial) (1)
Remote commander RM-AAU013 (1)
R6 (size-AA) batteries (2)
Optimizer microphone ECM-AC2 (1)
Design and specifications are subject to change
without notice.
• Abbreviation
CND : Canadian model
× 12
2/8 1/8
