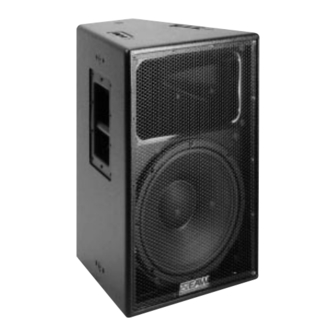

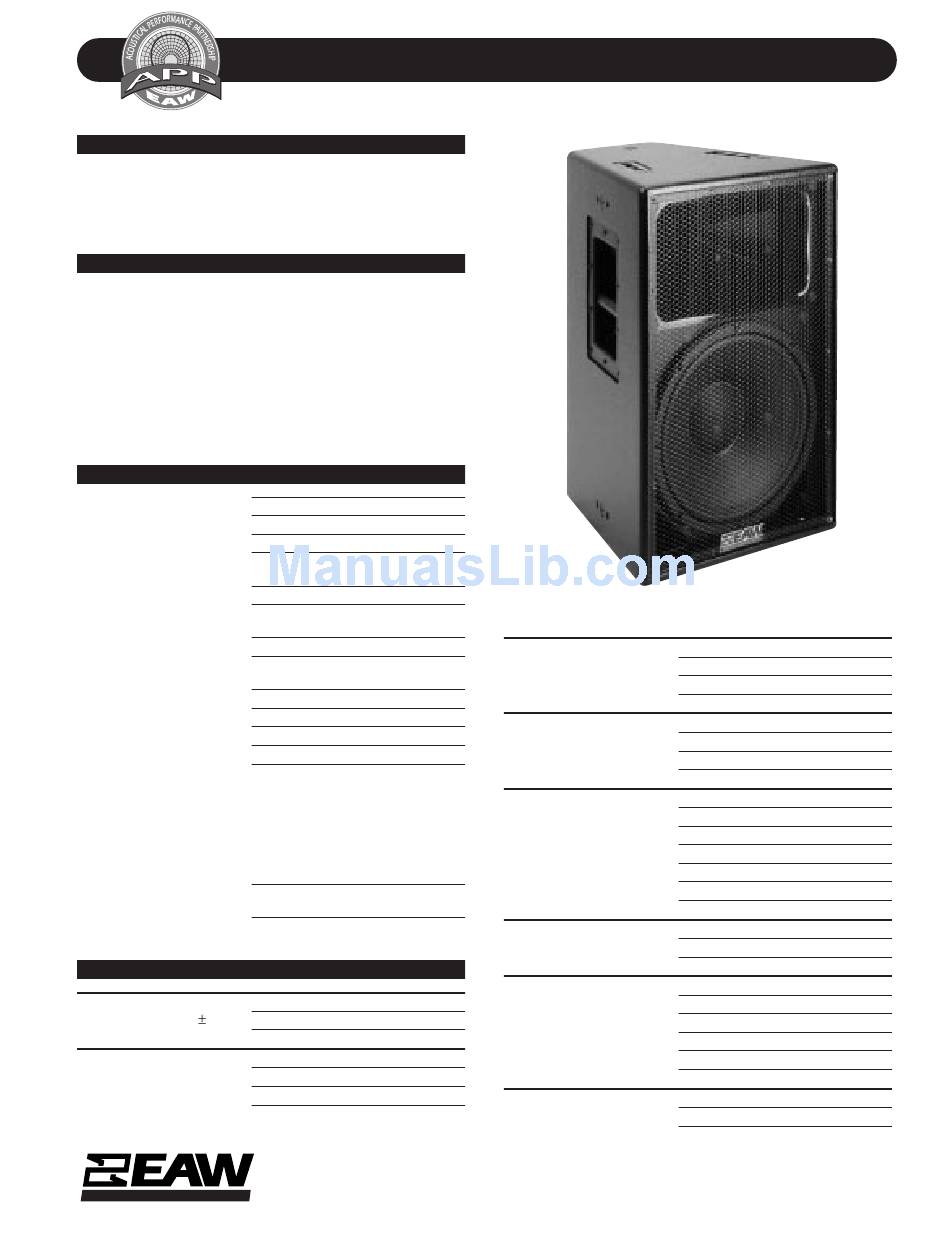

EAW JF260e Technical Specifications

DESCRIPTION
A 2-way full range system in a vented trapezoidal enclosure.
Includes a 12-in woofer and a 2-in exit compression driver
on a 60 x 45 constant directivity horn. Powering mode is
switchable: passive (LF/HF crossover) or biamplified.
APPLICATIONS
The JF260e offers concert-level output combined with natu-
ral, undistorted reproduction. Effective in portable or per-
manent nearfield applications requiring higher directivity.
Flytracks, mounting/suspension points, stand mount cup. Six
year warranty.
Applications include:
Band PA
Corporate Events
Live Music Clubs
DESCRIPTIVE DATA
Part Number 999062
Product Group J
LF Subsystem & Loading 1x 12-in, Vented
HF Subsystem & Loading 1x 2-in Exit Compression Driver on
Constant Directivity Horn
System Configuration 2-way, Full Range
Powering Configuration(s) Switchable: Full Range (passive
LF/HF crossover) or Biamplified
Controls (switches, knobs) Powering Mode Switch
Recommended High-Pass
Frequency (24 dB/Octave) 50Hz
Cabinet Type (shape) Trapezoidal
Enclosure Materials Baltic Birch Plywood
Finish Black Catalyzed Polyurethane
Connectors 2x Neutrik NL4 Speakon
Suspension Hardware (5) 3-Position Flytracks (2 each
top and bottom, 1 back)/(10)
3/8"-16 Threaded Mounting/
Suspension Points (3 each top and
bottom, 2 per side)/4 Threaded
Points for Omnimount Series 300
(back)/Recessed Cup for
Standmount (bottom)
Grill Foam Backed Vinyl Coated
Perforated Steel
Options 179001 Flyclip with ring
179002 Flyclip with hook
NOMINAL DATA
Frequency Response (Hz)
3 db 66Hz to 18kHz
-10 dB 55Hz
Axial Sensitivity (dB SPL/1 Watt/1m)
Full Range 98
Biamped LF 98
Biamped HF 106
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# JF260e 999062 (A)/2p/3/14/97 • Printed In USA
TECHNICAL SPECIFICATIONS JF260e
Ballroom Events
Small Theaters
Convention Centers
Impedance (Ohms)
Full Range Passive 8
Biamped LF 8
Biamped HF 12
Power Handling, AES Standard (Watts)
Full Range 500
Biamped LF 500
Biamped HF 200
Calculated Maximum Output (dB SPL, @ 1m)
Full Range Peak 131.0
Biamped LF Peak 131.0
Biamped HF Peak 135.0
Full Range Long Term 125.0
Biamped LF Long Term 125.0
Biamped HF Long Term 129.0
Nominal Coverage Angle / -6 dB points (degrees)
Horizontal 60
Vertical 45
Dimensions inches
Height 22.43
Width (Front) 14.85
Width (Rear) 6.95
Depth 14.75
Trapezoid Angle 15 degrees per side
Weights pounds kilograms
Net Weight 70
Shipping Weight 76
millimeters
570
377
176
375
31.5
34.2
