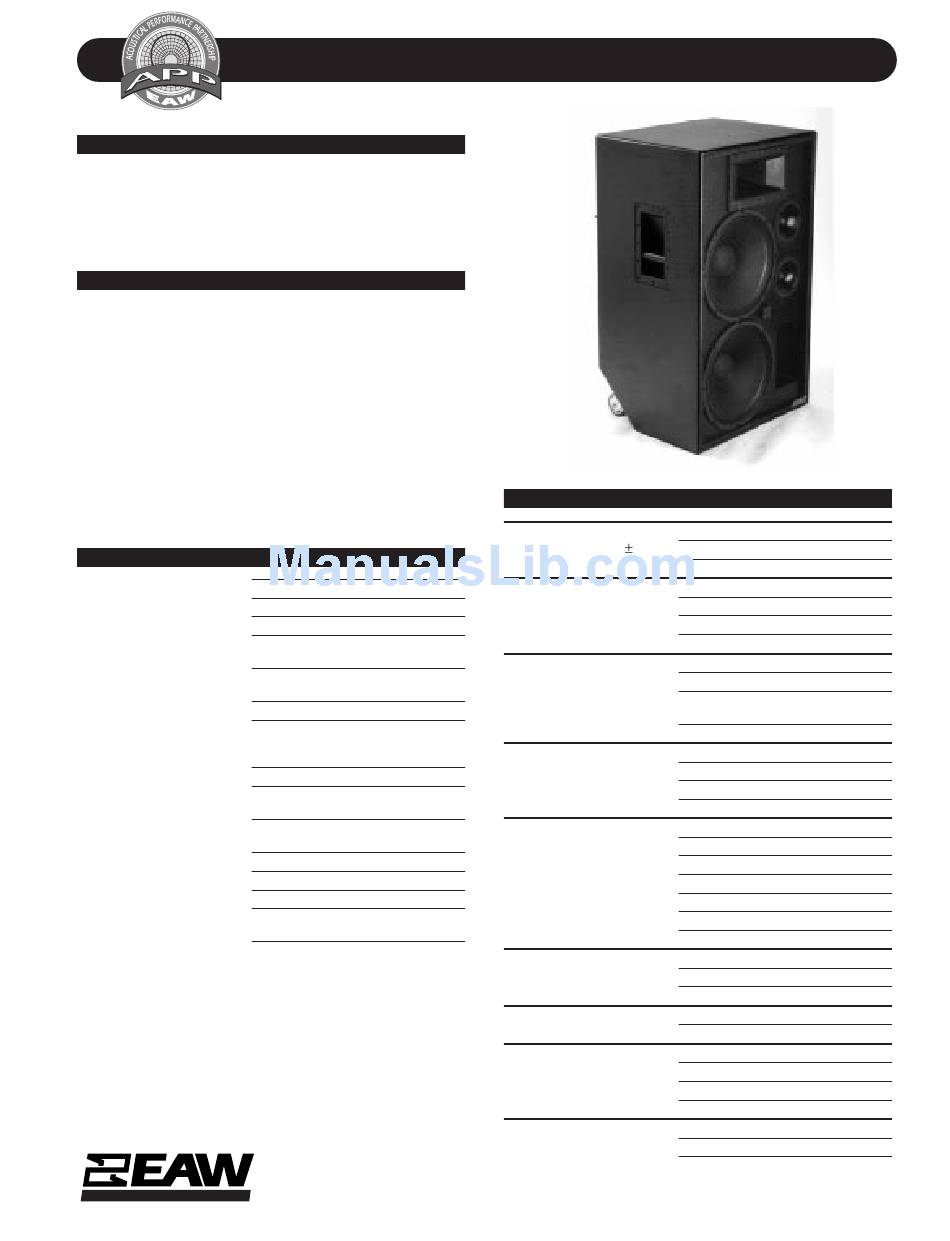

EAW FR253e Technical Specifications

DESCRIPTION
A 3-way full range system in a vented rectangular enclosure.
Includes 2x 15-in woofers, 2x 7-in midrange cones and a 1-
in exit compression driver on a 90 x 45 constant directivity
horn. Powering mode is switchable: passive (3-way cross-
over) or biamplified (passive MF/HF crossover).
APPLICATIONS
The FR253e provides high output full range response in a
versatile, compact system. True 3-way design dramatically
improves the quality of vocal reproduction. Effective for both
permanent and portable applications, it comes with handles,
permanent casters and 3/8"-16 threaded mounting/suspen-
sion points. Six Year Warranty.
Application include:
Band PA
Ballroom Events
Corporate Events
Small HOW's
Dance CLubs
Live Music Clubs
DESCRIPTIVE DATA
Part Number 999009
Product Group I
LF Subsystem & Loading 2x 15-in Vented
MF Subsystem & Loading 2x 7-in Cones in Sealed
Subenclosure
HF Subsystem & Loading 1x 1-in Exit Compression Driver on
Constant Directivity Horn
System Configuration 3-way, Full Range
Powering Configuration(s) Switchable: Full Range (passive LF/
MF/HF crossover) or Biamplified
(passive MF/HF crossover)
Controls (switches, knobs) Powering Mode Switch
Recommended High-Pass
Frequency (24 dB/Octave) 35Hz
Cabinet Type (shape) Rectangular, Built in wheels and
handles
Enclosure Materials Baltic Birch Plywood
Finish Black Catalyzed Polyurethane
Connectors 2x Neutrik NL4 Connectors
Suspension Hardware (2) 3/8"-16 Suspension points
(top)
Grill Vinyl Coated Perforated Steel
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# FR253e 999009 (A)/2p/3/14/97 • Printed In USA
TECHNICAL SPECIFICATIONS FR253e
NOMINAL DATA
Frequency Response (Hz)
Axial Sensitivity (dB SPL/1 Watt/1m)
LF (when Bi-Amped)
Impedance (Ohms)
Full Range Passive
(when Bi-Amped)
Biamped LF (when Bi-Amped)
Power Handling, AES Standard (Watts)
Calculated Maximum Output (dB SPL, @ 1m)
Biamped MF/HF Peak
Biamped LF Peak
Full Range Long Term
Biamped MF/HF long term
Biamped LF Long Term
Nominal Coverage Angle / -6 dB points (degrees)
Recommended Complementary Systems
Dimensions
Weights
Shipping Weight
3 db 45Hz to 17kHz
-10 dB 30Hz
Full Range 101
Biamped MF/HF 101
101
4
Biamped MF/HF
4
4
Full Range 600
Biamped MF/HF 600
Biamped LF 1000
Full Range Peak 134.8
134.8
137.0
128.8
128.8
131.0
Horizontal 90
Vertical 45
Sub SB528
inches millimeters
Height 40.5 1029
Width 24.5 622
Depth 19.75 502
pounds kilograms
Net Weight 155 70.5
160 72.8
