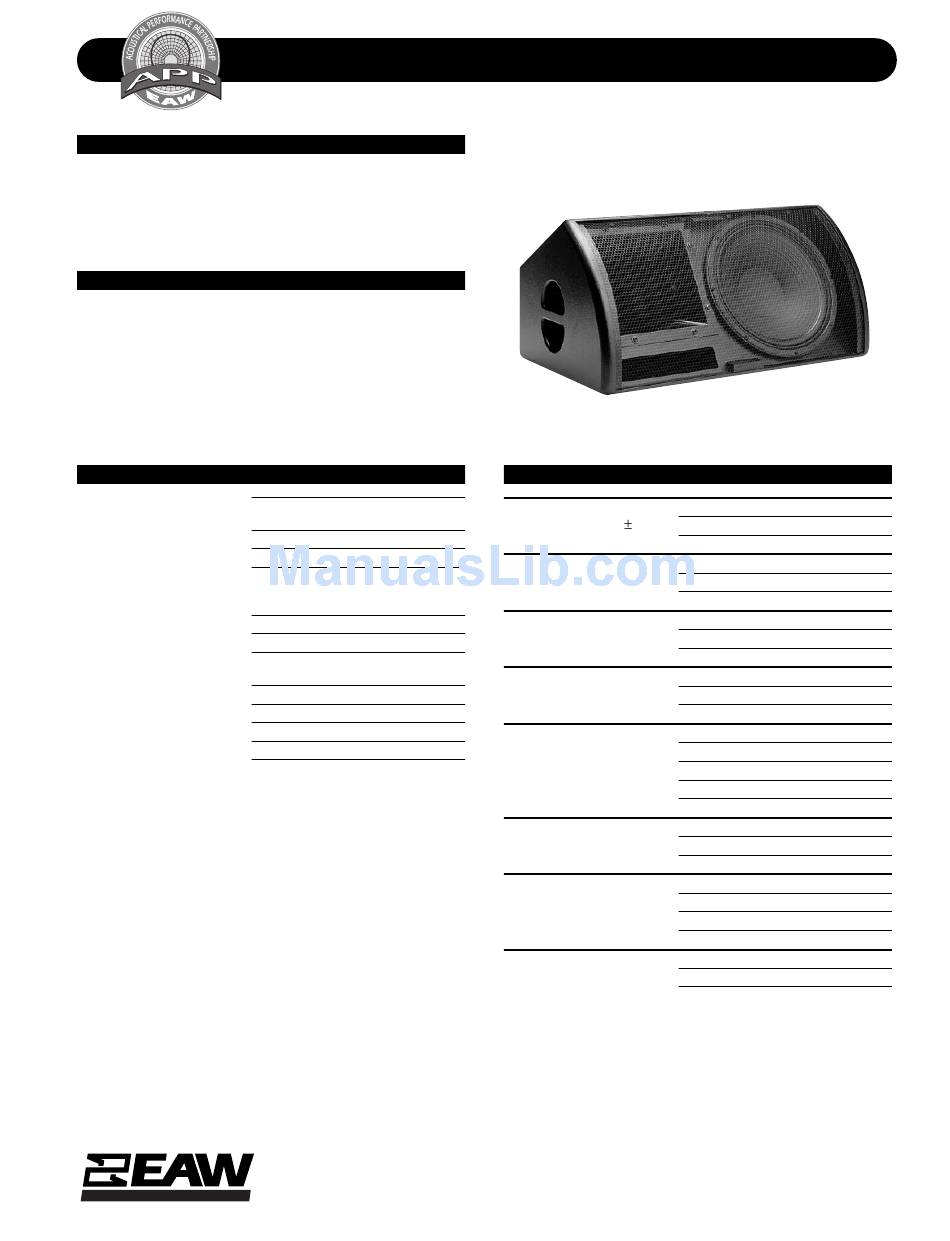

EAW JH15 Technical Specifications

DESCRIPTION

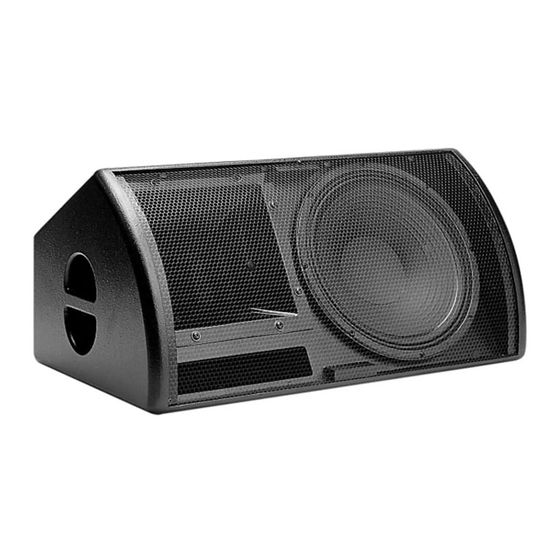

A 2-way biamplified full range floor monitor system avail-
able in left or right versions. Includes a 15-in woofer and a
1.4-in exit/44mm voice coil compression drivers on a 60 x
45 constant directivity horn. The powering mode is
biamplified. (Specify left or right.)
APPLICATIONS
The JH15 provides very high output, high definition sound
for any live performance foldback monitoring application.
Optimized power response provides a larger "sweet spot"
than typical monitor designs. Six year warranty.
Applications include:
Concert Touring
Live Music Clubs
Portable A/V
DESCRIPTIVE DATA
Part Number 999562 (Left)
999644 (Right)
Product Group S
LF Subsystem & Loading 1x 15-in, Vented
HF Subsystem & Loading 1x 1.4-in exit/44mm voice coil
Compression Driver on Constant
Directivity Horn
System Configuration 2-way, Full Range
Powering Mode Biamplified
Recommended High-Pass
Frequency (24 dB/Octave) 50 Hz
Cabinet Type (shape) Irregular Trapezoid (Floor Monitor)
Enclosure Materials Baltic Birch Plywood
Finish Black Polyurethane
Connectors 2x Neutrik NL4 Speakon
Grill Vinyl Coated Perforated Steel,
Arced
Acoustic Performance Partnership
EASTERN ACOUSTIC WORKS
One Main Street, Whitinsville MA, 01588 USA • Phone 508/234-6158 • Toll Free 800/992-5013 • Fax 508/234-8251 • Web http://www.eaw.com • email info@eaw.com
One Main Street, Whitinsville, MA 01588 • (508) 234 - 6158 • FAX (508) 234 - 8251 • Email info@eaw.com • Web http://www.eaw.com
EAW products are continually improved. All specifications are therefore subject to change without notice. • PUB# JH15 999562/999644 (0)/2p/01/28/98 • Printed In USA
TECHNICAL SPECIFICATIONS JH15
Left Shown
NOMINAL DATA
Frequency Response (1 Watt @ 1m)
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
Impedance (Ohms)
Power Handling, AES Standard (Watts)
Calculated Maximum Output (dB SPL @ 1m)
LF Long Term
HF Long Term
Nominal Coverage Angle/-6 dB points (degrees)
Dimensions
Weights
Shipping Weight
Eastern Acoustic Works
3 dB 70 Hz to 17 kHz
-10 dB 50 Hz
LF 99
HF 112
LF 8
HF 12
LF 800
HF 200
LF Peak 134.0
HF Peak 141.0
128.0
135.0
Horizontal 60
Vertical 45
inches millimeters
Height 15.25 387
Width 31.00 787
Depth 18.16 461
pounds kilograms
Net Weight 85 38.7
92 41.9
JH15
