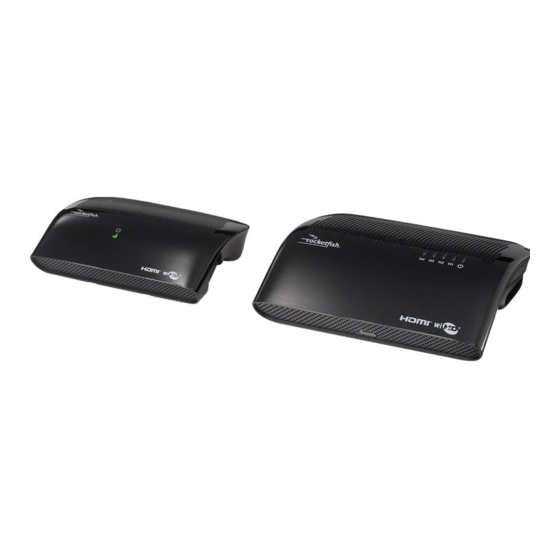

RocketFish RF-WHD200 User Manual

4-port wirelesshd kit
Hide thumbs Also See for RF-WHD200:

Advertisement

Quick Links

See also: User Manual
4-Port WirelessHD Kit
RF-WHD200
User Guide

Advertisement

loading
Need help?

Need help?

Do you have a question about the RF-WHD200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for RocketFish RF-WHD200

Summary of Contents for RocketFish RF-WHD200

  • Page 1 4-Port WirelessHD Kit RF-WHD200 User Guide...

  • Page 2: Table Of Contents

    Troubleshooting ............18 Legal notices ..............19 Warranty ................21 Introduction Congratulations on your purchase of this high-quality Rocketfish system, which represents the state of the art in 60 wireless transceiver design, and gives you complete freedom while enjoying your music or movies without the limitations of cables.

  • Page 3: Safety Information

    • Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. RF-WHD200...

  • Page 4: Features

    • Only use attachments or accessories specified by the manufacturer. • Unplug the included devices during lightning storms or when unused for long periods of time. • Refer all servicing to qualified service personnel. Servicing is required when a component of the kit has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
  • Page 5 HDMI 1—When the indicator is on (green) the HDMI port is in use. Receiver front/top panel Item Description Power and link status indicator (green) Blinking—The power is connected and the receiver is turned on. On—The transmitter and receiver are linked. Off—The power is off. RF-WHD200...
  • Page 6 Transmitter back panel Item Description DC IN jack—Connect the power adapter to this jack. Power switch—Turns the transmitter on or off. HDMI/WVAN switch— A quick press (<1 second) toggles the HDMI switch input to select the next HDMI input. A long press (>3 seconds) toggles WirelessHD output between one or more WirelessHD receivers in the same room.

  • Page 7: Remote Control

    HDMI 1-4 - Press to select the HDMI port for the signal source of your choice. Note: Remove the plastic film from the remote control before using it for the first time. Make sure you point the remote control at the WirelessHD transmitter. Plastic film RF-WHD200...

  • Page 8: Setting Up The Transmitter And Receiver

    Setting up the transmitter and receiver Mounting the receiver on a wall (optional - can also be placed on a flat, shelf-like surface) To mount the receiver on a wall: Drill holes through the mounting bracket into the wall where you want to mount your receiver.
  • Page 9 Top view Transmitter Side view 16.4 ft. (5 m) 47° 32.8 ft. (10 m) Receiver Transmitter 32.8 ft. (10 m) 47° 16.4 ft. (5 m) Floor 82° 82° 16.4 ft. (5 m) 16.4 ft. (5 m) Receiver RF-WHD200...
  • Page 10 Connect the media sources, such as a Blu-ray/DVD player, cable/satellite box, or gaming console to the transmitter with HDMI cables. Transmitter Game console HDMI cable Computer Connect the display device, such as a TV or projector, to the receiver with an HDMI cable.
  • Page 11 Note: When switching between the four HDMI ports, it is normal for the switching to take an average of about 10, and up to 15 seconds. The RF-WHD200 receiver will output a black video screen with no audio at 480p (720 x 480) resolution @ 60 Hz during the switching process.
  • Page 12 WVAN- Multiple transmitters to one receiver Each WirelessHD receiver forms its own WVAN on its own channel, and can support up to eight CEC-enabled source devices. When a WirelessHD receiver is first turned on, it searches for other WirelessHD networks, then it selects the best available WirelessHD channel that is not already in use.
  • Page 13 Similarly, when an HDMI-CEC enabled source device (such as a Blu-ray player) is connected to the WirelessHD transmitter and the WirelessHD receiver is connected to an HDMI-CEC enabled TV, pressing the Play button on the Blu-ray player's remote does the following: • Turns on the Blu-ray player RF-WHD200...
  • Page 14 WirelessHD function on your sources to switch between them. For example, without full TV support for CEC source switching, you may need to power off the Rocketfish WirelessHD transmitter in order to be able to switch to a laptop with embedded WirelessHD.

  • Page 15: Specifications

    59.94/60 Hz YCbCr 4:2:2 24/30 bits 480p 4:4:4 24/30 bits 4:4:4 24/30 bits 50 Hz YCbCr 4:2:2 24/30 bits 576i 4:4:4 24/30 bits 4:4:4 24/30 bits 50 Hz YCbCr 4:2:2 24/30 bits 576p 4:4:4 24/30 bits 4:4:4 24/30 bits RF-WHD200...
  • Page 16 Video Vertical Color Sampling Bits/pixel format refresh space 50 Hz YCbCr 4:2:2 24/30 bits 4:4:4 24/30 bits 4:4:4 24/30 bits 720p 59.94/60 Hz YCbCr 4:2:2 24/30 bits 4:4:4 24/30 bits 4:4:4 24/30 bits 50 Hz YCbCr 4:2:2 24/30 bits 4:4:4 24/30 bits 4:4:4 24/30 bits...
  • Page 17 Multiple of Fs LPCM 2-channel DTS and Dolby Digital 2/6 channels 32 kHz 44.1 kHz 48 kHz 88.2 kHz 96 kHz 176.4 kHz 192 kHz 4.096 5.645 6.144 11.29 12.288 22.579 24.576 8.192 11.29 12.288 22.579 24.576 45.158 49.152 RF-WHD200...

  • Page 18: Troubleshooting

    Therefore, the TV/Projector may not be set to the HDMI input jack that the RF-WHD200 Receiver unit is connected to. Refer to the documentation provided with your TV/Projector for information on how to select the correct input.

  • Page 19: Legal Notices

    Cet appareil numérique de la classe B conforme á la norme NMB-003 et RSS-210 du Canada. Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. RF-WHD200...
  • Page 20 EU Declaration of Conformity (DoC) Hereby, Abocom Systems, Inc., declares that this device is in compliance with the essential requirements and other relevant provisions of the R&TTE Directive 1999/5/EC. LVD, EMC, EMF, Radio as attested by conformity with the following harmonized standards: EN 60950-1:2001+A11:2004 EN 60065:2002+A1:2006 EN 301 489-1 V1.8.1 (2008-04)

  • Page 21: Warranty

    Product is determined to be defective by an authorized Rocketfish repair center or store personnel, Rocketfish will (at its sole option): (1) repair the Product with new or rebuilt parts; or (2) replace the Product at no charge with new or rebuilt comparable products or parts. Products and parts replaced under this warranty become the property of Rocketfish and are not returned to you.
  • Page 22 Damage due to incorrect operation or maintenance • Connection to an incorrect voltage supply • Attempted repair by anyone other than a facility authorized by Rocketfish to service the Product • Products sold as is or with all faults •...
  • Page 23 Distributed by Best Buy Purchasing, LLC 7601 Penn Avenue South, Richfield, MN 55423-3645 USA © 2010 BBY Solutions, Inc. All rights reserved. ROCKETFISH is a trademark of BBY Solutions, Inc. All other products and brand names are trademarks of their respective owners. 10-0766...
