RocketFish RF-G1182 Quick Setup Manual

Package contents

Features

• HDMI splitter
• Sends HDMI A/V signals from a single source,
• AC power adapter
• Quick Setup Guide
• Supports full 1080p video resolution
• Supports 3D video

You will need:

• Compatible with most TV and PC monitor
• High-speed HDMI cables,
such as Rocketfish,
• Gold-plated connectors for maximum signal
available in 6' - 24' lengths.
• Supports HDMI CEC commands for remote

HDMI splitter basics

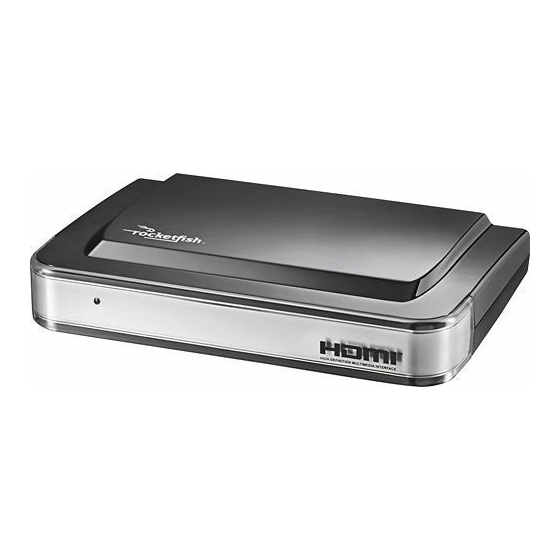

This Rocketfish two-way HDMI splitter will send HDMI audio and video signals
from a single source, such as a Blu-ray/DVD player or cable/satellite box, to two
destinations, such as a TV and A/V receiver. It is ideal for sending audio signals
from a 3D Blu-ray player to an A/V receiver that does not support 3D video
pass-through, and a 3D TV.
Front
Power LED
HDMI IN HDMI OUT 1 HDMI OUT 2
Back
IN
NOTE: If you want to watch 3D sources, make sure that your TV or projector supports the same HDMI 3D video
format as your sources. A 3D image cannot be delivered to a TV or projector that does not support 3D video formats.
You also need to use HDMI cables that are compatible with 3D video, such as Rocketfish high-speed HDMI cables.
such as a Blu-ray/DVD player or set-top box to
two destinations, such as a TV and A/V receiver
video resolutions
transfer and corrosion resistance
control functionality
TM
DC power
5V/1A
5V 1A
OUT1 OUT2
QUICK SETUP GUIDE
RF-G1182, 2-way HDMI Splitter

Setting up your HDMI splitter

1 Connect one end of a high-speed HDMI cable (not included) to your video
source and the other end to the IN port on the HDMI splitter.
2 Connect one end of another high-speed HDMI cable to your HDMI splitter's
OUT 1 port, then connect the other end of the HDMI cable to the IN port of a
destination component, such as an A/V receiver, projector, or HDTV.*
3 Connect one end of another high-speed HDMI cable to your HDMI splitter's
OUT 2 port, then connect the other end of the HDMI cable to the IN port of
another destination component, such as an A/V receiver, projector, or HDTV.
4 Connect the included AC adapter to the DC jack on the HDMI splitter and a
standard 110/120V AC outlet. The LED indicator lights green. Turn on all
connected devices and operate.
*When connecting one source device to two displays, make sure the display with the lowest resolution capability is
connected to OUT 1 on the splitter. When connecting one source device to one display and an A/V receiver, make
sure the display is connected to OUT 1 on the splitter. The splitter recognizes the EDID (extended display
identification data) from the display connected to OUT 1.

Connecting 1 component to AV receiver and display

HD TV
Cable/Satellite
Box
Game
Console
OR
HDMI
Blu-ray
Player
IN

Connecting 1 component to 2 displays

HD TV
Cable/Satellite
Box
Game
Console
OR
HDMI
Blu-ray
Player
IN
AV Receiver
DC connector
HDMI HDMI
5V 1A
OUT1 OUT2
DC connector
HDMI HDMI
5V 1A
OUT1 OUT2
Projector
