Method B - To permanently connect to house-
hold or field wiring:
1. Remove the dishwasher electrical supply junction box
cover and connect to the power supply cord from the
house installation. See Figure 5.

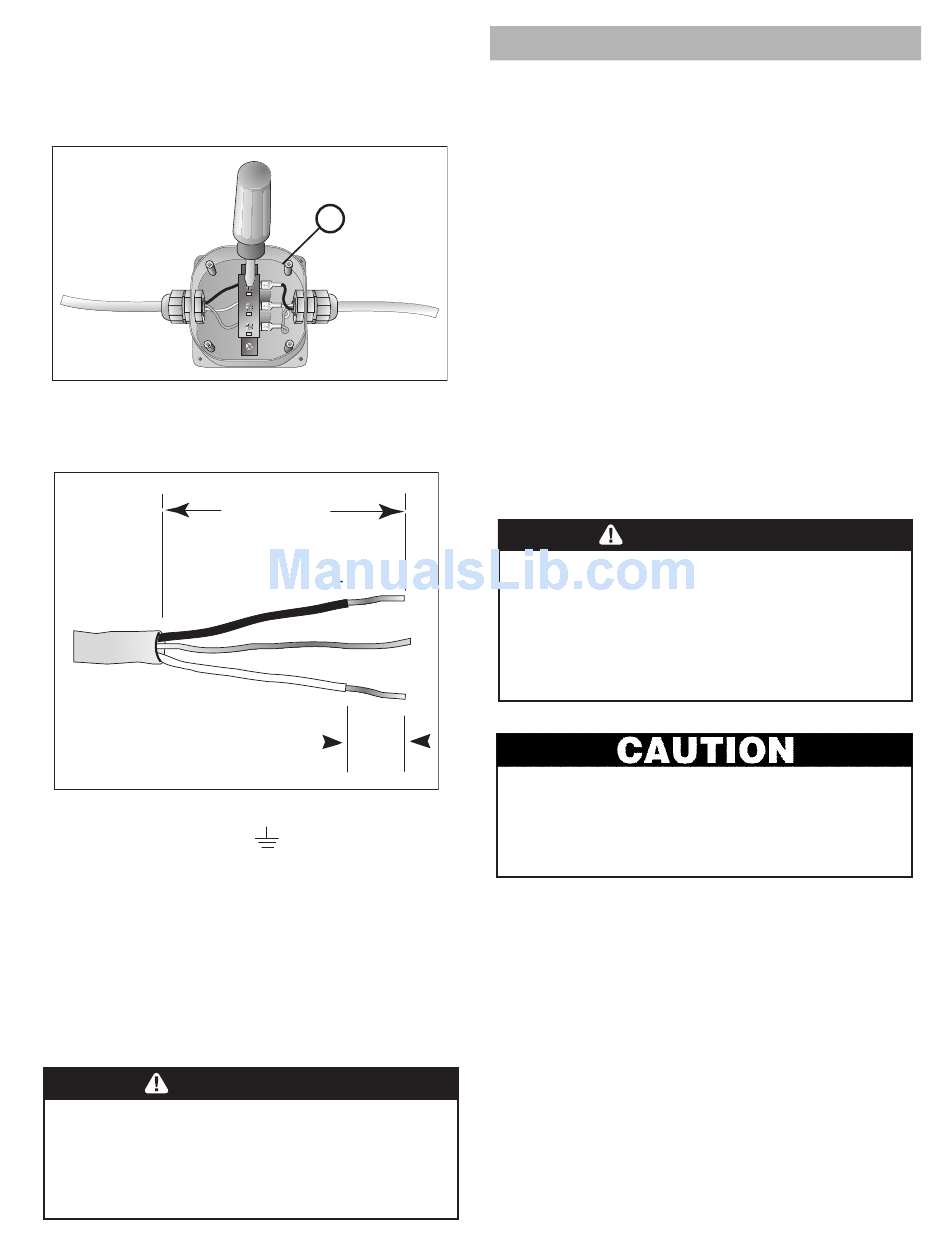

Figure 5
2. Remove 2" to 3" (51 - 76mm) of the outer casing of the
household or field supply wiring as shown in Figure 6.
Remove 3/8" to 1/2" (10 - 13mm) of the insulation from
each wire as shown in Figure 6.
Figure 6
(51mm - 76mm)
3/8" - 1/2"
(10mm - 13mm)
3. Insert the bare copper or green wire(ground) to the
"G" ground connection "
and securely tighten the terminal block screw (see
Figure 5).
4. Insert the white (neutral) wire to the "N" connection of
the terminal block and securely tighten the terminal block
screw.
5. Insert the black(hot) wire to the "L" connection of the
terminal block and securely tighten the terminal block
screw.
6. Check all electrical connections to make sure they are
secure and then attach the junction box cover with the 4
screws.
WARNING
Avoid Electrical Shock Hazard
To avoid possible injury or property damage,
care should be exercised when the dishwasher is
installed or removed to reduce the likelihood of
damage to the power cord.
L
2" - 3"
" of the terminal block
Inlet Water Connections
Hot Water Supply
The hot water heater should be set to deliver approximately
120° F (49° C) water to the dishwasher. Water that is too hot
can cause some detergents to lose effectiveness. Lower water
temperatures will increase run times. The hot water supply
pressure must be between 15 - 145 psi (1 - 10 bar).

IMPORTANT NOTES:

If using a solder joint instead of a compression fitting, be
sure to make all solder connections before connecting
the water supply line to the dishwasher.
Make sure there are no sharp bends or kinks in the water
line that might restrict water flow.
Always use the appropriate seal when making plumbing
connections.
Before connecting the water supply line to the dish-
washer, flush the incoming water line for approximately
5 minutes to clear any foreign material.
Turn on the water supply and check for leaks after
connections are made.
WARNING
Avoid Scald Hazard
Do not perform any work on a charged hot water
line. Serious injury could result. Only qualified
plumbers should perform plumbing work. Do not
attempt any work on the dishwasher hot water
supply plumbing until you are certain the hot water
supply is shut off.
Temperatures required for soldering and sweat-
ing will damage the dishwasher. If plumbing lines
are to be soldered or sweated, keep the heat
source at least 6 inches (152.4 mm) away from
the dishwasher.
Connecting the Hot Water Supply
There are two plastic corrugated hoses that exit the back of
the dishwasher. The larger hose, with the brass fitting on the
end, is the water supply hose to the dishwasher (the other
hose is the dishwasher drain hose). You will need a 3" x 1
(76 x 45mm) opening through the cabinet to pass the dish-
washer water supply line through toward the shut off valve.
3
/
"
4
8
