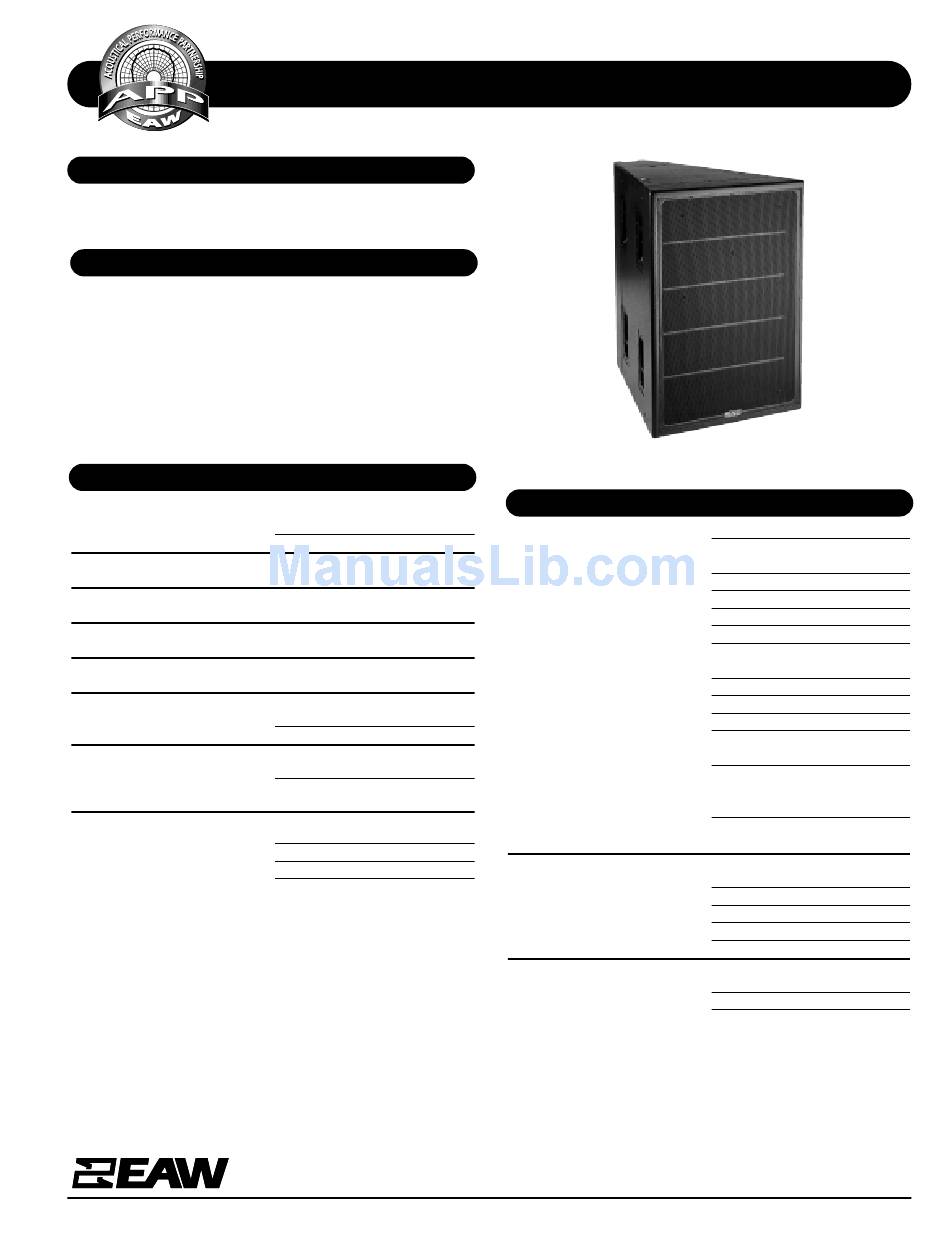

EAW KF910 Specifications

DESCRIPTION

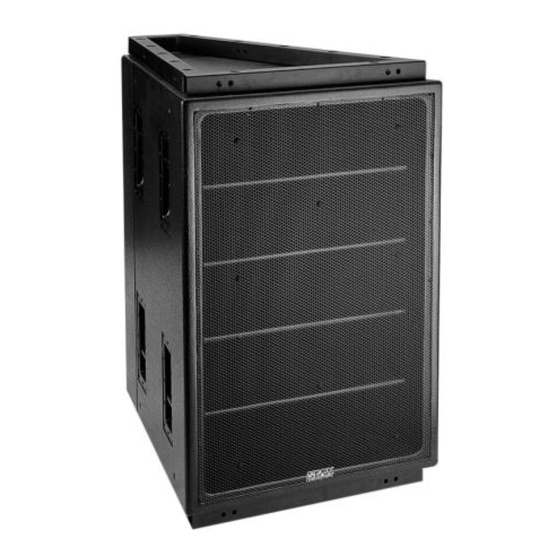

A dedicated PPST long throw high frequency system in a
trapezoidal enclosure. Includes 5x 2-in exit compression driv-
ers on SimplePhase™ horns.
APPLICATION
The KF910 PPST long throw HF module is engineered for use
in KF900 Series arrays. It provides HF coverage from 0° to 15°
below the array. It is engineered to provide extended high fre-
quency response at distances in excess of 600 ft. KF900 Series
modules can only be used in arrays and must be integrated
with complex PPST processing. Six year warranty.
Applications include:
Stadiums Concert Tours
PERFORMANCE
Frequency Response (1 Watt @ 1m)
±3 dB
-10 dB
Efficiency/Axial Sensitivity (dB SPL, 1 Watt @ 1m)
HF
Impedance (Ohm)
HF
Power Handling, AES Standard (Watts)
HF
Recommended Amplifier Power (Watts)
HF
Calculated Maximum Output (dB SPL)
HF Peak
HF Long Term
Nominal Coverage Angle/-6 dB points (degrees)
Horizontal
Vertical
Recommended Complementary Systems
Sub
LF
Mid/High
