EAW KF913 Specifications

FEATURES
• Medium throw/downfill HF Phased PointSource
Technology™ module
• 3x 2-in HF on separate SimplePhase™ horns
• PPST™ systems build arrays for the largest spaces
• Pre-configured DSP defines coverage by integrating
cells and modules to fit its application
• P (install) or F (portable) versions available
DESCRIPTION
A dedicated PPST™ medium throw/downfill high frequency
system in a trapezoidal enclosure. Includes 3x 2-in exit com-
pression drivers on SimplePhase™ horns.
APPLICATION
The KF913 PPST™ downfill HF module is engineered for use in
KF900 Series arrays. It provides HF coverage from -0° to -60°
below the array. KF900 Series modules can only be used in
arrays and must be integrated with complex PPST processing.
Six year warranty.
Applications include:
Stadiums Concert Tours
PERFORMANCE
Frequency Response (1 Watt @ 1m)
±3 dB 500 Hz to 14 kHz
-10 dB 400 Hz to 16 kHz
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
HF 114
Impedance (Ohm)
HF 3x 8
Power Handling, AES Standards (Watts)
Recommended Amplifier Power (Watts)
HF (MF/HF) 3x 400
Calculated Maximum Output (dB SPL @ 1m)
HF Peak 148.0
HF Long Term 141.0
Nominal Coverage Angle, -6 dB Points (degrees)
Horizontal 30
Vertical Beam profile adjustable via
Recommended High-Pass Frequency
24 dB/Octave 1250 Hz, 500 Hz Minimum
Recommended Complementary Systems
Sub KF940
Mid/High KF920/KF910
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
3x 200
PPST™ processing
LF KF930
508 234 6158
SPECIFICATIONS KF913
PHYSICAL
HF Subsystem 3X 2-in exit compression drivers
System Crossover 800 Hz to 1300 Hz
Controls (switches, knobs) None
Cabinet Type (shape) Trapezoidal
Enclosure Materials Baltic birch plywood
Suspension Hardware (16) 3/8"-16 threaded mounting
Dimensions
Trapezoid Angle 15° per Side
Weights
Shipping Weight 266
Toll Free 800 992 5013 FAX 508 234 8251
KF913/888058(B)/2 pp

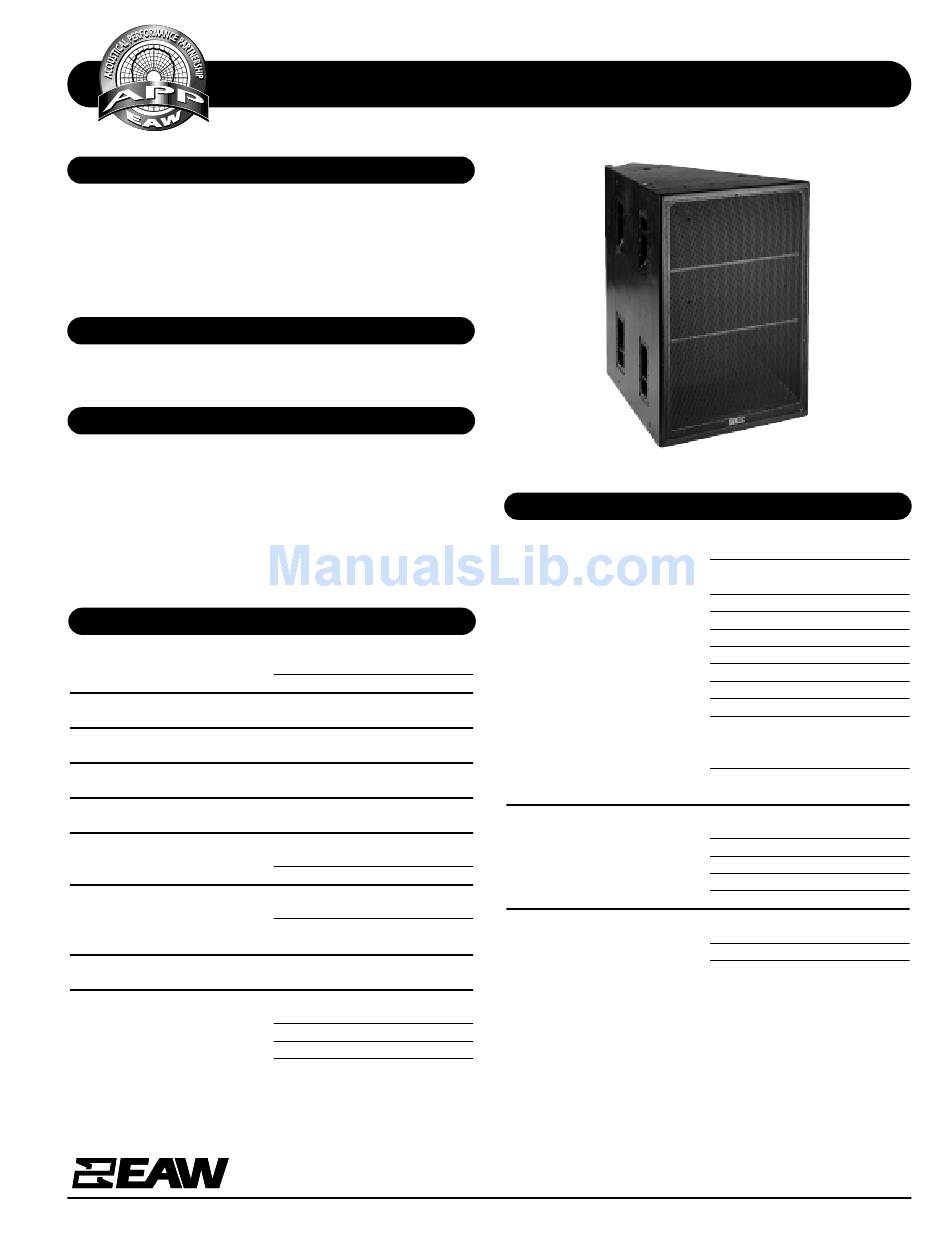

Prototype shown with temporary hardware
on 30° (H) SimplePhase horns
Configuration Dedicated HF, medium throw,
downfill
Powering Active processing
Finish Black catalyzed polyurethane
Connectors One each male and female AP6
points (4 each top, bottom and
sides)
Grille Vinyl coated perforated steel,
foam backed
inches
Height 46.00
Width (front) 30.00
Width (rear) 8.56
Depth 40.00
pounds
Net Weight 258
info@eaw.com
5/1/00
millimeters
1168
762
217
1016
kilograms
117.4
121.0
www.eaw.com
Printed in USA
