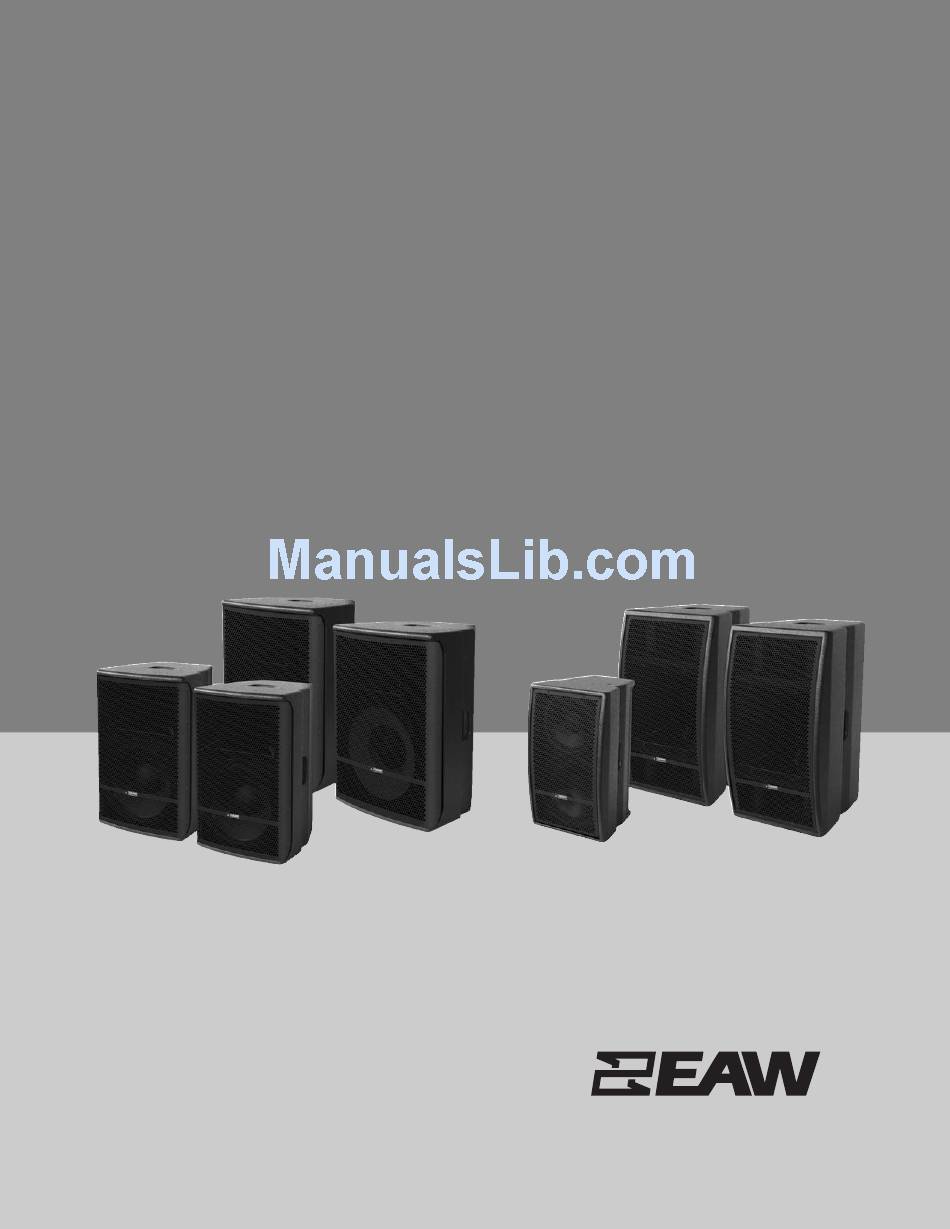

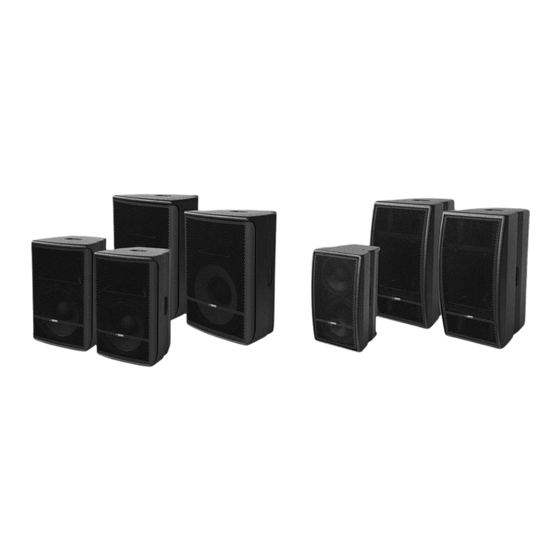

  • Page 1 a n d S E R I E S O W N E R ’ S M A N U A L F U L L - R A N G E L O U D S P E A K E R S...

  • Page 2: Section 1 Safety Precautions - Read This First

    Lisez et respectez toutes les consignes de sécurité et les mises en garde fournies dans le manuel des enceintes EAW avant d'utiliser ce produit. Le non-respect de ces consignes et mises en garde peut entraîner des dommages aux équipements et des accidents aux personnes pouvant être fatals.

  • Page 3: Precauciones De Seguridad - Lea Esto Primero

    Lea y observe todos los avisos e instrucciones de seguridad que aparecen en el "Manual de altavoces EAW" adjunto antes de usar este aparato. El no observar esta precaución puede dar lugar a averías en el aparato, daños en las personas o incluso la muerte.

  • Page 4: Fcc Compliance

    THIS PAGE LEFT INTENTIONALLY BLANK Director of Compliance Fax: +1 425 487 4337 LOUD Technologies Inc. e-mail: info@eaw.com Issued: February, 2008 FCC Compliance This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules.

  • Page 5: Table Of Contents

    C O N T E N T S Section Safety Precautions - READ THIS FIRST Safety Instructions ......... . 2 CONSIGNES DE SÉCURITÉ...

  • Page 6: Contents

    Nema 15R plug 230 V - Neutrik PowerCon to male Schuko plug Series Owner's Manual (this document) EAW Loudspeaker Owner's Manual Warranty Card Section 3 Quick Star t If you are in a hurry or are knowledgeable about using powered loudspeakers, these Quick Start instructions provide the details particular to the JF Series loudspeakers.

  • Page 7: Control Panel

    INPUT LEVEL ELECTRONIC AMPLIFIER AUDIO INPUT INPUT SELECTOR AUDIO LOOP STANDBY / ENABLE STATUS STATUS CONNECTOR SWITCH & THROUGH CONTACTS INDICATORS INDICATOR INDICATORS CONNECTOR INPUT SELECT AMPLIFIER STATUS ALL ON = U-NET INPUT FLASHING = USER DSP ENABLE CONSTANT = USER DSP DISABLE GREEN = NORMAL RED CONSTANT = FAULT AES/EBU...

  • Page 8: 3.1.1 Button Press/Hold Features

    INPUT AMPLIFIER AUDIO LOOP AUDIO INPUT HIGH PASS FILTER U-NET I/O SELECTOR STATUS THROUGH CONNECTOR SWITCH & CONNECTORS SWITCH & INDICATOR CONNECTOR INDICATORS INDICATORS AC MAINS INPUT LEVEL MODE AC LOOP ELECTRONIC AC LOOP INPUT STATUS SWITCH & CIRCUIT PORT STANDBY / ENABLE INDICATORS BREAKER...

  • Page 9: Initial Control Settings

    On power up: Hold Input Select and High Pass Filter buttons --- reset all settings to factory default (all user settings will be overwritten) Hold Mode buttons --- put into boot mode (only used for troubleshooting) 3 . 2 I n i t i a l C o n t r o l S e t t i n g s Use these nominal settings for the rear panel switches.

  • Page 10: Section Overview

    Section 4 Over view This loudspeaker is intended for professional use. The construction, components, and hardware have been designed to provide robust, reliable performance for its intended application. Please ensure that you fully understand proper installation and operation before use. 4 .

  • Page 11: Section 5 Physical Installation

    M o u n t i n g / R i g g i n g Read and heed all warnings and safety instructions in the supplied "EAW Loudspeaker Manual" before using this product. Failure to follow this precaution may result in equipment damage, personal injury, or death.

  • Page 12: 5.3.1 Vertical Array

    S o f t w a r e P r o g r a m 5.4.1 EAWPILOT EAWPilot is software for controlling the digital signal processing (DSP) for multiple EAW products. Use the EAWPilot to apply user-adjustable signal processing to the overall array. The interface provides standard DSP functions, including parametric equalization, high/low shelving, low- and high-pass filtering, level, and signal delay.

  • Page 13: Digital Signal Input Connection

    The two, identical, locking Neutrik EtherCon connectors on the rear of each JF combine a RJ45 connector with a locking shell. They are designed for connecting EAW’s audio and control signals between additional JF s and other U-Net enabled devices. Either connector may be used as the ports are bi-directional.

  • Page 14: System Gain

    AC MAINS SUPPLY WARNING: Read all instruction and cautionary notes concerning electrical power in the “EAW Loudspeaker Manual”. DANGER: Ensure that the AC mains voltage matches the voltage rating listed on the loudspeaker next to the AC Mains connector. DO NOT APPLY...

  • Page 15: Fuente De Alimentacion

    FUENTE DE ALIMENTACIÓN PRECAUCION: Lea todas las instrucciones y advertencias relativas a la corriente eléctrica que aparecen en el manual de altavoces EAW. PELIGRO: Asegúrese que el voltaje de la salida de corriente coincida co el que aparece indicado en el propio altavoz al lado del conector de entrada de corriente. NO APLIQUE UN VOLTAJE DE 230 V SI SU ALTAVOZ FUNCIONA CON UN VOLTAJE DE ENTRADA DE 115 V.

  • Page 16: Cordon Secteur

    CAUTION: The supplied AC mains plug may not be appropriate for local AC mains receptacles. If not, have a qualified electrician remove the existing AC mains plug and install a plug appropriate for the AC mains supply receptacle and following all local codes. WARNING: Ensure that AC power supply has a properly grounded safety ground.

  • Page 17: Ac Loop Connector (Kf200 Nt Only)

    VORSICHT: Das mitgelieferte Netzkabel besitzt möglicherweise einen etzstecker, der nicht in Ihre Steckdose passt. In diesem Fall können Sie sich von einem zugelassenen Elektrobetrieb einen passenden Netzstecker unter Berücksichtigung der jeweils gültigen Vorschriften montieren lassen. WARNUNG: Stellen Sie sicher, dass er Schutzleiter der Netzsteckdose ein gute Verbindung zur Erde hat.

  • Page 18: Section 7 Operation

    Section 7 Operation 7 . 1 O p e r a t i n g L i m i t s While the JF processing includes robust driver and amplifier protection algorithms and circuits, it is ultimately the responsibility of the audio system operator to operate the loudspeakers within their capabilities.

  • Page 19: Amplifier Status

    CAUTION: Electronic limiters cannot provide absolute protection against driver failure. Thus, if limiting is occurring, it is a warning that excessive signal levels are being approached. It is NOT an indication that the loudspeaker is successfully protecting itself. 7.3.4 AMPLIFIER STATUS The AMPLIFIER STATUS indicator monitors the status of each of the two amplifiers in the full- range and subwoofer models.

  • Page 20: Limiters

    and U-Net Send), as well as System Gain and Rear Speaker DSP settings for each individual loudspeaker. 7.4.2 LIMITERS loudspeakers have built-in, factory-set limiting. The limiter characteristics and settings were determined to provide the maximum protection possible, to minimize the sonic effects, and to integrate closely with the amplifier capabilities.

  • Page 21: Operating Controls

    Connect one of the U-Net ports on the UX8800’s rear panel to a U-Net port on the JF . If there are more than one Ethernet , connect the other U-Net port EAWPILOT on the JF to the next JF and so on.

  • Page 22: Standby Jumper

    7.6.2 STANDBY JUMPER Use these dry contacts to remotely control the operational status of the loudspeaker’s electronics. Short the contacts to place the amplifiers in standby mode. This disables the high voltage rails powering the amplifiers, muting the system and reducing power consumption when the system is not being used.

  • Page 23: Section 8 Maintenance And Service

    These include the drivers and amplifier module. All other service and repair information must be obtained by contacting the EAW Service Department or the service department of the EAW Distributor for your country. See the “EAW Loudspeaker Manual”...

  • Page 24: Field Troubleshooting

    8 . 3 F i e l d Tr o u b l e s h o o t i n g See the “EAW Loudspeaker Manual” for field troubleshooting procedures. 8 . 4 D r i v e r S e r v i c e 8.4.1...

  • Page 25: Kf200 Nt

    IMPORTANT: When reconnecting the signal wires to the driver, connect the colored wire to the plus (+) terminal and the black wire to the (-) minus terminal. 8.4.3 KF200X The drivers can be field serviced by replacing the entire driver or having the driver repaired (such as diaphragm replacement) by a qualified service technician.

  • Page 26: Replacing The Kf200 Nt Amplifier Module

    Turn the mounting screw clockwise, pushing against the loudspeaker and forcing the amplifier’s corner out. If the amplifier remains fixed to the gasket it may be necessary to jack another corner away from the loudspeaker. Once free, carefully lift the amplifier from the loudspeaker ELECTRICAL LEAD COUPLING and disconnect the electrical leads at the coupling.

  • Page 27: Block Diagram

    Section 9 Block Diagram B l o c k D i a g r a m This is a block diagram of an JF Full-Range with an JF subwoofer. A full-range input signal is connected to the full-range loudspeaker and looped through to the subwoofer, as shown. Alternately, the full-range input can be connected to the subwoofer and looped through to the full-range loudspeaker.
