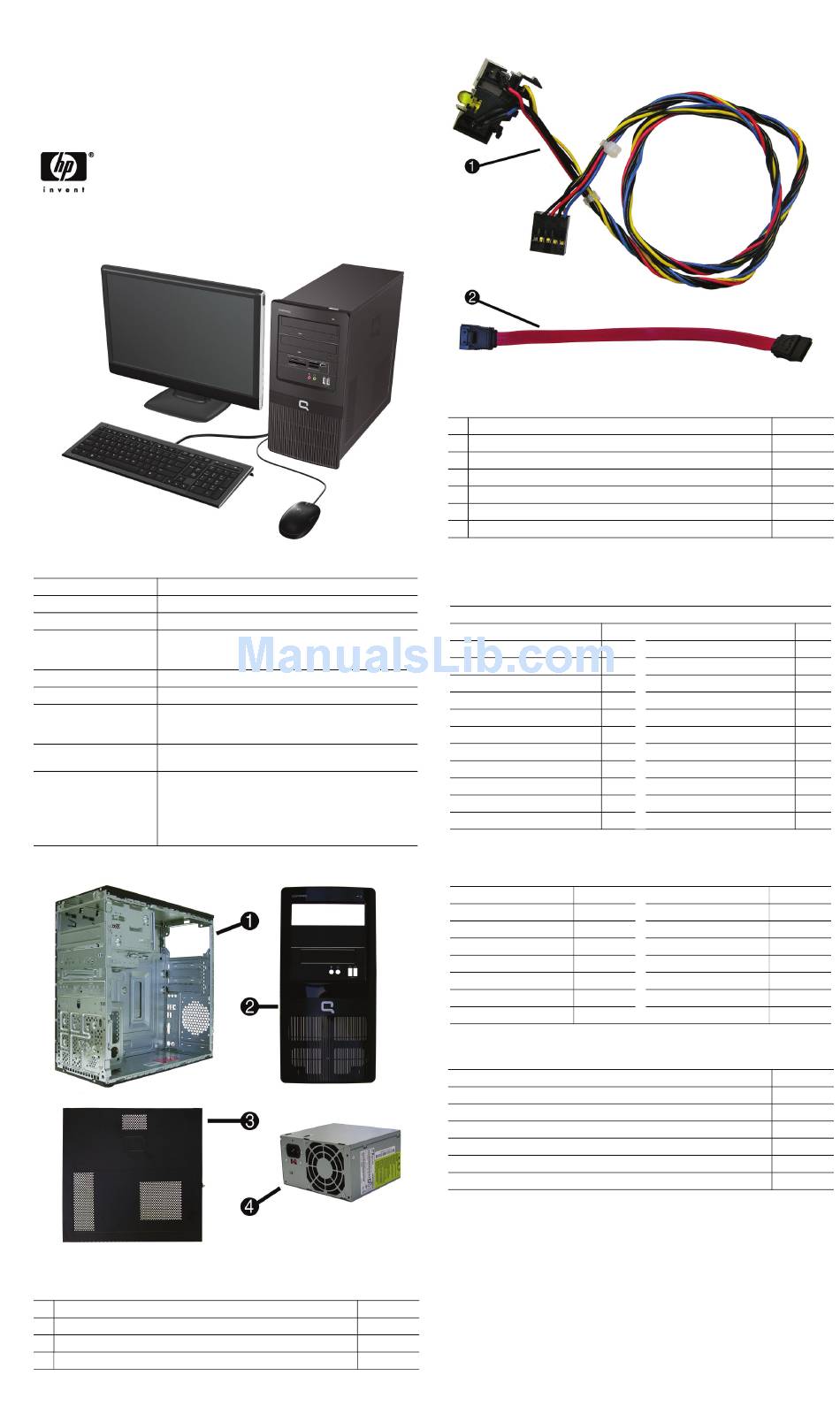

HP dx1000 Illustrated Parts & Service Map

Illustrated Parts & Service Map
Compaq dx1000 Microtower PC
©
2009 Hewlett-Packard Development Company, L.P. The information con-
tained herein is subject to change without notice. HP shall not be liable for
technical or editorial errors or omissions contained herein. Intel, Celeron,
Core 2 Duo, Pentium, and the Intel logo are trademarks or registered trade-
marks of the Intel Corporation and its subsidiaries in the U. S. and other coun-
tries.
Document Number 571402-001.
Key Specifications
Processor Type Intel® Core™ 2, Pentium®, Celeron®, Celeron Dual Core
RAM Type DDR2-SDRAM DIMMs, PC2-6400 (800 MHz) non-ECC
Maximum RAM Supported 4 GB
Expansion Slots •
•
•
Graphics Adapter Intel Graphics Media Accelerator (GMA)
Chipset Intel G31 Express
Drive Support •
•
•
I/O Interfaces USB 2.0 (8 total, 2 internal), RJ-45, audio in, audio out, PS/2
ports (2), mic, VGA
Operating Systems •
•
•
•
•

Spare Parts

System Unit
1 Chassis
2 Front bezel
3 Access panel
4 Power supply, 250W, PFC
dx1000 Illustrated Parts & Service Map
1st Edition May 2009.
1 PCIe-x16
2 PCIe-x1
1 PCI 2.3 (full height)
(2) 5.25-inch external bays
(1) 3.5-inch external bay
(2) 3.5-inch internal bays
Windows Vista Business 32
Windows Vista Home Basic 32
Windows Vista Home Premium
Windows Vista Business with downgrade to Windows XP
Professional custom installed
FreeDOS
Cables
1 Power switch/LED cable assembly
2 SATA cable, 6.5 inch, latch on end
* SATA cable, 10 inch, 2 straight ends
* SATA hard drive cable, 4 inch, latch on end
* DMS-59 to dual VGA cable
* Diskette drive cable
* Modem RJ-11 cable
*Not shown
Keyboards (not illustrated)
USB, Basic
Arabic
Belgian
Czech/Slovokian
Czech
Dutch
French
French Arabic
German
Greek
Hebrew
International, generic
Italian
Modem RJ-11 adapters (not illustrated)
Belgian
Czechoslovakian
French
German
Greek
Hungarian
Israel
Italian
Mass Storage Devices (not illustrated)
16X SATA DVD±RW and CD-RW drive with LightScribe
16X SATA DVD-ROM drive
500 GB SATA hard drive
320 GB SATA hard drive
250 GB, 7200-RPM SATA hard drive, 8-MB cache
160 GB, 7200-RPM SATA hard drive, 8-MB cache
80 GB, 7200-RPM SATA hard drive, 8-MB cache
not spared
570582-001
570581-001
449205-001
571402-001
537923-xxx
-171 Nordic
-381 Polish
-CG1 Portuguese
-221 Russian
-331 Slovakian
-051 Spanish
-DE1 Swedish
-041 Swiss, French, German, Italian
-151 Turkish "Q"
-BB1 South Africa
-L31 U.K.
-061
316904-181 Netherlands
234963-225 Polish
316904-051 Saudi Arabian
316904-045 Scandinavian
316904-151 Swiss
234963-215 Turkish
316904-BB1 United Kingdom
316904-065
464574-001
448670-001
392307-001
449283-001
463023-001
395967-001
198220-001
-DX1
-241
-131
-251
-231
-071
-101
-BG1
-141
-AR1
-031
316920-335
316904-241
316904-AR1
382848-DH1
417562-115
316904-141
158593-035
447310-001
419496-001
457909-001
497731-001
449980-001
449979-001
449978-001
page 1
