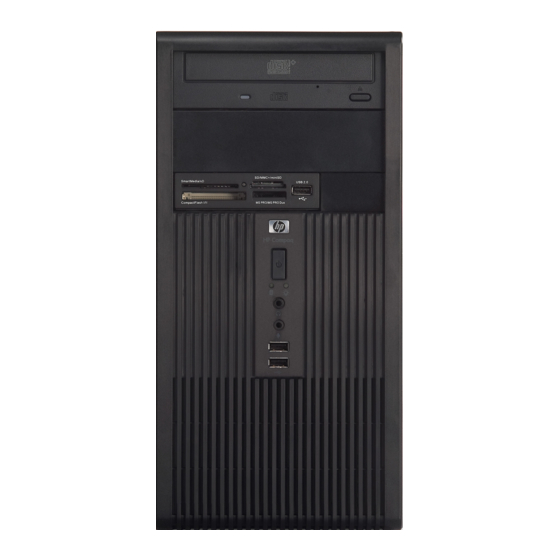

HP DX2200 Hardware Reference Manual
Microtower business pc
Hide thumbs
Also See for DX2200:
- Service & reference manual (120 pages) ,
- Specifications (38 pages) ,
- Utility manual (18 pages)
Related Manuals for HP DX2200
Summary of Contents for HP DX2200
- Page 1 Hardware Reference Guide HP Compaq dx2200 Microtower Business Document Part Number: 413758-001 January 2006 This guide provides basic information about upgrading this computer model.
- Page 2 Microsoft and Windows are trademarks of Microsoft Corporation in the U.S. and other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
-
Page 3: Table Of Contents
Shipping Preparation ........... 3–3 Hardware Reference Guide www.hp.com Contents... - Page 4 Grounding Methods........... . 4–1 www.hp.com...
-
Page 5: Hardware Upgrades
Hardware Upgrades HP Compaq dx2200 Microtower ✎ The drive configuration shown above may be different than your computer model. Hardware Reference Guide www.hp.com... -
Page 6: Serviceability Features
CAUTION: When the computer is plugged into an AC power source, voltage is always applied to the system board. You must disconnect the power cord from the power source before opening the computer to prevent system board damage. Chapter 4, “Electrostatic Discharge” www.hp.com for more Hardware Reference Guide... -
Page 7: Removing The Access Panel And Front Bezel
Removing the Power Cord and Access Panel ✎ To replace the access panel, reverse the removal steps. Hardware Reference Guide turn off any external devices. computer 1, and disconnect any external devices. computer chassis 2. away from and off the unit 3. www.hp.com Hardware Upgrades... - Page 8 1 then rotate the bezel off the chassis 2, beginning with the left side then the right side. www.hp.com Hardware Reference Guide...
-
Page 9: Removing A 5.25" Drive Bezel Blank
Access Panel and Front Bezel.” tabs on the right towards the outer edge of the bezel 1 and pull the bezel blank inwards to remove it 2. www.hp.com Hardware Upgrades “Removing the... -
Page 10: Removing A 3.5" Drive Bezel Blank
Access Panel and Front Bezel.” two retaining tabs on each side of the bezel blank 1 and pull the bezel blank inwards to remove it 2. www.hp.com “Removing the Hardware Reference Guide... -
Page 11: Installing Additional Memory
CAS latency 4 (CL = 4) for PC2-5300 667 MHz contain the mandatory JEDEC SPD information 256Mbit, 512Mbit, and 1Gbit non-ECC memory technologies single-sided and double-sided DIMMS DIMMs constructed with x8 and x16 DDR devices; DIMMs constructed with x4 SDRAM are not supported www.hp.com Hardware Upgrades... -
Page 12: Installing Dimms
4. Locate the memory module sockets on the system board. Å WARNING: To reduce risk of personal injury from hot surfaces, allow the internal system components to cool before touching. turn off any external devices. computer, and disconnect any external devices. www.hp.com Chapter 4, Hardware Reference Guide... - Page 13 The computer should automatically recognize the additional memory the next time you turn on the computer. Hardware Reference Guide memory module into the socket 2. is fully inserted and properly seated. Make sure the latches are in the closed position 3. cable. www.hp.com Hardware Upgrades...
-
Page 14: Installing An Expansion Card
1 and slide the slot cover lock up and away from the slots to remove it from the computer 2. www.hp.com Hardware Reference Guide... - Page 15 Gently press the card straight down into the expansion slot on the system board. www.hp.com Hardware Upgrades Expansion Card Type PCI Express x16...
-
Page 16: Replacing Or Upgrading A Drive
CD, before removing the hard drive. Failure to do so will result in data loss. After replacing the primary hard drive, you will need to run the Restore Plus! CD to load the HP factory-installed files. -
Page 17: Locating Drive Positions
External 5.25" full-height optical drive bay External 5.25" full-height option drive bay External 3.5" option drive bay (media card reader shown)* Internal 3.5" one-third height bay for optional secondary hard drive Internal 3.5" one-third height bay for primary hard drive www.hp.com Hardware Upgrades 1-13... -
Page 18: Removing A 5.25" Optical Drive
1-14 turn off any external devices. computer, and disconnect any external devices. Access Panel and Front Bezel.” then slide the drive forward and out of the bay 2. www.hp.com “Removing the Hardware Reference Guide... - Page 19 M3 metric threads. Standard screws are used for hard drives and have a silver finish. Metric screws are used for all other drives and have a black finish. Be sure to install the appropriate guide screws into the drive. Hardware Reference Guide www.hp.com Hardware Upgrades 1-15...
-
Page 20: Removing A 3.5" Media Card Reader Or Diskette Drive
If the device is a diskette drive, disconnect the power and data cables from the back of the drive. then slide the drive forward and out of the bay 2. www.hp.com “Removing the Hardware Reference Guide... - Page 21 Be sure to install the appropriate guide screws into the drive. Hardware Reference Guide Retainer Screws 2 (labeled “FDD” on chassis) 2 (labeled “CR” on chassis) www.hp.com Hardware Upgrades Guide Screws 1 (front left side of drive) none...
-
Page 22: Removing A 3.5" Hard Drive
3.5" hard drive bay. 1-18 turn off any external devices. computer, and disconnect any external devices. Access Panel and Front Bezel.” drive. then slide the drive back and out of the bay 2. www.hp.com “Removing the Hardware Reference Guide... -
Page 23: Battery Replacement
Do not attempt to recharge the battery. Do not expose to temperatures higher than 60° C (140º F). Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or water. Replace the battery only with the HP spare designated for this product. www.hp.com... - Page 24 Lift the battery out of its holder. b. Slide the replacement battery into position, positive side up. The battery holder automatically secures the battery in the proper position. www.hp.com Hardware Reference Guide...
- Page 25 To insert the new battery, slide one edge of the replacement battery under the holder’s lip with the positive side up. Push the other edge down until the clamp snaps over the other edge of the battery 2. www.hp.com Battery Replacement...
- Page 26 Pull back on the clip 1 that is holding the battery in place and remove the battery 2. b. Insert the new battery and position the clip back into place. setups using Computer Setup. Refer to the Computer Setup (F10) Utility Guide on the Documentation CD. www.hp.com Hardware Reference Guide...
-
Page 27: Computer Operating Guidelines And Routine Care
Keep liquids away from the computer and keyboard. Never cover the ventilation slots on the monitor with any type of material. Install or enable power management functions of the operating system or other software, including sleep states. www.hp.com... -
Page 28: Optical Drive Precautions
■ Safety If any object or liquid falls into the drive, immediately unplug the computer and have it checked by an authorized HP service provider. Turn off the computer before you do either of the following: ❏ Wipe the exterior of the computer with a soft, damp cloth as needed. -
Page 29: Shipping Preparation
Do not use a diskette on which you have stored or plan to store data. the computer. their power sources, then from the computer. packing boxes or similar packaging with sufficient packing material to protect them. www.hp.com... -
Page 30: Preventing Electrostatic Damage
Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis. Wrist straps are flexible straps with a minimum of 1 megohm +/- 10 percent resistance in the ground cords. To provide proper ground, wear the strap snug against the skin. www.hp.com... - Page 31 HP authorized dealer, reseller, or service provider. ✎ For more information on static electricity, contact an HP authorized dealer, reseller, or service provider. Use heelstraps, toestraps, or bootstraps at standing workstations. Wear the straps on both feet when standing on conductive floors or dissipating floor mats.
