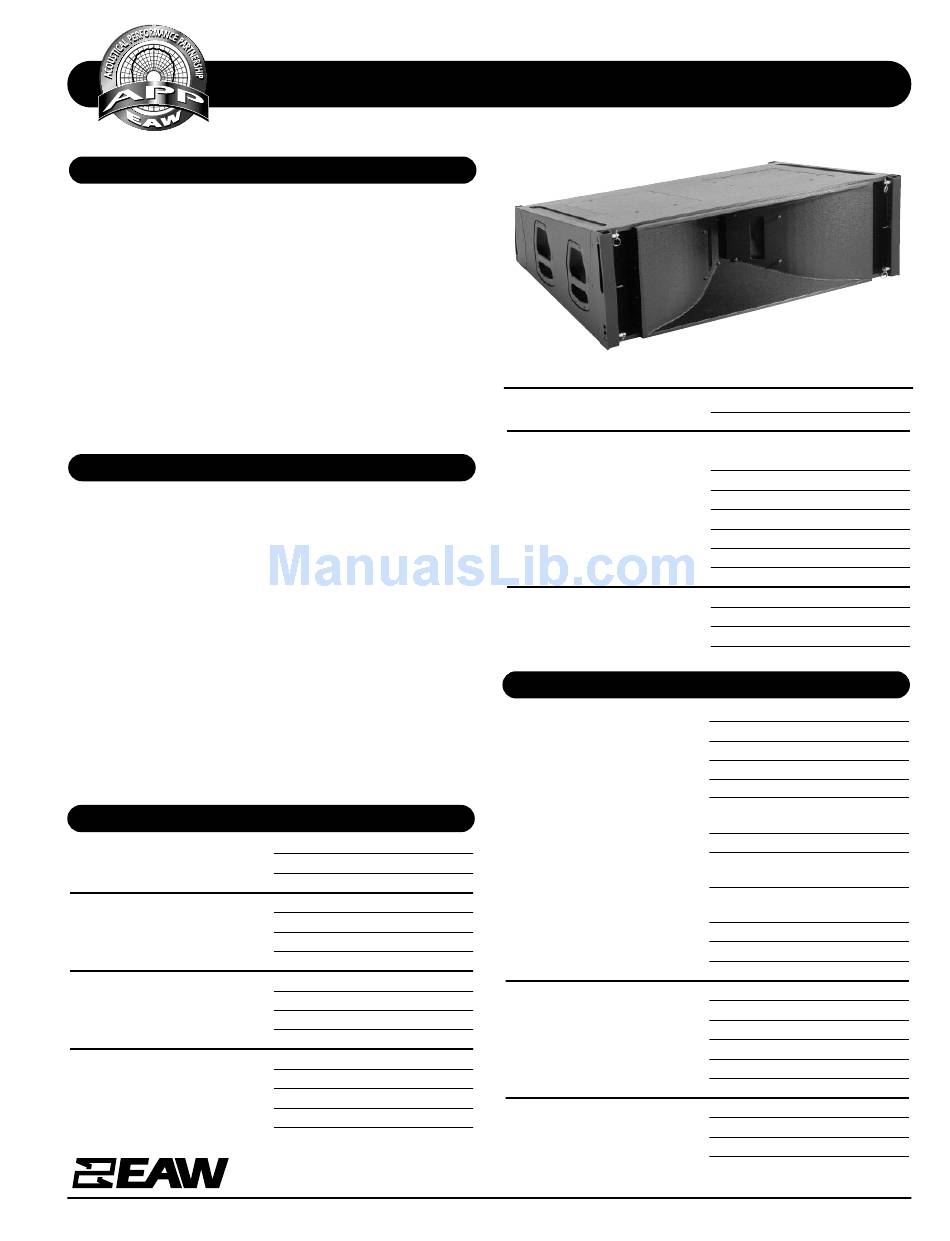

DESCRIPTION
The KF761 is part of the KF760 Line Array Series. The KF760
Series uses advanced divergence shading where all loud-
speakers are powered at equal level. A full KF760/KF761 array
can provide uniform sound coverage from directly beneath
itself out to hundreds of feet without complex signal pro-
cessing. Vertical coverage for the array is set by varying the
splay of the rear of the enclosures, leaving the fronts tight-
packed. This configuration produces a continuous, coherent
wavefront from the array, projecting extended range, high res-
olution sound over its full coverage area.
Fully professional construction features include Baltic birch
plywood enclosures, heavy-duty steel grilles, Neutrik NL8
connectors, heavy duty bar handles, rear hand-holds, and
accessory caster pallets. Six Year Warranty.
APPLICATION
This high output touring system is scalable from theaters
under 1,000 seats to stadiums. The KF761 has two applica-
tions. KF761s are designed to supplement KF760s in an array
to provide near-field coverage for distances less than 70 feet.
The KF761 can also be used as part of a KF761-only array for
applications with coverage distances up to about 100 feet.
The minimum KF761 array size is four enclosures for full per-
formance. When used with KF760s they can be used singly or
in multiples depending on the coverage needed. For extend-
ing the low frequency response, KF940 bent horn subwoofers
are an ideal complement to KF761s or a KF760 Series array.
Applications include:
Arenas
Convention Centers
Stadiums
Theaters
Auditoriums
Outdoor Events
PERFORMANCE
Frequency Response (Hz)
±3 dB (1) Enclosure Array 80 Hz to 16 kHz
±3 dB (4) Enclosure Array 60 Hz to 16 kHz
Axial Sensitivity (dB SPL, 1 Watt @ 1m)
LF Single Enclosure
MF Single Enclosure 107
HF Single Enclosure 112
Impedance (Ohms)
LF 2x 8
MF 8 (2@16 Ohm each)
HF 8
Power Handling (Watts Continuous)
LF 2000
MF 500
HF 150
One Main Street, Whitinsville, MA 01588
EAW products are continually improved. All specifications are therefore subject to change without notice.
Large Ballrooms
Music Pavilions
96
508 234 6158
Toll Free 800 992 5013
SPECIFICATIONS KF761
Recommended High-Pass Frequency
24dB/Octave 40 Hz
Calculated Maximum Output (dB SPL @ 1m)
Single Enclosure
LF Peak 135
MF Peak 1407
HF Peak 140
LF Long Term 129
MF Long Term 134
HF Long Term 134
Nominal Coverage Angle, -6 dB points (degrees)
Horizontal 100
Maximum Vertical Splay 12
PHYSICAL
Product Group S
System Configuration 3-way, full range
Powering Tri-amplified
LF Subsystem 2x 12-in woofers, horn-loaded
MF Subsystem 2x 8-in cone, slot-loaded
HF Subsystem 2-in exit/3-in voice coil com
Enclosure (shape) Horizontal trapezoid
Enclosure Materials Exterior grade Baltic birch
Finish Wear-resistant black textured
Connectors 2x Neutrik NL8
Suspension Hardware Proprietary EAW rigging system
Grille Powder coated perforated steel
Dimensions
Front Height 14.5
Rear Height 8.3
Width 45.0
Depth 30.8
Trapezoid Angle 6 degrees top and bottom
Weights
Net Weight 206
Shipping Weight 214
FAX 508 234 8251
KF761/0002963/2 pp
pression driver, horn-loaded
plywood
paint
inches
millimeters
368
210
1143
784
pounds
kilograms
93.4
97.1
info@eaw.com
www.eaw.com
April 2002
Printed in USA
