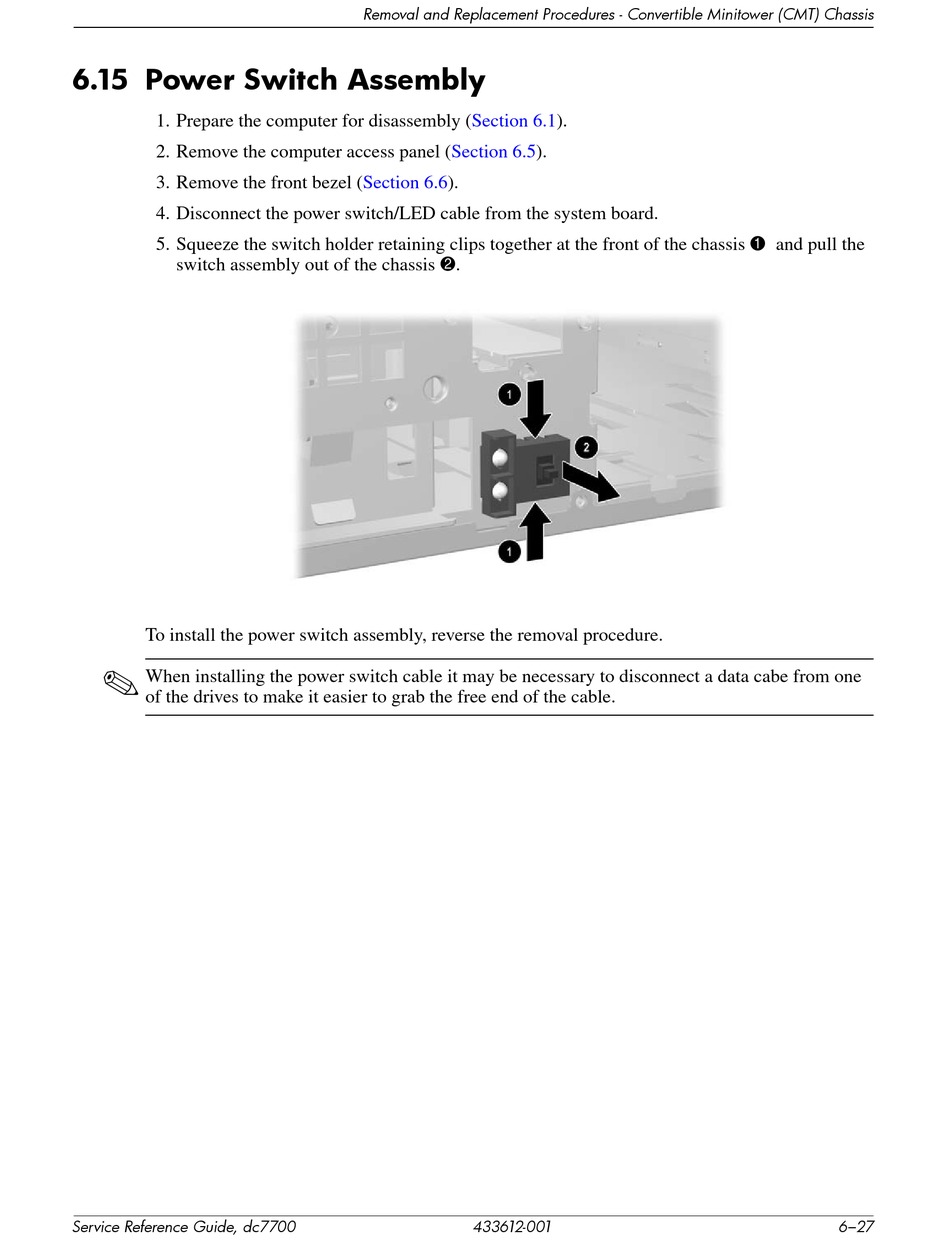

6.15 Power Switch Assembly

1. Prepare the computer for disassembly
2. Remove the computer access panel
3. Remove the front bezel
4. Disconnect the power switch/LED cable from the system board.
5. Squeeze the switch holder retaining clips together at the front of the chassis 1 and pull the
switch assembly out of the chassis 2.
To install the power switch assembly, reverse the removal procedure.
✎
When installing the power switch cable it may be necessary to disconnect a data cabe from one
of the drives to make it easier to grab the free end of the cable.
