QuickSpecs
Overview

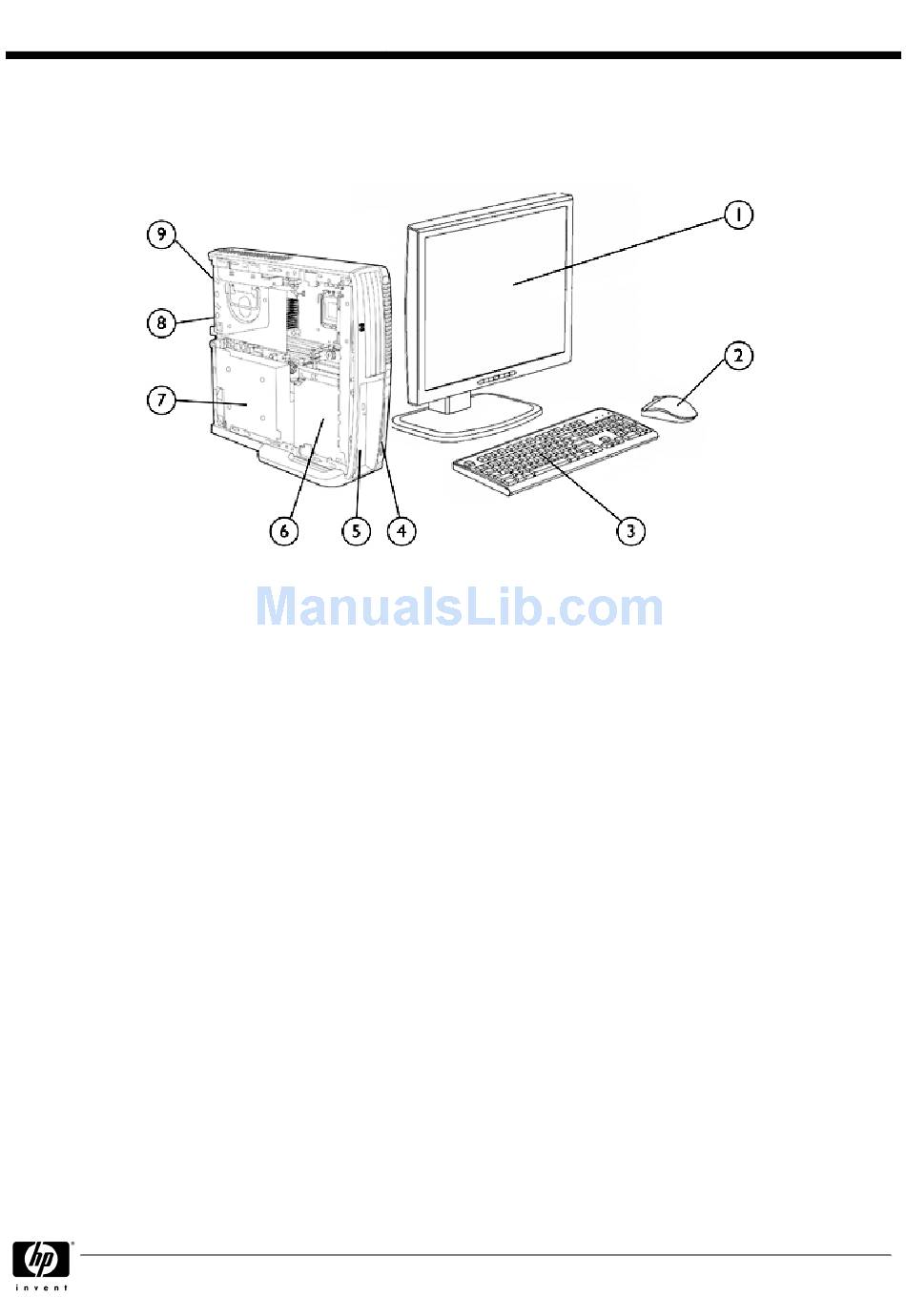

1. Monitor (sold separately)
2. 2-Button Scroll Mouse (PS/2) or Optical Scroll Mouse
(PS/2 or USB)
3. HP Standard Keyboard (PS/2 or USB) or HP USB
Smartcard Keyboard
4. Front I/O: (2) USB 2.0, headphone and microphone
5. (1) Slimline Drive Bay
*NOTE: Only one optional riser is allowed: either the PCI riser or the PCI Express x16 riser.

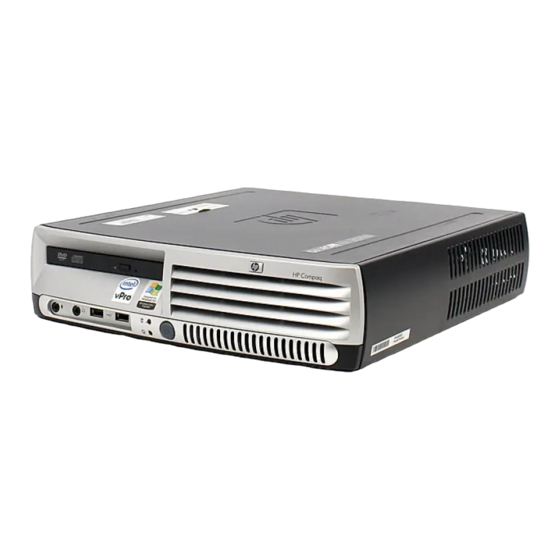

Ultra-slim Desktop
DA - 12543 Worldwide QuickSpecs — Version 3 — 9.28.2006
HP Compaq dc7700 Business PC
6. (1) 3.5" internal bay
7. 200-watt Active Power Factor Correction (PFC) power
supply
8. (1) full-height PCI slot (with optional riser) , (1) low profile
PCI Express x16 slot (with optional riser)*
9. Rear I/O: (6) USB 2.0, (1) optional serial port (available via
adapter), (1) optional parallel port (available via adapter),
(1) optional DVI graphics port (available via DVI ADD2
adapter), (2) PS/2, (1) RJ-45, (1) VGA, audio in/out
Page 1
