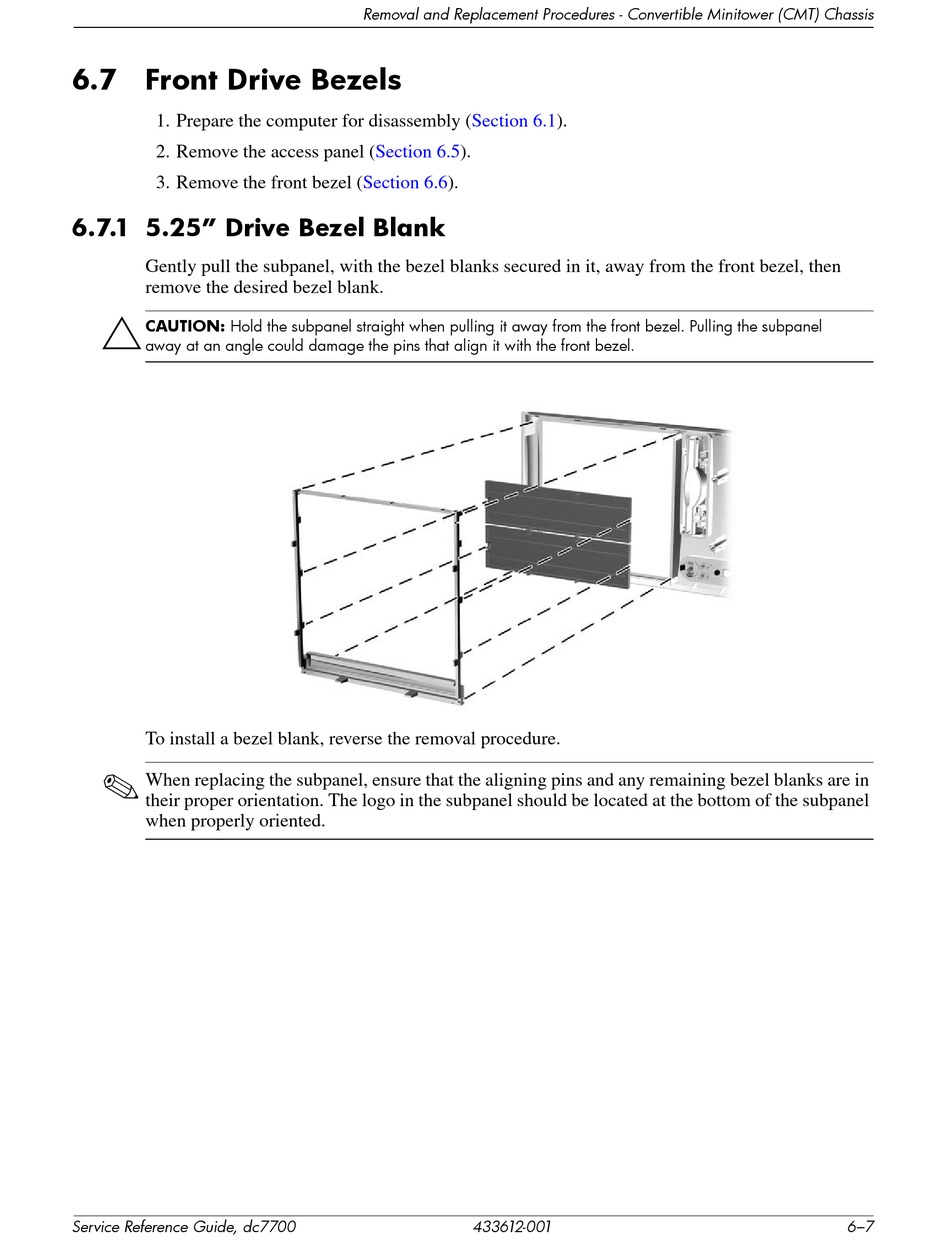

6.7 Front Drive Bezels

1. Prepare the computer for disassembly
2. Remove the access panel
3. Remove the front bezel

6.7.1 5.25" Drive Bezel Blank

Gently pull the subpanel, with the bezel blanks secured in it, away from the front bezel, then
remove the desired bezel blank.
CAUTION: Hold the subpanel straight when pulling it away from the front bezel. Pulling the subpanel
Ä
away at an angle could damage the pins that align it with the front bezel.
To install a bezel blank, reverse the removal procedure.
✎
When replacing the subpanel, ensure that the aligning pins and any remaining bezel blanks are in
their proper orientation. The logo in the subpanel should be located at the bottom of the subpanel
when properly oriented.
Service Reference Guide, dc7700
Removal and Replacement Procedures - Convertible Minitower (CMT) Chassis
(Section 6.1).
(Section 6.5).
(Section 6.6).
433612-001 6–7
