The replacement of the electrical
cable must be done by a qualified
electrician or competent person,
according to the current regula-
tions.
7.6 Replacement of the
connection cable
To replace the connection cable use only
H05V2V2-F T90 or equivalent type. Make
sure that the cable section is applicable to
the voltage and the working temperature.
The yellow/green earth wire must be ap-
proximately 2 cm longer than the brown
(or black) phase wire.

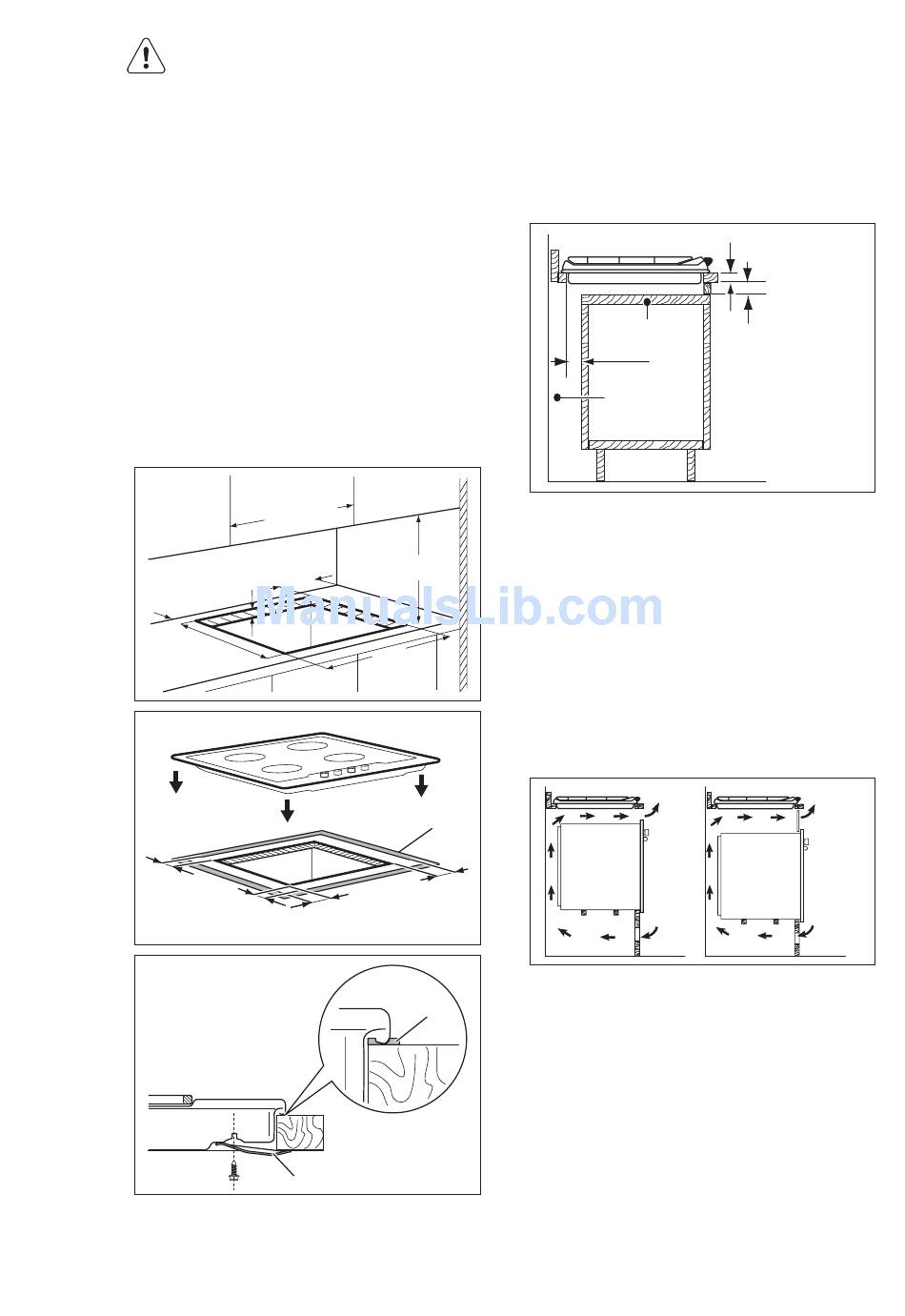

7.7 Building In
min. 600 mm
min. 100 mm
min. 55 mm
30 mm
480 mm
10 mm
3 mm
B
A) supplied seal
B) supplied brackets
min. 650 mm
560 mm
A
11 mm
11 mm
A

7.8 Possibilities for insertion

Kitchen unit with door
The panel installed below the hob must
be easy to remove and let an easy access
in case a technical assistance intervention
is necessary.
A
60 mm
B
A)
Removable panel
B) Space for connections
Kitchen unit with oven
The hob recess dimensions must obey
the indication and the kitchen unit must
be equipped with vents to let a continu-
ous supply of air. The electrical connec-
tion of the hob and the oven must be in-
stalled separately for safety reasons and
to let easy remove oven from the unit.
50 cm2
360 cm2
ENGLISH 13
30 mm
min 20 mm
(max 150 mm)
120 cm2
180 cm2
