Summary of Contents for Alliance Laundry Systems TLW12CTLW12C

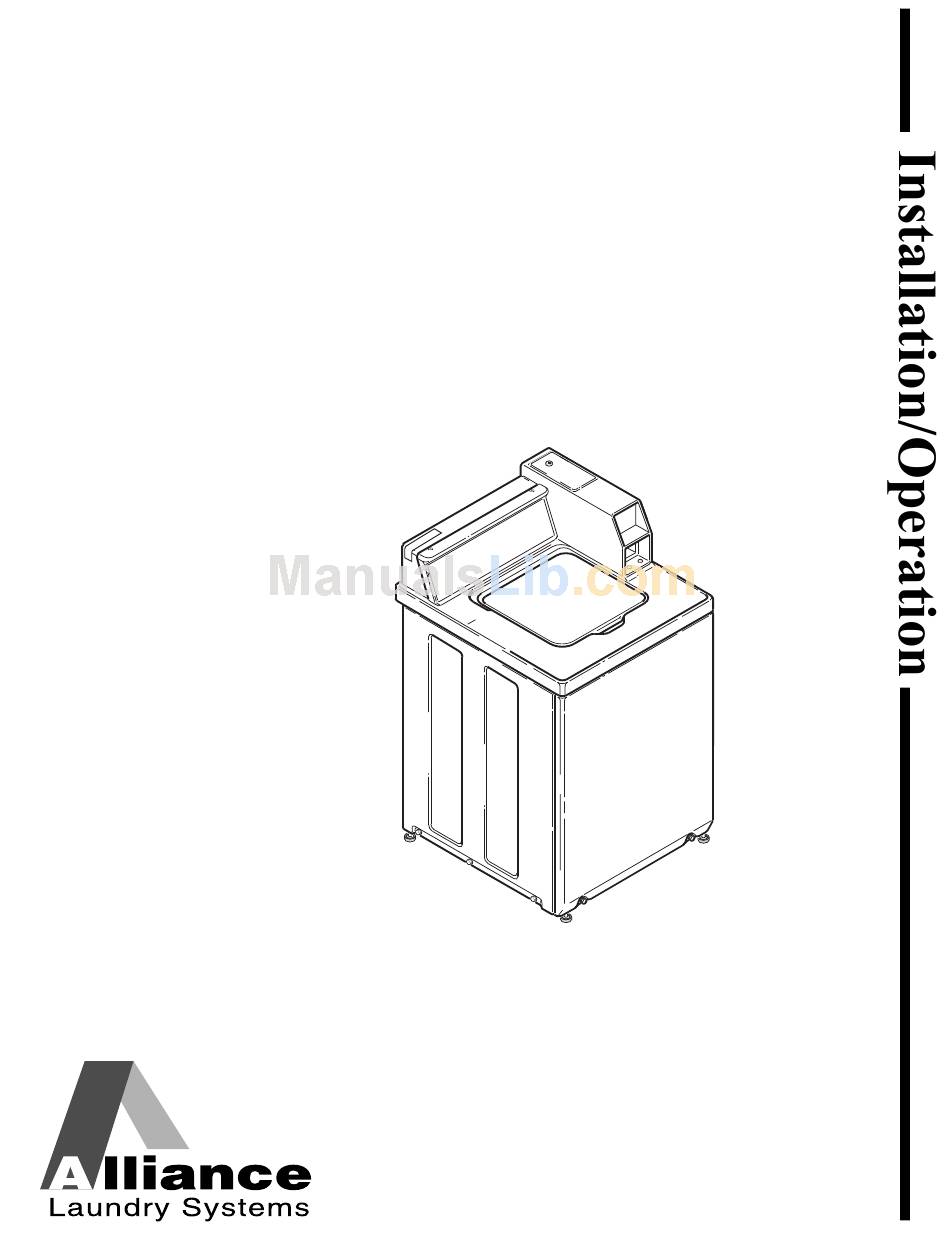

- Page 1 Automatic Washers Metered Commercial TLW12C TLW12C Keep These Instructions for Future Reference. (If this machine changes ownership, this manual must accompany machine.) Part No. 202068R5 www.comlaundry.com August 2011...
- Page 3 IMPORTANT: Read the complete INSTALLATION/OPERATION INSTRUCTIONS before using the washer. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 202068 WARNING W022...
-
Page 4: Table Of Contents
All rights reserved. No part of the contents of this book may be reproduced or transmitted in any form or by any means without the expressed written consent of the publisher. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Safety Information... -
Page 5: Safety Information
NOTE: The word “NOTE” is used to communicate installation, operation, maintenance or servicing information that is important but not hazard related. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 202068 Safety Information Important Safety Instructions Save These Instructions... - Page 6 CLOSE the shut-off valves at the end of each wash day. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 15. Keep your washer in good condition. Bumping or dropping the washer can damage safety features.
-
Page 7: Installation
Dimensions and Specifications 22.44 in. (57 cm) 0.44 in. 26 in. (66.04 cm) 25.625 in. (65.1 cm) (1.12 cm) 28 in. (71.1 cm) TLW2097N Pilot Hole TLW2097N © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 202068... -
Page 8: Before You Start
IMPORTANT: Install dryer before washer. This allows room for attaching exhaust duct. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Installing the Washer Step 1: Remove the Shipping Brace and Shipping Plug Remove the shipping brace from under the lid. -
Page 9: Step 2: Wipe Out Inside Of Washtub
The gas is flammable. Do not smoke or use an open flame during this time. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 202068 Water Supply Requirements Water supply faucets must fit standard 3/4 inch (19.1 mm) female garden hose couplings. -
Page 10: Connecting Hoses
All hoses should be replaced every five years. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT IMPORTANT: Turn off water supply faucets after check-out and demonstration. Owner should turn off water supply whenever there will be an extended period of non-use. -
Page 11: Step 4: Connect Drain Hose To Drain Receptacle
Remove the drain hose from its shipping position on the rear of the washer by unhooking the hose from the retainer clamp. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 202068 If necessary, follow the instructions for your type of drain receptacle (high standpipe or low standpipe) to properly install the drain hose. -
Page 12: Low Standpipe Installation
Place a level on the cabinet top and check if the washer is level from side to side and front to back. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT If washer is not level, tilt washer back to access the front leveling legs. -
Page 13: Step 6: Plug In The Washer
110/120 Volts AC (alternating current) 15 Amps. Refer to Figure 10 to determine correct polarity of the wall receptacle. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 202068 120±12 V.A.C. -
Page 14: Grounding Instructions
© Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT NOTE: The agitator should not be removed except for service. The washtub is designed to be self- cleaning. -
Page 15: Vending
Serial Nos. beginning 0910 through 1010 require a 7.21 in. (18.31 cm) coin drawer. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 202068 Models Prepped for Card Reader The machine is shipped from the factory with the Electronic Control Diagnostic Harness Assembly unplugged. -
Page 16: Additional Washer Security
3. Tilt control panel forward and lay on a protective pad to prevent scratching of cabinet top. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 4. Insert Phillips head screw down through double “D” hole in left rear corner of cabinet top (inside control hood) until it engages retainer nut located on left rear corner gusset of cabinet. -
Page 17: Operation
If desired, fabric softener may be added to rinse water when RINSE light comes on. Figure 15 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 202068 Operation Step 2: Load Laundry Load dry clothes loosely into washtub – DO NOT... -
Page 18: Step 4: Set Fabric Selector
Push touchpad for HOT, WARM or COLD. Light indicates selection. Figure 19 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Step 6: Select Cycle Type/ Soil Level Push CYCLE SELECT or SOIL LEVEL touchpad. Light indicates selection. -
Page 19: Step 8: Start Washer
Step 8: Start Washer After vend price has been satisfied, push the START pad. LID MUST BE CLOSED TO START WASHER. Figure 23 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 202068 Indicator Lights INSERT COINS/CARD INSERT COINS/CARD is lit to prompt the user to insert coins or a card to satisfy the vend price. -
Page 20: Maintenance
Clean or replace them if necessary. Order filter screen Part No. F270300 from the nearest authorized parts distributor. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Maintenance Reinstallation of Shipping Materials Shipping Brace The shipping brace in the lid opening should be saved and reinstalled whenever the washer is moved. -
Page 21: Troubleshooting
The motor overload protector may have stopped the cycle. It will reset itself in two or • three minutes and restart the washer automatically. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 202068 Troubleshooting Possible Cause/Solution... - Page 22 “H” on the valve bracket) and cold faucet is connected to cold mixing valve (indicated with “C” on the valve bracket). • Make sure laundry room water heater is adjusted properly. © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT Possible Cause/Solution 202068...
-
Page 23: Copyright, Alliance Laundry Systems Llc – Do Not Copy Or Transmit
Phone: (920) 748-3121 Nameplate Figure 25 © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT 202068 When calling or writing about your unit, PLEASE GIVE THE MODEL AND SERIAL NUMBERS. The model and serial numbers are located on the nameplate. -
Page 26: Installer Checklist
• Connect Fill COLD Hoses. CHECK • Connect Drain Hose to Drain Receptacle. CHECK © Copyright, Alliance Laundry Systems LLC – DO NOT COPY or TRANSMIT • Position and Level the Washer. CHECK TLW2098N TLW2098N • Plug In the Washer.
