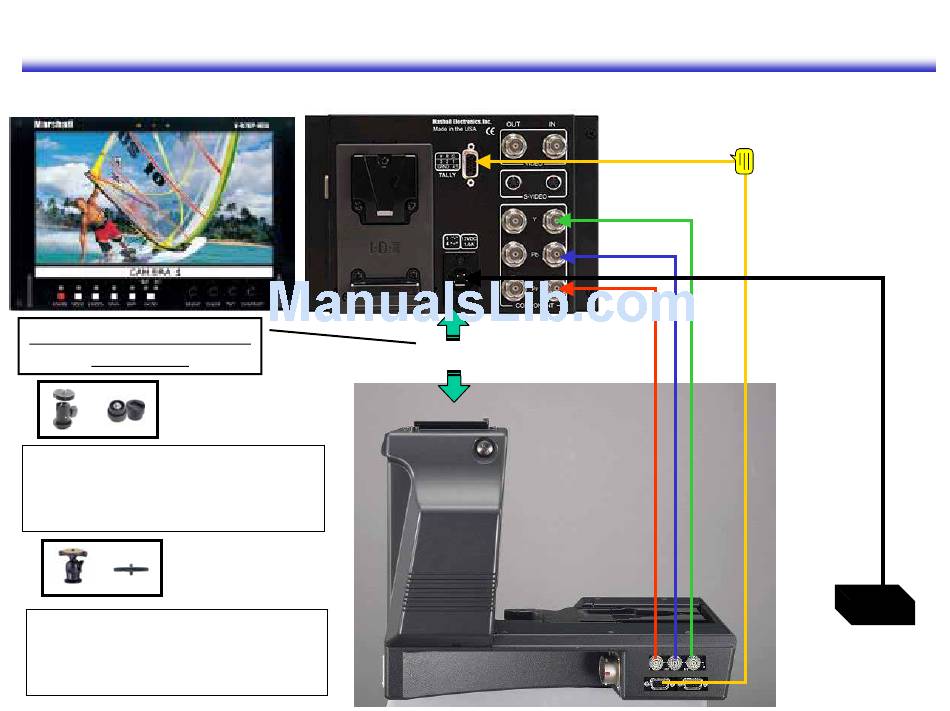

LCD Monitor/Viewfinder connection to KA-HD250

1.Marshall VC-R70P-HDA
Tally
D-sub 9-pin
Analog component
BNCx3-BNCx3
Recommended attachment
1/4" tap
(alternative)
Manfrotto:143S
Flash Shoe, 1/4" Male Attachment
Marshall:V-LCD-MT-01
Flash Shoe, 1/4" Male Attachment
Etsumi:E-6085
AC adapter
Pin Screw (1/4" male/male)
[provided]
Velbon:QHD-51
Pan head

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GY-HD250U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JVC GY-HD250U

Summary of Contents for JVC GY-HD250U

  • Page 1 LCD Monitor/Viewfinder connection to KA-HD250 1.Marshall VC-R70P-HDA Tally D-sub 9-pin Analog component BNCx3-BNCx3 Recommended attachment 1/4” tap (alternative) Manfrotto:143S Flash Shoe, 1/4" Male Attachment Marshall:V-LCD-MT-01 Flash Shoe, 1/4" Male Attachment Etsumi:E-6085 AC adapter Pin Screw (1/4” male/male) [provided] Velbon:QHD-51 Pan head...
  • Page 2 LCD Monitor/Viewfinder connection to KA-HD250 2.Astro Design DM-3106 Analog component BNCx3-BNCx3 Tally D-sub 9-pin Recommended attachment 1/4” tap Astor design:MA-700 14”- 1/4" Male Attachment AC adapter [provided]...
  • Page 3 LCD Monitor/Viewfinder connection to KA-HD250 3.VF-P400 VF 6-pin No optional attachment is required Component out SDI out KA-V400 20-pin/6-pin converter (letter box) When VF-P400 is used, the setting of VF signal in the menu of LCD/VF screen of GY-HD250 should be set to “Y”.
  • Page 4 LCD Monitor/Viewfinder connection to KA-HD250 4.VF-P550W Not available. (Physically the connector of VF-P550W can be connected to KA-HD250 directly. But, picture cannot be displayed on VF-P550W due to the different pin assignment.)
  • Page 5 Notification of LCD Monitor/Viewfinder connection Type of viewfinder Provided VF VF-P400 LCD monitors Y/PB/PR Y/PB/PR Terminal BNCx3 20-pin BNCx3 BNCx3 BNCx3 BNCx1 Signal HD component SD component Composite GY-HD250 VF signal Component Component Composite Signal Reverse picture Zebra Display Skin detail range Safety zone Focus assist *1 Characters from the GY-HD250 are displayed for Y/PB/PR terminal output signals.
