Section I - Short Length Multi Core Studio Configurations SD Studio System: SD System with RM-P210U SD Studio System Components Price List SD Studio Key features and users benefits Additional Information HD Studio System: HD System Diagram with RM-HP250AU SYSTEM 1 (HD SDI) HD System Diagram with RM-HP250AU SYSTEM 2 (HD analog component) HD System Diagram with RM-P210U HD Studio System Components Price List...
Page 3
Section V - Supplementary Information “VF SIGNAL” Menu How to use Sony 26Pin Cable with KA-HD250U How to use Sony 26Pin cable with RM-P210U GY-HD250U/KA-HD250U and JVC CCUs Power connectivity table HD-SDI Cable Lengths Telecast Fiber Rattler – Fiber Tx/Rx Table of contents Version 1.12...
Page 4
VF-HP840U and KA-HD250U Interconnect Diagram VC-P840U: 20Pin Viewfinder Cable Power applied to GY-HD250U/GY-HD200UB via Battery Mount Power applied to GY-HD250U/GY-HD200UB via 4 pin XLR KA-HD300U: Portable HD Studio Adapter KM-H3000U/KM-H2500U: Multi Format HD-SDI Production Switcher Studio System Components Weight and Power Dissipation List for Tripod Mounted Table of contents Version 1.12...
DT-109 or RH-1R5 RM-P210U Live video KA-HD250U* / KA-HD250U(A)** Switcher SD Analog Component VC-PxxxU Control cable KA-R25U*** KA-HD300E JVC-PV*** VC-PxxxU Control cable House Sync * Use KA-HD250U / KA-HD250U(A) with VF-P400U. ** Use KA-HD250U(A) with VF-HP840U. *** Supplied with KA-HD300E...
When replacing a GY-DV550U, the original CCU the RM-P210U; the 26pin control cable and the studio viewfinder VF- P400U can continue to be used. When needed, the GY-HD250U can be used as an ENG camera by detaching it from the KA-HD250U/U(A). GY-HD250U + KA-HD250U/U(A)
SD CMP available only; RM-P210U can not pass full bandwidth HD Y, R-Y, B-Y. Genlock must be NTSC VBS only – HD Tri level sync can not be passed by RM-P210U back to the GY-HD250U. GY-HD250U’s “ANALOG OUT CHAR.” menu should be set to “OFF”, – otherwise they will appear at RM-P210U ...
KA-R25U JVC-PV * Either the HD-SDI outputs of the RM-HP250AU derived from the HD component signal or the HD-SDI output of the GY-HD250U can be applied to the HD-SDI switcher inputs. ** When using VF-HP840U as viewfinder, camera adapter must be KA-HD250U(A).
DT-109 or RH-1R5 KA-HD250U* / KA-HD250U(A)** KA-R25U JVC-PV House sync * The component HD signal output of the RM-HP250AU can be applied to a HD component analog switcher. ** When using VF-HP840U as viewfinder, camera adapter must be KA-HD250U(A).
HD System Diagram with RM-P210U VF-P400U VF-HP840U w/KA-V400U DT-109 or RH-1R5 KA-HD250U* / KA-HD250U(A)** KA-R25U JVC-PV ** When using VF-HP840U as viewfinder, camera adapter must be KA-HD250U(A). VC-PxxxU Control cable DT-109 or RH-1R5 RM-P210U VC-PxxxU Control cable VC-PxxxU Control cable KA-HD300U Version 1.12...

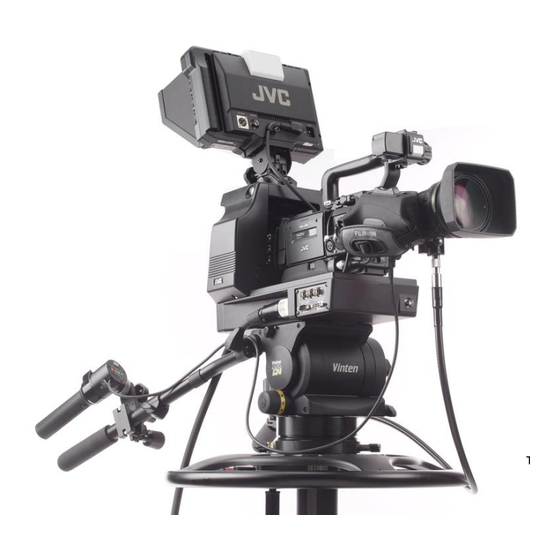

VF-HP840U HD/SD viewfinder. Existing user’s 26Pin Sony Cable can be used to connect RM-HP250AU and KA-HD250U/U(A). When needed, the GY-HD250U can be readily detached from the KA-HD250U/U(A)(Sled) and used as an ENG camera. GY-HD250U w/KA-HD250U/U(A)
GY-HD250U’s “ANALOG OUT CHAR.” menu should be set to “OFF”. Set the “VF SIGNAL” menu to “COMPONENT”. If a VF-P400U is used as the view finder, set the GY-HD250U’s “VF SIGNAL” menu to “RGB”. Do not turn “SDI OUT CHAR.” menu setting to “ON”.
CCU. CAMPLEX: CAMPLEX produces economical hybrid cable connected systems that integrate with the GY-HD250U. Their system consists of a Camera Adapter mounted on the Camera, a Hybrid Fiber Cable and a Base Station.
Shoulder CP-301C/CP-701C studio system diagram BKW - V mount Plate DT-109 or RH-1R5 KA-R25U Battery Powered Signal Cabling Power CP-301C/CP-701C GY-HD250U Hybrid Cable- BNC and ST Fiber connectors RM-LP25U (RM-LP55U/LP57U) DT-109 or RH-1R5 HD-SDI KM-H2500U/H3000U 900m Base Station CP301C/CP701C...
Shoulder Studio Components Price List (Fiber) Model Description GY-HD250CHU Pro HD Camcorder GY-HD250U Pro HD Camcorder RM-LP25U Local Remote Control Panel RM-LP55U Local Remote Control Unit RM-LP57U Local Remote Control Panel KM-H2500U HD-SDI Switcher KM-H3000U HD-SDI Switcher KA-R25U Return Video Box Options Th13X3.5BRMU...
Tripod mounted CP-301C/CP-701C studio system diagram w/o Sled DT-109 or RH-1R5 VF-HP840U BKW - V mount Plate VC-P840U KA-R25U Battery Powered Signal Cabling SA-K840 Power CP-301C/CP-701C VC-Y250US GY-HD250U Hybrid Cable- BNC and ST Fiber connectors RM-LP25U (RM-LP55U/LP57U) DT-109 or RH-1R5 HD-SDI 900m Base Station CP301C/CP701C KM-H2500U/H3000U...
Tripod Mounted Studio Components Price List (Fiber) Model Description GY-HD250CHU Pro HD Camcorder GY-HD250U Pro HD Camcorder RM-LP25U Local Remote Control Panel RM-LP55U Local Remote Control Unit RM-LP57U Local Remote Control Panel KM-H2500U HD-SDI Switcher KM-H3000U HD-SDI Switcher KA-R25U...
Version 1.12 Sled mounted CP-301C/CP-701C studio system diagram VF-HP840U DT-109 or RH-1R5 BKW - V mount Plate GY-HD250U Battery Powered Camera Adapter Battery Mount Intermediate KA-HD250U / KA-HD250U(A)* (Q-X2 or P-V) Plate(KA-BP250U) Hybrid Cable RM-LP25U (RM-LP55U/LP57U) DT-109 or RH-1R5...
Up to 48 Watts of power is supplied to the camera and attached options at an economical price. GY-HD250U can be quickly detached from the Sled and used as an ENG camera. Flexibility of both hand held and tripod mounted operation.
When using the CP301C’s camera adapter’s Genlock signal for Genlock and for return video, the signal must be an NTSC VBS. Set GY-HD250U “TALLY SYSTEM” menu setting to “STUDIO”. When using VF-HP840U set “VF SIGNAL” menu setting to “COMPONENT”. Limitations Maximum cable length is limited to 900m with RG11.
Telecast Fiber also produces a fiber connected CCU. Their system consists of a Camera Adapter(Copper Head) , a Power Module (Power Plus) connected to the GY-HD250U; a Hybrid Fiber Cable connects the Camera adapter to the Base Station and an optional Power module. This Configuration can be operated with cable lengths of up to 2K meters Base Station The Camera Adapter provides a signal interface between the camera and the two fibers inside the Hybrid Cable.
Shoulder/w power studio system diagram SMPTE 311 Hybrid Cable Power Plus Up to 2K meters DT-109 or RH-1R5 Signal Cabling Camera Adapter RM-LP25U DT-109 & (RM-LP55U/LP57U) or RH-1R5 Base Station KA-R25U GY-HD250U HD-SDI KM-H2500U/H3000U Version 1.12...
Shoulder Studio with Power Components Price List (Fiber) Model Description GY-HD250CHU Pro HD Camcorder GY-HD250U Pro HD Camcorder RM-LP55U Local Remote Control Unit RM-LP57U Local Remote Control Panel RM-LP25U Local Remote Control Panel KM-H2500U HD-SDI Switcher KM-H3000U HD-SDI Switcher...
Tripod mounted/w power studio system diagram SMPTE 311 Hybrid Cable Power Plus Up to 2K meters DT-109 or RH-1R5 Signal Cabling POWER VC-Y250US Camera Adapter RM-LP25U DT-109 & (RM-LP55U/LP57U) or RH-1R5 Base Station VF-HP840U VC-P840U SA-K840 GY-HD250U HD-SDI KM-H2500U/H3000U Version 1.12 KA-R25U...
Page 28
Tripod Mounted Studio with Power Components Price List (Fiber) Model Description GY-HD250CHU Pro HD Camcorder GY-HD250U Pro HD Camcorder RM-LP55U Local Remote Control Unit RM-LP57U Local Remote Control Panel RM-LP25U Local Remote Control Panel KM-H2500U HD-SDI Switcher KM-H3000U HD-SDI Switcher...
Version 1.12 Sled Mounted/w Power studio system diagram VF-HP840U DT-109 or RH-1R5 GY-HD250U SMPTE 311 Hybrid Cable Battery Mount Intermediate (Q-X2 or P-V) Plate(KA-BP250U) KA-HD250U / KA-HD250U(A)* Camera Adapter RM-LP25U Power Plus DT-109 & (RM-LP55U/LP57U) or RH-1R5 Base Station...
Up to 150Watts of continuous power and 200Watts of peak power is supplied to the camera and attached accessories. GY-HD250U can be quickly detached from the Sled and used as an ENG camera. Camera Adapter Fig 4 Signal Flow between Camera Adapter and Base Station...
Additional Information When using VF-HP840U, set “VF SIGNAL” menu setting to “COMPONNET”. Set GY-HD250U “TALLY SYSTEM” menu setting to “STUDIO”. When using KA-R25U, set “VF SIGNAL” menu setting to “RGB”. Version 1.12...
Base station. Power must be supplied either locally or via an attached battery. One fiber contains the HD-SDI signal. The second fiber contains all of the other required signals. Tactical Fiber Extremely long length Telecast Fiber Studio System Version 1.12 GY-HD250U Camera Adapter Cabling...
Version 1.12 Shoulder battery powered studio system diagram KA-R25U DT-109 or RH-1R5 Titan70 Dionic 90/160 Signal Cabling GY-HD250U RM-LP25U Camera Tactical 2 fiber DT-109 (RM-LP55U/LP57U) Adapter or RH-1R5 & Base HD-SDI Station KM-H2500U/H3000U Up to 20K meters...
Shoulder Battery Powered Studio Components Price List (fiber) Model Description GY-HD250CHU Pro HD Camcorder GY-HD250U Pro HD Camcorder RM-LP55U Local Remote Control Unit RM-LP57U Local Remote Control Panel RM-LP25U Local Remote Control Panel KM-H2500U HD-SDI Switcher KM-H3000U HD-SDI Switcher...
Tripod Mounted w/o Sled battery powered studio system diagram VF-HP840U VC-P840U KA-R25U DT-109 or RH-1R5 Dionic 90/160 Titan70 Signal Cabling SA-K840 POWER VC-Y250US GY-HD250U RM-LP25U Camera Tactical 2 fiber DT-109 (RM-LP55U/LP57U) Adapter or RH-1R5 & Base Station HD-SDI Up to 20K meters...
Tripod Mounted Battery Powered Studio Components Price List (Fiber) Model Description GY-HD250CHU Pro HD Camcorder GY-HD250U Pro HD Camcorder RM-LP55U Local Remote Control Unit RM-LP57U Local Remote Control Panel RM-LP25U Local Remote Control Panel KM-H2500U HD-SDI Switcher KM-H3000U HD-SDI Switcher...
Version 1.12 Sled Mounted with battery or off board of on board AC power studio system diagram VF-HP840U DT-109 Dionic 90/160 Titan70 or RH-1R5 GY-HD250U Battery Mount Intermediate (Q-X2 or P-V) Plate(KA-BP250U) KA-HD250U / KA-HD250U(A)* RM-LP25U Camera Tactical 2 fiber...
Version 1.12 Section IV - POV System configuration POV Pan/Tilt System: POV Pan/Tilt system diagram GY-HD250CHU/200CHUB Live Switcher HD-SDI or HD CMP HD SDI (BNC or Fiber) or Component MD lens KM-H2500U/H3000U CAT 5 cable ES960379-xxx ESI P/T head PTZF control CAT 5 cable ES960379-xxx Camera control...
Cameras can be controlled from up to 2000 ft. When needed the GY-HD250U/GY-HD200U can be easily used as an ENG camera by detaching it from the Pan/Tilt head. Upon request ESI can supply camera power to the camera from the Pan/Tilt head.
RCU control of cameras up to 2000 feet with ESI Model 55 System: RCU control of cameras up to 2000 feet system diagram GY-HD250CHU/200CHUB GY-HD250CHU/200CHUB HD SDI (BNC or Fiber) or Component CAT 5 cable ES960379-xxx Camera control ESI Model 55-Cam ESI Model 55-Cam Version 1.12 Live Switcher HD-SDI or HD CMP...
RCU control of cameras up to 2000 feet with ESI Model 55 System Components Price List Model Description GY-HD250CHU Pro HD Camcorder GY-HD200CHUB Pro HD Camcorder RM-LP55U Local Remote Control Unit RM-LP57U Local Remote Control Panel RM-LP25U Local Remote Control Panel...
Section V - Supplementary Information “VF SIGNAL” Menu Y, Pr, Pb MENU Mode “VF SIGNAL” (COMPONENT) 720p or 1080i COMPOSITE COMPONENT 720p or 1080i COMPOSITE Y, Pr, Pb 480i COMPONENT Eng VF Video Signal Output Y, Pr, Pb 20-Pin out (VF out) Y, Pr, Pb RGB 480i...
How to use Sony 26Pin Cable with KA-HD250U 1. Disconnect the CABLE from the CN3 on the KA-HD250U’s MAIN board *. 2. Reconnect cable to CN4 on the MAIN board. * See service manual for disassembly instructions Version 1.12...
Note 2: Receive Voltage at pin-A and pin-B of the 26-pin MUST be lower than 15V. If the voltage exceeds 15VDC, adjustment of (a) “VOLT ADJ 17V” and (b) “VOLT ADJ 19V” must be re-adjusted from 16VDC to 15VDC. GY-HD250U/KA-HD250U and JVC CCUs Power connectivity table 20m(VC-P112) Operation...
HD-SDI Cable Lengths HD-SDI BNC Cable RG-11 RG-7 RG-6 RG-59 Telecast Fiber Rattler – Fiber Tx/Rx The rattler Tx and Rx converts a electrical digital signal to an optical signal at the Tx end and from a optical signal to a digital signal at the Rx end.
Version 1.12 Section VI - Accessories KA-R25U: Return Video Box Routes Camera video or Return video to ENG view finder controlled by Lens Return button requires third party cabling. Set camera TALLY MENU to “STUDIO”. Ret_(CTRL) Camera VF input VF output RETURN Signal input...
· Enables mounting an Anton Bauer or IDX Mount on the back of the KA-HD250U · AB Mount plate: QX2 · IDX Mount plate: JVC-PV CONTACT : JVC Professional for availability of plate. Four screws to KA-BP250 onto back of KA-HD250U Four screws to Battery Plate onto back of KA-BP250...
Version 1.12 KA-V400U: 6pin/20pin Viewfinder Adapter Enables owners of VF-P400 to reuse their SD VF with a KA-HD250 studio adapter This cable supplies video and power to the VF-P400U from the KA-HD250U. The built in RGB matrix circuit allows the VF-P400U to display all VF functions except focus assist. VF-P400U 6 Pin KA-V400U...
IRIS and Master Black. To use all of the RM-LP25U’s features the GY-HD250U firmware must be updated. The GY-HD250U has the proper firmware if the camcorder has a “Tally” menu. The “Tally” menu item should be on page two of the GY-HD250U’s “Others”...
Remote Control Panels – RM-LP55, RM-LP57,RM-LP25, RM-LP35 Firmware Upgrade: Firmware upgrade of GY-HD250U is required for the new camera control features introduced by the RM-HP250AU to be activated To check if your camcorder has the required firmware visit JVC’s professional products website at click on the support tab;...
RM-HP250AU Interconnect Diagram RM-HP250AU 5m /6pin mini din RM-LP25U/55/57 Cable made by system integrator 26Pin 6pin Hirose din to 6pin Mini din RM-LP35U Version 1.12 GY-HD250U w/Sled Copperhead base station Camplex Base station...
Interfacing RM-HP250AU with common Intercom system The RM-HP250AU can be connected either a two wire balanced or two wire unbalanced intercom system. The table below lists common intercom systems, audio type (balanced or unbalanced), system impedance and manufacture. Intercom System Clear-Com Audiocom®...
Connection to an unbalanced audio Intercom system Connection between XLR-3pin and the RM-HP250AU When connecting to a 2W RTS intercom system to the RM-HP250AU as shown in Fig. 1. As indicated below connect the RTS pin-2 to the RM-HP250AU’s H terminal if audio CH1 is being used. If audio CH2 is used, then connect pin-3 to the RM-HP250AU’s H terminal.
Connection to a balanced audio Intercom system Connect ion between XLR-3pin and the RM-HP250AU When connecting to a 2 wire balanced system such as Audio-com ® connect three pin microphone XLRs to the RM-HP250AU as shown in Fig. 3. RM-HP250AU REAR PANEL XLR-3pin Fig.
VC-Y250US: Y XLR Power Cable Firmware Upgrade: Firmware upgrade of GY-HD250U is required for the VF-HP840U return video switching and tally display to work. To check if your camcorder has the required firmware visit JVC’s professional products website at http://pro.jvc.com/;click on the support tab;...
VF-HP840U and the GY-HD250U/GY-HD200UB without KA-HD250U. Required Camcorder and VF-HP840U settings: • Set the GY-HD250U/GY-HD200UB Camera’s “VF SIGNAL” in the “LCD/VF” menu to “COMPONENT” (GY-HD200U does not have this function). • Set the VF-HP840U’s DIP switch 4 to “OFF” position. This terminates the video inputted into the VF-HP840U with 75Ω.
Version 1.12 Power applied to GY-HD250U/GY-HD200UB via Battery Mount Power VF-HP840U Power Tap Video (Anton Bauer) VC-P840U Copperhead SA-K840 (Telecast Fiber) Endura-7S (IDX) Dionic 90 GY-HD250U / GY-HD200UB (Anton Bauer) AB or IDX Battery Mount Plate...
Version 1.12 Power applied to GY-HD250U/GY-HD200UB via 4 pin XLR Power VF-HP840U Video VC-P840U CP301C SA-K840 (CAMPLEX) VC-Y250US (Anton Bauer) VL-2 PLUS (IDX) GY-HD250U / GY-HD200UB AB or IDX Battery Mount Plate...
KA-HD300U: Portable HD Studio Adapter Key Features : Complete mobile 26-pin studio solution for GY-HD250U Easy V-mount click-on mounting, small, compact and lightweight Intercom and Genlock functionality in SD and HD mode Return video support with KA-R25U (Supplied) ...
Pro HD Cam corder KA-HD250U Studio Adapter KA-HD300E Studio Adapter VF-P400U SD 4" B&W m onitor CRT VF-HP840U 8.4" HD/SD View finder VF-HP840U to GY-HD250U VC-P840U View finder cable VC-Y250US Y XLR Pow er cable KA-BP250U Interm ediate plate KA-R25U Return Video Box Th 13X3.5BRM...
