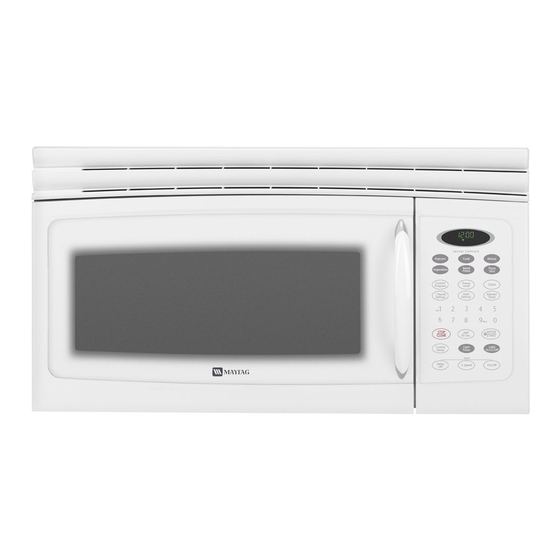

Maytag MMV5165BAW - 1.6 cu. Ft. Microwave Installation Instructions Manual

Over the range microwave oven
Hide thumbs

Advertisement

Installation Instructions
Over the Range Microwave Oven
BEFORE YOU BEGIN
Read these instructions
completely
and carefully.
IMPORTANT
-- Save these instructions
for
local inspector's
use.
IMPORTANT
-- Observe
all governing
codes
and ordinances.
Note to Installer-
Be sure to leave these
instructions
with the Consumer.
Note to Consumer-
Keep these instructions for
future reference.
Skill
level - Installation
of this appliance
requires
basic mechanical
and electrical
skills.
Proper installation
is the responsibility
of the
installer.
Product failure due to improper
installation
is not
covered
under the Warranty.
READ CAREFULLY.
KEEP THESE INSTRUCTIONS.

Advertisement

Table of Contents
loading

  Also See for Maytag MMV5165BAW - 1.6 cu. Ft. Microwave

  Related Manuals for Maytag MMV5165BAW - 1.6 cu. Ft. Microwave

  Summary of Contents for Maytag MMV5165BAW - 1.6 cu. Ft. Microwave

  • Page 1 Installation Instructions Over the Range Microwave Oven BEFORE YOU BEGIN Read these instructions completely and carefully. • Note to Consumer- Keep these instructions for future reference. IMPORTANT • -- Save these instructions • Skill level - Installation of this appliance requires local inspector's use.
  • Page 2: Table Of Contents

    Installation Instructions CONTENTS General information Outside Back Exhaust ......18-21 Preparing Rear Wall ........ Important Safety Instructions ..... Attach Mounting Plate to Wall ... 18, 19 Electrical Requirements ......Preparation of Top Cabinet ..... Hood Exhaust ........... 4, 5 Adjust Blower ........
  • Page 3: Important Safety Instructions

    Installation Instructions IMPORTANT SAFETY INSTRUCTIONS This product requires a three-prong grounded outlet. You should have the wall receptacle and circuit The installer must perform a ground continuity check checked by a qualified electrician to make sure on the power outlet box before beginning the receptacle is properly grounded.
  • Page 4: Hood Exhaust

    Installation Instructions HOOD EXHAUST NOTE: Read these next two pages only if you plan to vent your exhaust to the outside. If you plan to recirculate the air back into the room, proceed to page 11. OUTSIDE TOP EXHAUST (EXAMPLE ONLY) The following chart describes an example...
  • Page 5 Installation Instructions Maximum duct length: NOTE: If you need to install ducts, note that the total duct length of 3¼" x 10" rectangular or 6" diameter For satisfactory air movement, the total duct length of round duct should not exceed 60 equivalent feet.
  • Page 6: Damage - Shipment/Installation

    Installation Instructions DAMAGE - SHIPMENT/ PARTS INCLUDED INSTALLATION HARDWARE PACKET • If the unit is damaged in shipment, return the unit to the store in which it was bought for repair PART QUANTITY or replacement. Wood Screws • If the unit is damaged by the customer, repair (¼"...
  • Page 7: Tools You Will Need

    Installation Instructions TOOLS YOU WILL NEED Ruler or tape measure .._and straight edge # ! and #2 Phillips screwdriver Pencil (optional) Tin snips (for cutting Scissors Electric drill with _/2" 3/16", damper, if required) Filler blocks or scrap wood (to cut template, if necessary) and 5/8"...
  • Page 8: Removing The Mounting

    Installation Instructions 1.PLACEMENT OF THE MOUNTING PLATE A. REMOVING THE MICROWAVE B. FINDING THE WALL STUDS OVEN FROM THE CARTON/ REMOVING THE MOUNTING PLATE Remove the installation instructions, Exhaust adaptor, filters, glass tray and the small hardware bag. Do not remove the Styrofoam protecting front of the oven.
  • Page 9: Determining Wall Plate Location

    Installation Instructions C. DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET Plate position - beneath framed recessed Plate position - beneath flat bottom cabinet cabinet bottom Draw a vertical line on the wall at the center of 33" to Cooktop the 30" wide space. Tape the Rear Wall Draw a vertical line on the wall at the center of the Template...
  • Page 10: Aligning The Wall Plate

    Installation Instructions D. ALIGNING THE WALL PLATE REAR WALk TEMPLATE _;:_,,_!_: ......Centedine Draw a Vertical Line notches on Wall from Center ____ of Top Cabinet I'''- Horizontal Line Area E Hole B Horizontal Line Draw a Horizontal line on wall from bottom of "Rear Wall Template".
  • Page 11: Installation Types

    Installation Instructions 2. INSTALLATION TYPES (Choose A, B or C) This microwave oven is designed for adaptation NOTE: This microwave is shipped assembled the following three types of ventilation: "Recirculating". And exhaust adaptor is shipped after being assembled to the filler-upper. Select the type of A.
  • Page 12 Installation Instructions A. RECIRCULATING (Non-Vented Ductless) INSTALLATION OVERVIEW A1. Attach Mounting Plate to Wall A2. Prepare Top Cabinet A3. Mount the Microwave Oven AI.__. A TTACH THE MOUNTING PLATE Place the mounting plate against the wall and TO THE WALL insert the toggle wings into the holes on the wall to mount the plate.
  • Page 13: Mount The Microwave

    Installation Instructions MOUNT THE MICROWAVE OVEN Cabinet Front Cabinet Bottom Shelf Filler Block quivalent to Depth of FOR EASIER INSTALLATION AND PERSONAL Cabinet Recess SAFETY, WE RECOMMEND THAT TWO PEOPLE igning Screw INSTALL THIS MICROWAVE OVEN. Microwave Oven Top IMPORTANT: Do not grip or use handle during installation.
  • Page 14: Outside Top Exhaust

    Installation Instructions B. OUTSIDE TOP EXHAUST (Vertical Duct) INSTALLATION OVERVIEW B1. Attach Mounting Plate to Walt B2. Prepare Top Cabinet B3. Adjust Blower B4. Check Damper Operation B5. Mount Microwave Oven B6. Adjust Exhaust Adaptor B7. Connect Ductwork Blm ATTACH THE MOUNTING PLATE To use toggle bolts: TO THE WALL...
  • Page 15 Installation Instructions B2. USE TOP CABINET TEMPLATE Carefully slide the blower motor toward the right, FOR PREPARATION OF TOP and lift it partially out of the opening. Note: The blower wires are long enough to allow CABINET flexible handling while performing these steps.
  • Page 16: Oven

    Installation Instructions MOUNT THE MICROWAVE OVEN 7. Secure the blower unit to the microwave with the two screws removed in Step 2. sRce t eawn i_ screw etaining FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE 8. Close the blower cover and secure...
  • Page 17: Oven

    Installation Instructions B5.m.. MOUNT THE MICROWAVE OVEN B6. ADJUST THE EXHAUST ADAPTOR (cont.) Open the top cabinet and adjust the exhaust adaptor to connect to the house duct. Cabinet Front Back of Cabinet Bottom Shelf Microwave Filler Block Depth of Cabinet Equivalent to Recess For Front-to-Back...
  • Page 18 Installation Instructions C, OUTSIDE BACK EXHAUST (Horizontal Duct) INSTALLATION OVERVIEW C1. Prepare Rear Wall C2. Attach Mounting Plate to Wall C3. Prepare Top Cabinet C4. Adjust Blower C5. Mount the Microwave Oven ÷ ..Clm PREPARING THE REAR WALL C2m ATTACH THE MOUNTING PLATE FOR OUTSIDE BACK EXHAUST...
  • Page 19 Installation Instructions C2.__. ATTACH THE MOUNTING PLATE C4. ADAPTING MICROWAVE BLOWER FOR OUTSIDE BACK TO THE WALL (cont.) EXHAUST To use toggle bolts" 1. Remove the back top center blower motor door Spacing for Toggles More Than Wall Thickness retaining screw.
  • Page 20: Adaptor

    Installation Instructions MOUNT THE MICROWAVE OVEN 5. Roll the blower unit so that the right exhaust outlet faces the rear. Snap the inlet sleeve back onto the left side with the opening facing down. Note: The left side sleeve opening must always face downward.
  • Page 21 Installation Instructions C5.__. MOUNT THE MICROWAVE OVEN (cont.) Attach the microwave oven to the top cabinet. Cabinet Front Cabinet Bottom Shelf Filler Block Depth of Cabinet Recess Equivalent gning Screw Microwave Oven Top 5. Insert 1 self-aligning screws through outer top cabinet holes.
  • Page 22: Before You Use Your Microwave

    Installation Instructions BEFORE YOU USE YOUR MICROWAVE Make sure the microwave oven has been Read the Owner's Manual. installed according to instructions. 7, KEEP INSTALLATION INSTRUCTIONS 2, Remove all packing material from the microwave oven. THE LOCAL INSPECTOR'S USE. 3. Install turntable and ring in cavity.
  • Page 23 Installation Instructions NOTE...
  • Page 24 Part No. : 8101 P679-60 Form No. : A/08/05 Code No. : DE68-03141A...
