Whirlpool WED5510VQ Parts List page 5

Illus. Part
No. No. DESCRIPTION
1 348368 Lint Chute
Assembly
2 489463 Screw, 8−18 x 5/8
3 3388703 Washer−Support
4 347139 Seal, Lint
Chute
5 90767 Screw, 8−18 x 3/8
6 696302 Shield, Exhaust
7 3392519 Thermal Fuse
8 3387134 Thermostat,
Internal−Bias
9 3977393 Thermal Cut−Off
(Includes
Illus. 15)
10 694089 Wheel, Blower
(Includes
Illus. 22)
W10252020

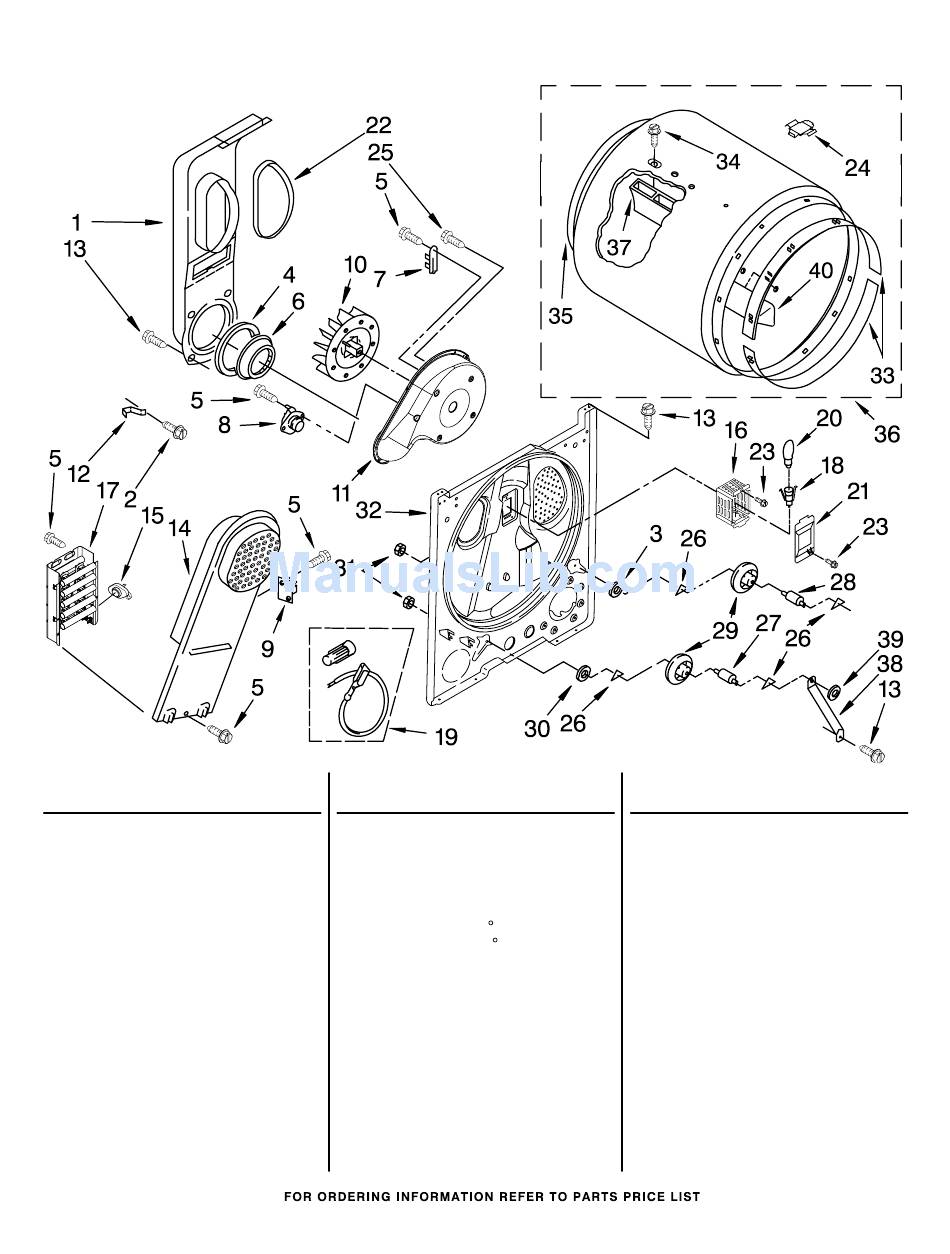

BULKHEAD PARTS
For Model: WED5510VQ0
(Designer White)
Illus. Part
No. No. DESCRIPTION
11 8577230 Housing, Blower
12 8066155 Clip
13 343641 Screw, 10−16 x 1/2
14 8541818 Box, Heater
15 3977767 Thermostat,
221 F
(105 C)
16 3977373 Bracket,
Drum Light
17 3403585 Element, Heater
18 W10136369 Socket Assembly
19 279457 Wire Kit, Terminal
(For Heater
Element Wiring
Harness Repair)
20 3406124 Bulb, Light
21 3402841 Lens,
Drum Light
22 339956 Seal
5
Illus. Part
No. No. DESCRIPTION
23 487909 Screw, 8−15 x 1/2
24 8066086 Drum Hole
Plug
25 3390647 Screw, 8−18 x 1/2
26 690997 Ring, Tri
27 3399506 Shaft, L.H.
28 3399507 Shaft, R.H.
29 3397590 Roller, Support
30 348197 Washer, Support
31 3359452 Nut, 3/8−16
32 3403493 Bulkhead
33 692526 Ring, Bearing
34 W10219342 Screw, 8−16 x 1/2
35 3406130 Seal, Rear Drum
36 695587 Drum Assembly
37 692490 Baffle, Drum (2)
38 3976434 Bracket, Support
39 90296 Clip
40 3403636 Baffle, Drum (1)
