Whirlpool WED5510VQ Parts List

Whirlpool WED5510VQ Parts List

29"electric dryer
Hide thumbs Also See for WED5510VQ:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual See also: Instructions for Using
CABINET PARTS
29"ELECTRIC DRYER
For Model: WED5510VQ0
(Designer White)
Part No. W10252020 Rev. A
2−09 Litho in U.S.A. (LT)(bay)
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the WED5510VQ and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Whirlpool WED5510VQ

Summary of Contents for Whirlpool WED5510VQ

  • Page 1 CABINET PARTS 29"ELECTRIC DRYER For Model: WED5510VQ0 (Designer White) Part No. W10252020 Rev. A 2−09 Litho in U.S.A. (LT)(bay)

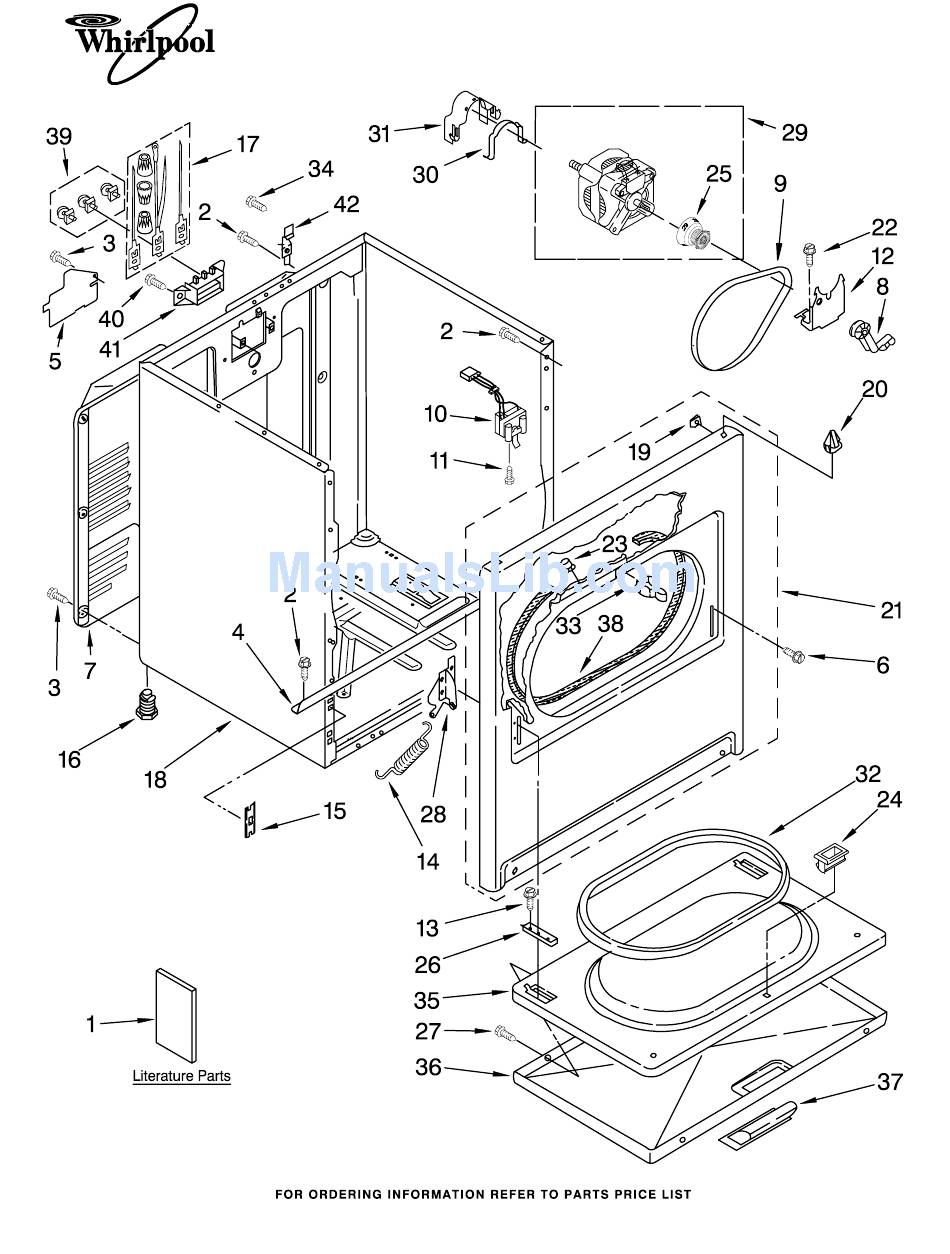

  • Page 2: Cabinet Parts

    CABINET PARTS For Model: WED5510VQ0 (Designer White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 697773 Screw, 6−20 x 7/8 337189 Clip, Hinge (2) W10150612 Installation 348780 Base, Motor 694091 Screw, 8−18 x 3/8 Instructions 3357011 Screw, 10−16 x 1/2 8066056 Hinge, R.H.
  • Page 3 TOP AND CONSOLE PARTS For Model: WED5510VQ0 (Designer White) W10252020...
  • Page 4 TOP AND CONSOLE PARTS For Model: WED5510VQ0 (Designer White) Illus. Part DESCRIPTION 8274261 Panel, Rear Console 8539893 Wire, Jumper (Temp. Switch) 694419 Buzzer 8271365 Cap, End (L.H.) 3399639 Switch, Rotary 388326 Screw, Console 693995 Screw, Hex Head 8271359 Cap, End (R.H.) 3395683 Housing, Connector (Motor) 8557857 Screen, Lint...
  • Page 5 BULKHEAD PARTS For Model: WED5510VQ0 (Designer White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 487909 Screw, 8−15 x 1/2 8577230 Housing, Blower 348368 Lint Chute 8066086 Drum Hole 8066155 Clip Assembly Plug 343641 Screw, 10−16 x 1/2 489463 Screw, 8−18 x 5/8 3390647 Screw, 8−18 x 1/2 8541818 Box, Heater 3388703 Washer−Support...
  • Page 6 OPTIONAL PARTS (NOT INCLUDED) For Model: WED5510VQ0 (Designer White) Illus. Part DESCRIPTION ACCESSORY PARTS 279948 Kit, Dryer Repair 8522199 Kit, Dryer Vent Testing 3404351 Dry Rack PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray PAINT, BULK (1 qt.) 799344 White (Uncut) W10252020...

This manual is also suitable for:

Wed5510vq0
