Why is my Whirlpool dryer not getting hot?

If your dryer is not getting hot, check the following:A household fuse may have blown, or a circuit breaker may have tripped. Electric dryers use two household fuses or circuit breakers. Replace the fuse or reset the circuit breaker. If the problem persists, call an electrician.For gas dryers, ensure the valve on the supply line is open. For more information, see page 9 of the manual.

Why does my Whirlpool dryer not dry clothes effectively?

If your dryer is not drying clothes effectively or drying times are too long, check the following:The lint screen may be clogged with lint. Clean the lint screen before each load.The exhaust vent or outside exhaust hood may be clogged with lint, restricting air movement. Run the dryer for 5-10 minutes and hold your hand under the outside exhaust hood to check air movement. If you don't feel air movement, clean the exhaust system of lint or replace the exhaust vent with heavy metal or flexible metal vent.Fabric softener sheets may be blocking the grille. Use only one fabric softener sheet, and use it only once.The exhaust vent may not be the correct length or have too many turns. Long venting will increase drying times.The exhaust vent diameter may not be the correct size. Use 4" (102 mm) diameter vent material.The dryer may be located in a room with a temperature below 45°F (7°C). Proper operation of dryer cycles requires temperatures above 45°F (7°C).The dryer may be located in a closet without proper ventilation. Closet doors must have ventilation openings at the top and bottom.The load may be too large and heavy to dry quickly. Separate the load to tumble freely.The automatic cycle may be ending early because the load is not contacting the sensor strips. Level the dryer. Change the dryness level setting on Automatic Cycles.

Why is my Whirlpool dryer not starting but has power?

If your dryer is not starting but has power, check the following:A household fuse may have blown, or a circuit breaker may have tripped. Electric dryers use 2 household fuses or circuit breakers. Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.Ensure the correct 240-volt power supply is available for electric dryers.If a regular fuse was used, use a time-delay fuse.Ensure the dryer door is firmly closed.Ensure the Start button or knob was firmly pressed.Make sure a cycle is selected. The dryer will not start in the Wrinkle Prevent position; move the dial past OFF. For more information, see page 9 of the manual.

How to clean Whirlpool dryer vent?

The exhaust vent should be cleaned periodically by qualified service personnel. You should also remove lint from the entire length of the vent system at least every 2 years, or more often depending on dryer usage. When cleaning is complete, be sure to follow the Installation Instructions supplied with your dryer for final product check. For more information, see pages 2, 3 and 7 of the manual.

How to diagnose a Whirlpool dryer?

To diagnose issues with your dryer, refer to the Troubleshooting section in the manual, which provides solutions for common problems like the dryer not running, no heat, unusual sounds, timer not noticeably advancing, and clothes not drying satisfactorily or drying times being too long. For more information, see page 9 of the manual.

How to clean the lint filter on a Whirlpool dryer?

To clean the lint screen:The lint screen is located on top of the dryer or in the door.Pull the lint screen straight up or toward you.Roll lint off the screen with your fingers. Do not rinse or wash the screen to remove lint, as wet lint is hard to remove.Push the lint screen firmly back into place. For As Needed Cleaning to remove residue buildup:Wet both sides of the lint screen with hot water.Wet a nylon brush with hot water and liquid detergent. Scrub the lint screen with the brush to remove residue buildup.Rinse the screen with hot water.Thoroughly dry the lint screen with a clean towel. Replace the screen in the dryer. Clean the lint screen before each load as a blocked screen can increase drying time. Do not run the dryer with the lint screen loose, damaged, blocked, or missing, as this can cause overheating and damage. For more information, see page 7 of the manual.

Why is my gas Whirlpool dryer not heating up?

If your gas dryer is not heating up, ensure the valve on the supply line is open. Also, check if a household fuse has blown or a circuit breaker has tripped. Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician. For more information, see page 9 of the manual.

What do the different drying cycles on the Whirlpool 1W10287573A dryer mean?

The different drying cycles on the Whirlpool dryer include:Automatic Dry or ACCUDRY™: Senses moisture in the load or air temperature and shuts off when the load reaches the selected dryness level. It provides the best drying in the shortest time.Automatic Dry High Heat: For Jeans, heavy work clothes, towels.Automatic Dry Low Heat: For Casual, shirts, pants, lightweight items.Jeans: Thoroughly dries denims.Towels: Thoroughly dries extra-heavy items like towels, mattress pads, quilts.Very Dry or More Dry: Removes more load moisture than the Energy Preferred cycle.Energy Preferred Automatic Setting: Use as your starting point for automatic drying for most loads.Delicate: Gently dries delicate items, small loads, lightweight items.Less Dry: Removes less moisture than the Energy Preferred cycle. Seams may feel slightly damp.Timed Dry: Runs the dryer for the specified time on the control.Timed Dry High Heat: Completes drying if items are still damp, for heavy or bulky items.Heavy Dry or Heavy Duty: Evenly dries large or heavy loads such as thick towels or robes.Damp Dry: Dries items to a damp level or for items that do not require an entire drying cycle.Tumble Press®: Helps smooth out wrinkles.Air Only or Fluff Air: No-heat drying for rubber, plastic, heat-sensitive fabrics.Special Settings (added at the end of certain cycles to reduce wrinkling):Cool Down: Slowly cools the load to reduce wrinkling and make it easier to handle.Wrinkle Shield™: Periodically starts and stops the dryer, tumbling the load to avoid wrinkling. For more information, see page 5 of the manual.

What does the control panel display on the Whirlpool 1W10287573A dryer indicate?

The control panel includes:Cycle Selector (Timer) Control: Used to select Automatic Dry/ACCUDRY™ System cycles (such as Heavy Dry, Jeans, Very Dry, Energy Preferred, Delicate, Less Dry) and Timed Dry cycles (such as Timed Dry, Damp Dry, Tumble Press®, Air Only).Temperature Control (on some models): Allows selection of High, Low to Medium, Extra-Low, or no heat (air) settings.Wrinkle Shield™ setting: Tumbles the load without heat to help avoid wrinkling.End of Cycle Signal: Sounds when a cycle is complete.Push To Start button. For more information, see page 4 of the manual.

How to find my Whirlpool dryer model number?

The model number and serial number can be found on the label located at the top inside the dryer door well. For more information, see page 1 of the manual.

How can I improve the energy efficiency of my Whirlpool dryer?

To improve the energy efficiency of your dryer:Ensure proper venting, as this will reduce drying times and improve energy savings.Clean the lint screen before each load, as a blocked screen can increase drying time.Maintain good airflow by removing lint and debris from the exhaust hood and removing lint from the entire length of the vent system at least every 2 years.Clear away items from the front of the dryer.

How long should a Whirlpool dryer take to dry a load?

The drying time with an automatic cycle varies according to the type of fabric, size of load, and temperature setting. For Automatic Dry cycles, drying time varies based on fabric type, load size, and dryness setting.

Why is my Whirlpool dryer stuck on the sensing cycle?

If your dryer's automatic cycle is not functioning as expected, it might be because the load is not contacting the sensor strips. To address this, level the dryer. Also, note that the timer for automatic drying cycles only moves when the clothing is mostly dry.

How often should I clean the Whirlpool dryer vent?

Lint should be removed from the entire length of the vent system at least every 2 years, or more often, depending on dryer usage. The interior of the dryer and exhaust vent should be cleaned periodically by qualified service personnel.

How do I properly load clothes into my Whirlpool dryer to ensure even drying?

To ensure even drying, load clothes loosely into the dryer and close the door. Do not pack the dryer; for best results, allow space for clothes to tumble freely. If the load is too large and heavy, separate it to allow items to tumble freely.

How do I adjust the dryness level settings on my Whirlpool 1W10287573A dryer?

For Automatic Dry cycles, the dryer senses the moisture level and shuts off when the load reaches the selected dryness.If the load is drier than you like, select a setting closer to Less Dry the next time you dry a similar load.If the load is not as dry as you want, select a Timed cycle to complete drying and the next time, choose a setting closer to Very Dry.The Cycle Selector (Timer) control has settings like Energy Preferred, Less Dry, and Very Dry or More Dry to adjust the dryness level.Increasing or decreasing the dryness level will change the amount of drying time in a cycle.

Can I dry delicate items in my Whirlpool 1W10287573A dryer?

Yes, you can dry delicate items. The dryer has a Delicate cycle that gently dries small loads and lightweight items. You can also use an Extra-Low heat setting for drying lightweight items such as lingerie.

How to extend the lifespan of a Whirlpool dryer?

To help maintain your dryer:Keep the dryer area clear and free from items that would block airflow.Clean the lint screen before each load.Remove lint and debris from the exhaust hood.Remove lint from the entire length of the vent system at least every 2 years, or more often depending on dryer usage.Periodically clean the interior of the dryer drum.Do not run the dryer with the lint screen loose, damaged, blocked, or missing.

How to use a Whirlpool dryer?

To use your dryer:Clean the lint screen before each load.Load clothes loosely into the dryer and close the door, ensuring space for clothes to tumble freely.Turn the Cycle Control knob to the recommended cycle for the type of load being dried. The Energy Preferred Automatic Setting is recommended for most heavy to medium-weight fabrics.If your dryer has a Temperature selector, set it to the recommended setting for the type of fabric being dried.(Optional) If your dryer has a Wrinkle Shield™ feature, use it to avoid wrinkling when you are unable to remove a load from the dryer as soon as it stops.(Optional) If your dryer has an End of Cycle Signal, turn the Start button to ON or OFF. The signal will sound only if the selector is set to On.If desired, add a fabric softener sheet following package instructions.Push the Start button or knob. To stop the dryer anytime during a cycle, open the dryer door or turn the Cycle Control knob to OFF. For more information, see page 6 of the manual.

How to start a Whirlpool dryer?

To start your dryer:Clean the lint screen before each load.Load clothes loosely into the dryer and close the door.Turn the Cycle Control knob to the recommended cycle.If your dryer has a Temperature selector, set it to the recommended setting.(Optional) If your dryer has a Wrinkle Shield™ feature selector, use this to avoid wrinkling.(Optional) If your dryer has an End of Cycle Signal, turn the Start button to ON or OFF.If desired, add a fabric softener sheet.Push the Start button or knob. For more information, see page 6 of the manual.

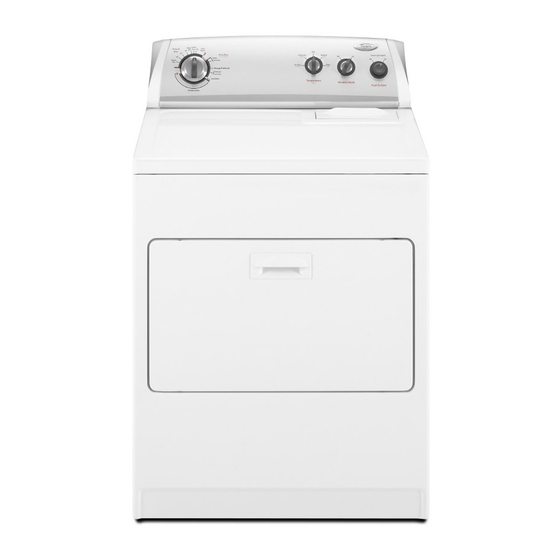

Whirlpool 1W10287573A User Instructions

Whirlpool clothes dryer user manual

Hide thumbs

Table of Contents

Table of Contents
Dryer Safety
Check Your Vent System for Good Air Flow
Control Panel
Cycle Guide
Dryer Use
Dryer Care
- Vacation and Moving Care
- Changing the Drum Light
Troubleshooting
Warranty
Keep this Book and Your Sales Slip Together for Future
Reference. You Must Provide Proof of Purchase or Installation
Date for In-Warranty Service
Write down the Following Information about Your Appliance to
Sécurité de la Sécheuse
Tableau de Commande
Guide des Programmes
Utilisation de la Sécheuse
Entretien de la Sécheuse
Dépannage
Garantie
Conservez Ce Manuel Et Votre Reçu de Vente Ensemble Pour
Référence Ultérieure. Pour Le Service Sous Garantie, Vous
Devez Présenter un Document Prouvant la Date D'achat Ou

Available languages

Quick Links

INSTRUCTIONS POUR L'UTILISATEUR DE LA SÉCHEUSE

DRYER SAFETY ....................................................................... 1

CONTROL PANEL .................................................................... 4

CYCLE GUIDE .......................................................................... 5

DRYER USE .............................................................................. 6

DRYER CARE ........................................................................... 7

TROUBLESHOOTING .............................................................. 9

WARRANTY ............................................................................ 11

ASSISTANCE OR SERVICE ................................BACk COVER

keep this book and your sales slip together for future

reference. You must provide proof of purchase or installation

date for in-warranty service.

Write down the following information about your appliance to

help you obtain assistance or service if you ever need it. You will

need to know your complete model number and serial number.

You can find this information on the model and serial number

label, located at the top inside dryer door well.

Dealer name _____________________________________________

Serial number ____________________________________________

Address __________________________________________________

Phone number ____________________________________________

Model number ____________________________________________

Purchase date ____________________________________________

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."

These words mean:

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

W10287573A

DRYER USER INSTRUCTIONS

Your safety and the safety of others are very important.

DANGER

WARNING

SÉCURITÉ DE LA SÉCHEUSE .............................................. 12

TABLEAU DE COMMANDE ................................................... 16

GUIDE DES PROGRAMMES ................................................. 17

UTILISATION DE LA SÉCHEUSE .......................................... 18

ENTRETIEN DE LA SÉCHEUSE ............................................ 19

DÉPANNAGE .......................................................................... 21

GARANTIE .............................................................................. 23

ASSISTANCE OU SERVICE ............. COUVERTURE ARRIÈRE

Conservez ce manuel et votre reçu de vente ensemble pour

référence ultérieure. Pour le service sous garantie, vous

devez présenter un document prouvant la date d'achat ou

d'installation.

Inscrivez les renseignements suivants au sujet de votre appareil

ménager pour mieux vous aider à obtenir assistance ou service

en cas de besoin. Vous devrez connaître le numéro de modèle

et le numéro de série au complet. Cette information est donnée

sur la plaque signalétique indiquant les numéros de modèle et

de série, située dans le logement de la porte à l'intérieur de la

sécheuse.

Nom du marchand ________________________________________

Numéro de série __________________________________________

Adresse __________________________________________________

Numéro de téléphone _____________________________________

Numéro de modèle _______________________________________

Date d'achat _____________________________________________

DRYER SAFETY

You can be killed or seriously injured if you don't immediately

follow instructions.

You

can be killed or seriously injured if you don't follow

instructions.

Table des matières

Table of Contents

Why is my Whirlpool dryer not getting hot?
If your dryer is not getting hot, check the following:
- A household fuse may have blown, or a circuit breaker may have tripped. Electric dryers use two household fuses or circuit breakers. Replace the fuse or reset the circuit breaker. If the problem persists, call an electrician.
- For gas dryers, ensure the valve on the supply line is open.
For more information, see page 9 of the manual.
Was this helpful?
Why does my Whirlpool dryer not dry clothes effectively?
If your dryer is not drying clothes effectively or drying times are too long, check the following:
- The lint screen may be clogged with lint. Clean the lint screen before each load.
- The exhaust vent or outside exhaust hood may be clogged with lint, restricting air movement. Run the dryer for 5-10 minutes and hold your hand under the outside exhaust hood to check air movement. If you don't feel air movement, clean the exhaust system of lint or replace the exhaust vent with heavy metal or flexible metal vent.
- Fabric softener sheets may be blocking the grille. Use only one fabric softener sheet, and use it only once.
- The exhaust vent may not be the correct length or have too many turns. Long venting will increase drying times.
- The exhaust vent diameter may not be the correct size. Use 4" (102 mm) diameter vent material.
- The dryer may be located in a room with a temperature below 45°F (7°C). Proper operation of dryer cycles requires temperatures above 45°F (7°C).
- The dryer may be located in a closet without proper ventilation. Closet doors must have ventilation openings at the top and bottom.
- The load may be too large and heavy to dry quickly. Separate the load to tumble freely.
- The automatic cycle may be ending early because the load is not contacting the sensor strips. Level the dryer. Change the dryness level setting on Automatic Cycles.
Was this helpful?
Why is my Whirlpool dryer not starting but has power?
If your dryer is not starting but has power, check the following:
- A household fuse may have blown, or a circuit breaker may have tripped. Electric dryers use 2 household fuses or circuit breakers. Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.
- Ensure the correct 240-volt power supply is available for electric dryers.
- If a regular fuse was used, use a time-delay fuse.
- Ensure the dryer door is firmly closed.
- Ensure the Start button or knob was firmly pressed.
- Make sure a cycle is selected. The dryer will not start in the Wrinkle Prevent position; move the dial past OFF.
For more information, see page 9 of the manual.
Was this helpful?
How to clean Whirlpool dryer vent?

The exhaust vent should be cleaned periodically by qualified service personnel. You should also remove lint from the entire length of the vent system at least every 2 years, or more often depending on dryer usage. When cleaning is complete, be sure to follow the Installation Instructions supplied with your dryer for final product check.

For more information, see pages 2, 3 and 7 of the manual.

Was this helpful?
How to diagnose a Whirlpool dryer?

To diagnose issues with your dryer, refer to the Troubleshooting section in the manual, which provides solutions for common problems like the dryer not running, no heat, unusual sounds, timer not noticeably advancing, and clothes not drying satisfactorily or drying times being too long.

For more information, see page 9 of the manual.

Was this helpful?
How to clean the lint filter on a Whirlpool dryer?
To clean the lint screen:
- The lint screen is located on top of the dryer or in the door.
- Pull the lint screen straight up or toward you.
- Roll lint off the screen with your fingers. Do not rinse or wash the screen to remove lint, as wet lint is hard to remove.
- Push the lint screen firmly back into place. For As Needed Cleaning to remove residue buildup:
- Wet both sides of the lint screen with hot water.
- Wet a nylon brush with hot water and liquid detergent. Scrub the lint screen with the brush to remove residue buildup.
- Rinse the screen with hot water.
- Thoroughly dry the lint screen with a clean towel. Replace the screen in the dryer. Clean the lint screen before each load as a blocked screen can increase drying time. Do not run the dryer with the lint screen loose, damaged, blocked, or missing, as this can cause overheating and damage.
For more information, see page 7 of the manual.
Was this helpful?
Why is my gas Whirlpool dryer not heating up?

If your gas dryer is not heating up, ensure the valve on the supply line is open. Also, check if a household fuse has blown or a circuit breaker has tripped. Replace the fuse or reset the circuit breaker. If the problem continues, call an electrician.

For more information, see page 9 of the manual.

Was this helpful?
What do the different drying cycles on the Whirlpool 1W10287573A dryer mean?
The different drying cycles on the Whirlpool dryer include:
- Automatic Dry or ACCUDRY™: Senses moisture in the load or air temperature and shuts off when the load reaches the selected dryness level. It provides the best drying in the shortest time.
  - Automatic Dry High Heat: For Jeans, heavy work clothes, towels.
  - Automatic Dry Low Heat: For Casual, shirts, pants, lightweight items.
  - Jeans: Thoroughly dries denims.
  - Towels: Thoroughly dries extra-heavy items like towels, mattress pads, quilts.
  - Very Dry or More Dry: Removes more load moisture than the Energy Preferred cycle.
  - Energy Preferred Automatic Setting: Use as your starting point for automatic drying for most loads.
  - Delicate: Gently dries delicate items, small loads, lightweight items.
  - Less Dry: Removes less moisture than the Energy Preferred cycle. Seams may feel slightly damp.
- Timed Dry: Runs the dryer for the specified time on the control.
  - Timed Dry High Heat: Completes drying if items are still damp, for heavy or bulky items.
  - Heavy Dry or Heavy Duty: Evenly dries large or heavy loads such as thick towels or robes.
  - Damp Dry: Dries items to a damp level or for items that do not require an entire drying cycle.
  - Tumble Press®: Helps smooth out wrinkles.
  - Air Only or Fluff Air: No-heat drying for rubber, plastic, heat-sensitive fabrics.
- Special Settings (added at the end of certain cycles to reduce wrinkling):
  - Cool Down: Slowly cools the load to reduce wrinkling and make it easier to handle.
  - Wrinkle Shield™: Periodically starts and stops the dryer, tumbling the load to avoid wrinkling.
For more information, see page 5 of the manual.
Was this helpful?
What does the control panel display on the Whirlpool 1W10287573A dryer indicate?
The control panel includes:
- Cycle Selector (Timer) Control: Used to select Automatic Dry/ACCUDRY™ System cycles (such as Heavy Dry, Jeans, Very Dry, Energy Preferred, Delicate, Less Dry) and Timed Dry cycles (such as Timed Dry, Damp Dry, Tumble Press®, Air Only).
- Temperature Control (on some models): Allows selection of High, Low to Medium, Extra-Low, or no heat (air) settings.
- Wrinkle Shield™ setting: Tumbles the load without heat to help avoid wrinkling.
- End of Cycle Signal: Sounds when a cycle is complete.
- Push To Start button.
For more information, see page 4 of the manual.
Was this helpful?
How to find my Whirlpool dryer model number?

The model number and serial number can be found on the label located at the top inside the dryer door well.

For more information, see page 1 of the manual.

Was this helpful?
How can I improve the energy efficiency of my Whirlpool dryer?
To improve the energy efficiency of your dryer:
- Ensure proper venting, as this will reduce drying times and improve energy savings.
- Clean the lint screen before each load, as a blocked screen can increase drying time.
- Maintain good airflow by removing lint and debris from the exhaust hood and removing lint from the entire length of the vent system at least every 2 years.
- Clear away items from the front of the dryer.
Was this helpful?
How long should a Whirlpool dryer take to dry a load?

The drying time with an automatic cycle varies according to the type of fabric, size of load, and temperature setting. For Automatic Dry cycles, drying time varies based on fabric type, load size, and dryness setting.

Was this helpful?
Why is my Whirlpool dryer stuck on the sensing cycle?

If your dryer's automatic cycle is not functioning as expected, it might be because the load is not contacting the sensor strips. To address this, level the dryer. Also, note that the timer for automatic drying cycles only moves when the clothing is mostly dry.

Was this helpful?
How often should I clean the Whirlpool dryer vent?

Lint should be removed from the entire length of the vent system at least every 2 years, or more often, depending on dryer usage. The interior of the dryer and exhaust vent should be cleaned periodically by qualified service personnel.

Was this helpful?
How do I properly load clothes into my Whirlpool dryer to ensure even drying?

To ensure even drying, load clothes loosely into the dryer and close the door. Do not pack the dryer; for best results, allow space for clothes to tumble freely. If the load is too large and heavy, separate it to allow items to tumble freely.

Was this helpful?
How do I adjust the dryness level settings on my Whirlpool 1W10287573A dryer?
For Automatic Dry cycles, the dryer senses the moisture level and shuts off when the load reaches the selected dryness.
- If the load is drier than you like, select a setting closer to Less Dry the next time you dry a similar load.
- If the load is not as dry as you want, select a Timed cycle to complete drying and the next time, choose a setting closer to Very Dry.
- The Cycle Selector (Timer) control has settings like Energy Preferred, Less Dry, and Very Dry or More Dry to adjust the dryness level.
- Increasing or decreasing the dryness level will change the amount of drying time in a cycle.
Was this helpful?
Can I dry delicate items in my Whirlpool 1W10287573A dryer?

Yes, you can dry delicate items. The dryer has a Delicate cycle that gently dries small loads and lightweight items. You can also use an Extra-Low heat setting for drying lightweight items such as lingerie.

Was this helpful?
How to extend the lifespan of a Whirlpool dryer?
To help maintain your dryer:
Was this helpful?
How to use a Whirlpool dryer?
To use your dryer:
- Clean the lint screen before each load.
- Load clothes loosely into the dryer and close the door, ensuring space for clothes to tumble freely.
- Turn the Cycle Control knob to the recommended cycle for the type of load being dried. The Energy Preferred Automatic Setting is recommended for most heavy to medium-weight fabrics.
- If your dryer has a Temperature selector, set it to the recommended setting for the type of fabric being dried.
- (Optional) If your dryer has a Wrinkle Shield™ feature, use it to avoid wrinkling when you are unable to remove a load from the dryer as soon as it stops.
- (Optional) If your dryer has an End of Cycle Signal, turn the Start button to ON or OFF. The signal will sound only if the selector is set to On.
- If desired, add a fabric softener sheet following package instructions.
- Push the Start button or knob. To stop the dryer anytime during a cycle, open the dryer door or turn the Cycle Control knob to OFF.
For more information, see page 6 of the manual.
Was this helpful?
How to start a Whirlpool dryer?
To start your dryer:
- Clean the lint screen before each load.
- Load clothes loosely into the dryer and close the door.
- Turn the Cycle Control knob to the recommended cycle.
- If your dryer has a Temperature selector, set it to the recommended setting.
- (Optional) If your dryer has a Wrinkle Shield™ feature selector, use this to avoid wrinkling.
- (Optional) If your dryer has an End of Cycle Signal, turn the Start button to ON or OFF.
- If desired, add a fabric softener sheet.
- Push the Start button or knob.
For more information, see page 6 of the manual.
Was this helpful?

Need help?

Do you have a question about the 1W10287573A and is the answer not in the manual?

Questions and answers

Summary of Contents for Whirlpool 1W10287573A

Page 1: Table Of Contents
INSTRUCTIONS POUR L'UTILISATEUR DE LA SÉCHEUSE Table of Contents DRYER SAFETY ... 1 CONTROL PANEL ... 4 CYCLE GUIDE ... 5 DRYER USE ... 6 DRYER CARE ... 7 TROUBLESHOOTING ... 9 WARRANTY ... 11 ASSISTANCE OR SERVICE ...BACk COVER keep this book and your sales slip together for future reference.
Page 2 IMPORTANT: The gas installation must conform with local codes, or in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54. The dryer must be electrically grounded in accordance with local codes, or in the absence of local codes, with the National Electrical Code, ANSI/NFPA 70.
Page 3: Check Your Vent System For Good Air Flow
WARNING: For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, or to prevent property damage, personal injury, or death. – Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.
Page 4: Control Panel
Cycle Selector (Timer) Control Automatic Dry/ACCUDRY™ System The Automatic dry cycle takes the guesswork out of drying time and enhances fabric care. The Automatic Dry cycle may be used for most loads. On some models, your dryer uses the electronic ACCUDRY™ system.
Page 5: Cycle Guide
End of Cycle Signal Control (on some models) The End of Cycle signal sounds when a cycle is complete. On some models, the End of Cycle Signal is fixed. On other models, the End of Cycle Signal is selectable and the signal will sound only if set to On.
Page 6: Dryer Use
WARNING Explosion Hazard Keep flammable materials and vapors, such as gasoline, away from dryer. Do not dry anything that has ever had anything flammable on it (even after washing). Failure to follow these instructions can result in death, explosion, or fire. WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS before operating this dryer.
Page 7: Dryer Care
Cleaning the Dryer Location Keep dryer area clear and free from items that would block the air flow for proper dryer operation. This includes clearing piles of laundry in front of the dryer. Cleaning the Lint Screen Clean lint screen before each load. A screen blocked by lint can increase drying time.
Page 8: Vacation And Moving Care
Vacation and Moving Care Vacation Care Operate your dryer only when you are at home. If you will be on vacation or not using your dryer for an extended period of time, you should: Unplug dryer or disconnect power. If you have a gas dryer, close shutoff valve in gas supply line. Clean lint screen.
Page 9: Troubleshooting
First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions) In U.S.A. http://www.whirlpool.com/help - In Canada www.whirlpool.ca Dryer will not run Has a household fuse blown, or has a circuit breaker ■ tripped? Electric dryers use 2 household fuses or circuit breakers. The drum may be turning, but you may not have heat.
Page 10 Is the dryer located in a closet? ■ Closet doors must have ventilation openings at the top and bottom of the door. Sides and front of dryer require a minimum of 1" (25 mm) of airspace, and the rear of the dryer requires 5"...
Page 11: Warranty
5. Cosmetic damage, including scratches, dents, chips or other damage to the finish of your major appliance, unless such damage results from defects in materials or workmanship and is reported to Whirlpool within 30 days from the date of purchase.
Page 12: Sécurité De La Sécheuse
Votre sécurité et celle des autres est très importante. Nous donnons de nombreux messages de sécurité importants dans ce manuel et sur votre appareil ménager. Assurez-vous de toujours lire tous les messages de sécurité et de vous y conformer. Voici le symbole d’alerte de sécurité. Ce symbole d’alerte de sécurité...
Page 13 IMPORTANTES INSTRUCTIONS DE SÉCURITÉ AVERTISSEMENT : Pour réduire le risque d'incendie, de choc électrique ou de blessure lors de l'utilisation de la sécheuse, il convient d'observer certaines précautions élémentaires dont les suivantes : Lire toutes les instructions avant d'utiliser la sécheuse. �...
Page 14 AVERTISSEMENT : L’odorat ne permet pas toujours la détection d’une fuite de gaz. Les distributeurs de gaz recommandent l’emploi d’un détecteur de gaz (homologation UL ou CSA). Pour d’autre information, contacter le fournisseur de gaz local. En cas de détection d’une fuite de gaz, exécuter les instructions “Que faire dans le cas d’une odeur de gaz”.
Page 15 Contrôle du circuit d'évacuation pour une bonne ventilation Pour sécher le linge avec efficacité, les sécheuses utilisent la chaleur, mais une bonne ventilation est également nécessaire. Un circuit d'évacuation adéquat réduit les durées de séchage et la consommation d'énergie. Voir les Instructions d'installation. Le circuit d'évacuation fixé...
Page 16: Tableau De Commande
Toutes les caractéristiques et options ne sont pas disponibles sur tous les modèles. Commande de sélection de programme (minuterie) Système Automatic Dry/ACCUDRY™ (séchage automatique/ACCUDRY™) Le programme de séchage automatique supprime la nécessité de calculer la durée de séchage et apporte davantage de soin aux vêtements.
Page 17: Guide Des Programmes
Signal de fin de programme (sur certains modèles) Le signal de fin de programme retentit à la fin d'un programme. Sur certains modèles, le signal de fin de programme est fixe. Sur d'autres modèles, le signal de fin de programme est sélectionnable et ne retentira que s'il est réglé...
Page 18: Utilisation De La Sécheuse
UTILISATION DE LA SÉCHEUSE AVERTISSEMENT Risque d'explosion Garder les matières et les vapeurs inflammables, telle que l’essence, loin de la sécheuse. Ne pas faire sécher un article qui a déjà été touché par un produit inflammable (même après un lavage). Le non-respect de ces instructions peut causer un décès, une explosion ou un incendie.
Page 19: Entretien De La Sécheuse
Sélectionner un programme de séchage minuté et une température ou un programme de séchage à l'air. Les articles contenant mousse, caoutchouc ou plastique doivent être séchés sur une corde à linge ou par le programme de séchage à l'air. Se référer au tableau suivant. Mettre la sécheuse en marche.
Page 20 REMARQUE : Les vêtements contenant des teintures instables, tels que jeans en denim ou articles en coton de couleur vive, peuvent décolorer l'intérieur de la sécheuse. Ces taches ne sont pas nuisibles à votre sécheuse et ne tacheront pas les vêtements des charges futures.
Page 21: Dépannage
Essayer d'abord les solutions suggérées ici ou visiter notre site Web et consulter notre FAQ (Foire Aux Questions) In U.S.A. http://www.whirlpool.com/help - In Canada www.whirlpool.ca La sécheuse ne fonctionne pas Un fusible est-il grillé ou un disjoncteur s'est-il ■ déclenché? Les sécheuses électriques utilisent 2 fusibles ou...
Page 22 La sécheuse se trouve-t-elle dans une pièce où la ■ température ambiante est inférieure à 45ºF (7ºC)? Le bon fonctionnement des programmes de la sécheuse nécessite une température ambiante supérieure à 45°F (7°C). La sécheuse est-elle installée dans un placard? ■...
Page 23: Garantie
5. Les défauts apparents, notamment les éraflures, les bosses, fissures ou tout autre dommage au fini du gros appareil ménager, à moins que ces dommages soient dus à des vices de matériaux ou de fabrication et soient signalés à Whirlpool dans les 30 jours suivant la date d'achat.
Page 24 Please include a daytime phone number in your correspondence. Avant de faire un appel pour assistance ou service, veuillez vérifier la section “Dépannage” ou consulter www.whirlpool.com/help. Cette vérification peut vous faire économiser le coût d’une visite de réparation. Si vous avez encore besoin d’aide, suivre les instructions ci-dessous.
