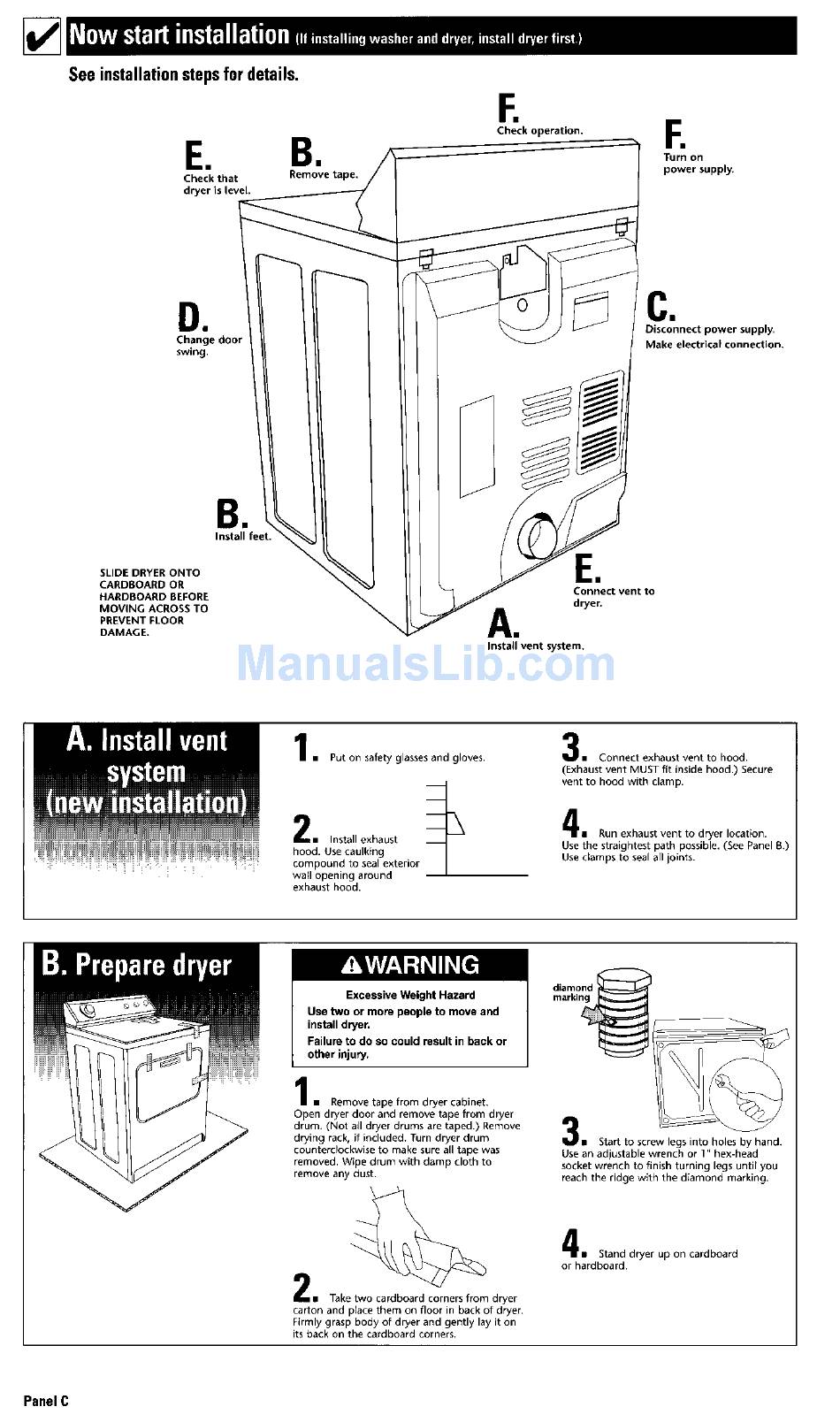

See installationstepsfor details.
E,
B,
Check that
Remove tape,
dryer is level.
E
Check operation.
F.
Turn on
power
supply.
DI
Change door
swing.
Cn
Disconnect power supply.
Make electrical connection.
SLIDE DRYER ONTO
CARDBOARD OR
HARDBOARD BEFORE
MOVING
ACROSS TO
PREVENT FLOOR
DAMAGE.
Install
feet.
EN
Connect vent to
dryer.
A.
Install vent system.
l
m Put on safety glasses and gloves•
•
Install exhaust
_
"_
hood. Use caulking
compound
to seal exterior
wall opening around
exhaust hood.
m Connect exhaust vent to hood•
(Exhaust vent MUST fit inside hood•) Secure
vent to hood with clamp•
m Run exhaust vent to dryer location.
Use the straightest path possible. (See Panel B.)
Use clamps to seal all joints.
Excessive Weight Hazard
Use two or more people to move and
install dryer,
Failure to do so could result in back or
other injury.
•
Remove tape from dryer cabinet.
Open dryer door and remove tape from dryer
drum. (Not all dryer drums are taped.) Remove
drying rack, if included. Turn dryer drum
counterclockwise to make sure all tape was
removed. Wipe drum with damp cloth to
remove any dust.
diamond
marking
u
Start to screw legs into holes by hand.
Use an adjustable wrench or I" hex-head
socket wrench to finish turning legs untir you
reach the ridge with the diamond marking.
n
Take two cardboard corners from dryer
car[on and place them on floor in back of dryer.
Firmly grasp body of dryer and gently lay it on
its back on the cardboard corners.
1
Stand dryer up on cardboard
or hardboard.
PanelC
