Whirlpool LEV7646AW2 Parts List

Whirlpool electric dryer top and console parts
Hide thumbs

Advertisement

Quick Links

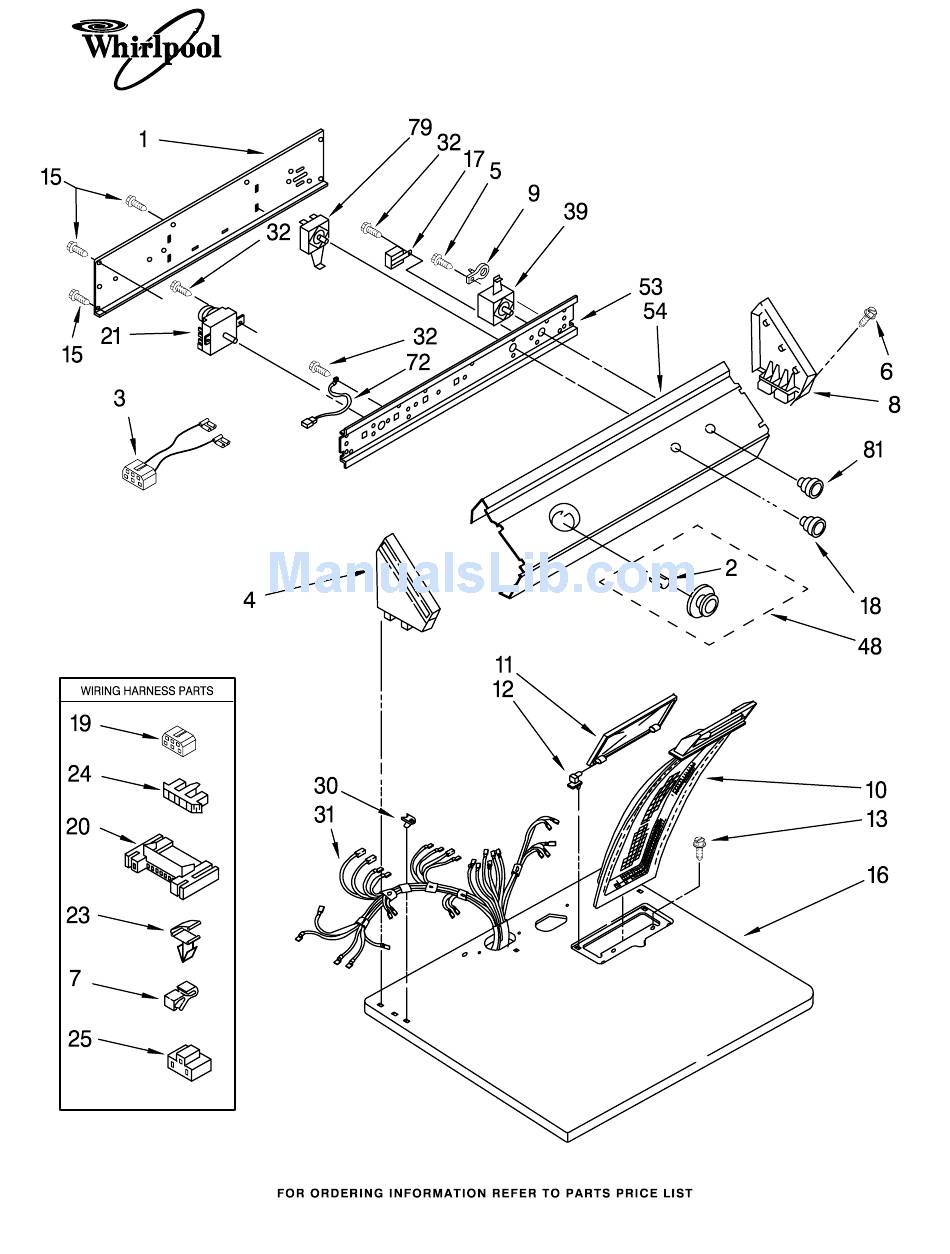

TOP AND CONSOLE PARTS
ELECTRIC DRYER
For Models: LEV7646AW2, LEV7646AN2
(White) (Almond)
2−95 Litho in U.S.A. (dhb)
Part No. 4377406
1

Advertisement

loading

  Related Manuals for Whirlpool LEV7646AW2

  Summary of Contents for Whirlpool LEV7646AW2

  • Page 1 TOP AND CONSOLE PARTS ELECTRIC DRYER For Models: LEV7646AW2, LEV7646AN2 (White) (Almond) 2−95 Litho in U.S.A. (dhb) Part No. 4377406...
  • Page 2 TOP AND CONSOLE PARTS For Models: LEV7646AW2, LEV7646AN2 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 3401144 Connector 3397545 Panel, Rear 339229 Hinge, R.H. (PST) Relay Console 339230 Hinge, L.H. 357213 Nut, Push−In (2) 688805 Clip 688983 Screw, 8−18 x 5/8 3401625 Harness, Wiring 3396029 Wire−Jumper...
  • Page 3: Cabinet Parts

    CABINET PARTS For Models: LEV7646AW2, LEV7646AN2 (White) (Almond) 4377406...
  • Page 4 CABINET PARTS For Models: LEV7646AW2, LEV7646AN2 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Cabinet Handle, Door 3393008 Screw, 10−16 x 1/2 3399585 White 690270 White 237979 Spring, Door (2) 3399586 Almond 690271 Almond 3396795 Cover, Terminal (Includes Illus.
  • Page 5 BULKHEAD PARTS For Models: LEV7646AW2, LEV7646AN2 (White) (Almond) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 690997 Ring, Tri 3390291 Thermostat, 3396352 Lint Chute Assembly High Limit 250 3399506 Shaft, L.H. 3400800 Screw, 8−18 x 3/4 (121.1 C) (60 Hz.) 3399507 Shaft, R.H.
