Whirlpool LEV4624BW0 Parts List

Electric dryer
Hide thumbs

Advertisement

Quick Links

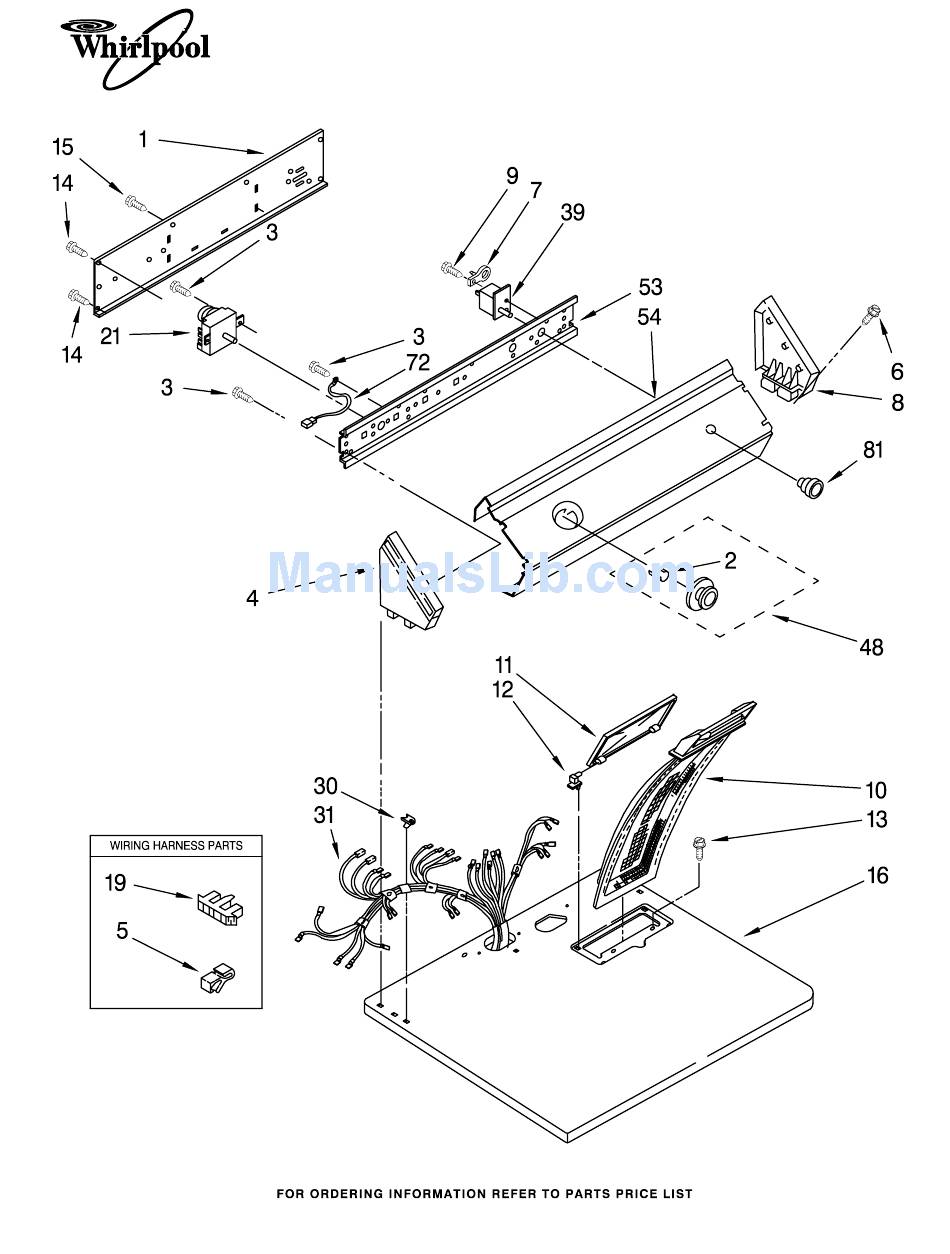

TOP AND CONSOLE PARTS
For Models: LEV4624BW0, LEV4624BN0, LEV4624BG0
ELECTRIC DRYER
(White)
(Almond)
(New Gold)
3−94 Litho in U.S.A. (tpm)
1
Part No. 4377144

Advertisement

loading

  Related Manuals for Whirlpool LEV4624BW0

  Summary of Contents for Whirlpool LEV4624BW0

  • Page 1 TOP AND CONSOLE PARTS For Models: LEV4624BW0, LEV4624BN0, LEV4624BG0 ELECTRIC DRYER (White) (Almond) (New Gold) 3−94 Litho in U.S.A. (tpm) Part No. 4377144...
  • Page 2 TOP AND CONSOLE PARTS For Models: LEV4624BW0, LEV4624BN0, LEV4624BG0 (White) (Almond) (New Gold) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1 3397545 Panel, Rear 339392 Screen, Lint 31 3396646 Harness, Wiring Console Cover, Lint Screen 660936 Switch, 688805 Clip Push−To−Start...
  • Page 3: Cabinet Parts

    CABINET PARTS For Models: LEV4624BW0, LEV4624BN0, LEV4624BG0 (White) (Almond) (New Gold) 4377144...
  • Page 4 CABINET PARTS For Models: LEV4624BW0, LEV4624BN0, LEV4624BG0 (White) (Almond) (New Gold) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 690261 Block, Terminal Upper Front 690236 Wire, Ground 337182 Guide, Cable(L.H.) Panel Assembly (Motor) 337183 Guide, Cable(R.H.) 337464 White 2 3393008 Screw, 10−16 x 1/2...
  • Page 5 BULKHEAD PARTS For Models: LEV4624BW0, LEV4624BN0, LEV4624BG0 (White) (Almond) (New Gold) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 15 3390291 Thermostat, 694283 Lint Chute Assembly 695239 Screw, 8−18 x 3/8 98460 Nut, Push−In (2) High Limit 250 F...
