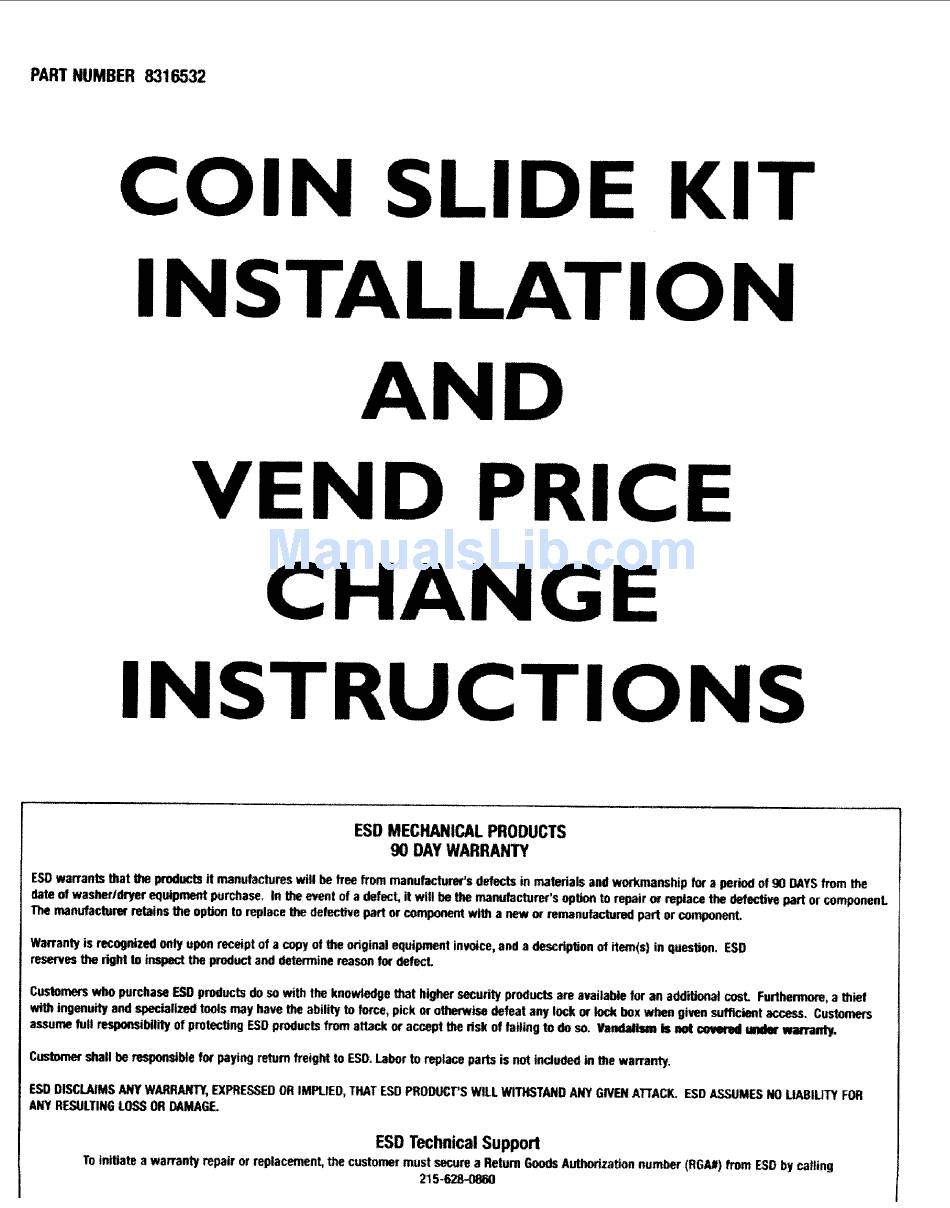

PARTNUMBER 8316532
COIN
Sl IDE KI I
INSTAl
ION
AND
VEND
PRICE
CHANGE
INS I RUCTIONS
ESD MECHANICAL PRODUCTS
90 DAY WARRANTY
ESD warrants that the products it manufactures wtil be free from manufacturer's
defects in materials and workmanship for a period of 90 DAYSfrom the
date of washer/dryer
equipment i_Jrchase, In the event of a defect, it will be the manufacturer's
option to repair or replace the defective part or componenL
The manufecturer retains the option to replace the defective part or component with a new or remanufactured pert or co,'P4)onenL
Warranty is recognized only upon receipt of a copy of the original equipment invoice, and a description of Hem(s) in question. ESD
reserves the rigid to inspect the product and determine reason for defecL
Cus_
who purchase ESD products do so with the knowledge that higher security products are available for an additional cost. Furthermore, a thief
with inganuthj and specialized tools may have the ability to force, pick or otherwise defeat any lock or lock box when given sufficient access. Customers
assume full re_bl&ly
of protecting ESD products from attack or accept the risk of failing to de so. _
is not cmNmld _
warfaMy.
Customer shall be responsible for paying return freight to ESO. Labor to replace parts is not incJnded in the warranty,
ESDDISCLAIMS ANYWARRANTY, EXPRESSED ORIMPLIED,THATESDPRODUCT'S WILLWITHSTAND AWl GIVENATTACK.ESDASSUMES NOLIABIUTYFOR
ANYRESULTING LOSSORDAMAGE.
ESD Technical Support
TOinitiate a warranty repair or replacement, the customer must secure a Return Goods Authorization number (RGA#) from ESD by calling
215-628-4)860
