3.2

System Information for the ATA.

3.2.1 When you login the web page, you can see the ATA current system information like firmware
version, company... etc in this page.
3.2.2 Also you can see the function lists in the left side. You can use mouse to click the function you
want to set up.
3.3

Phone Book

3.3.1 In Phone Book page contains (from page 1~14).
3.3.2 Phone : show serial number.
3.3.3 Name : setting other side telephone number
3.3.4 URL : other side IP address
Example :
When you dial 1# the device should search phone book,if search match number 1 will send
out "070000002@192.168.15.210", if not got match number will send out 1.
-1- If you need to add a phone number into the phone book, you need to input the position,
the name, and the phone number (by URL type). When you finished a new phone list, just
click the "Add Phone" button.
-2- If you want to delete a phone number, you can select the phone number you want to
delete then click "Delete Selected" button.
-3- If you want to delete all phone numbers, you can click "Delete All" button.
ATA-171/172/171P/171M (ATA-S1/S2/P/M)

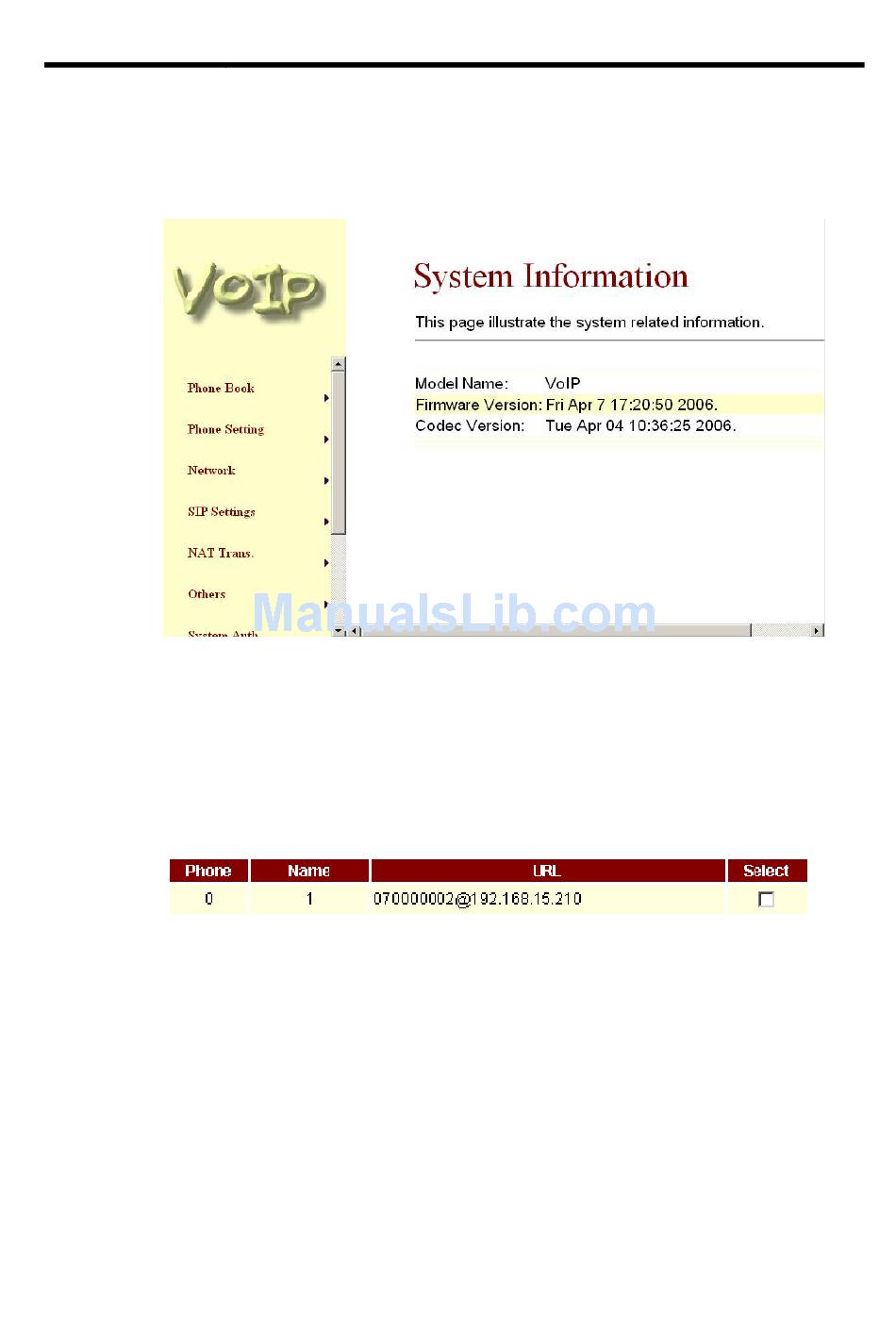

Figure 1. System Information
9
