S t a t u s
S t a t u s

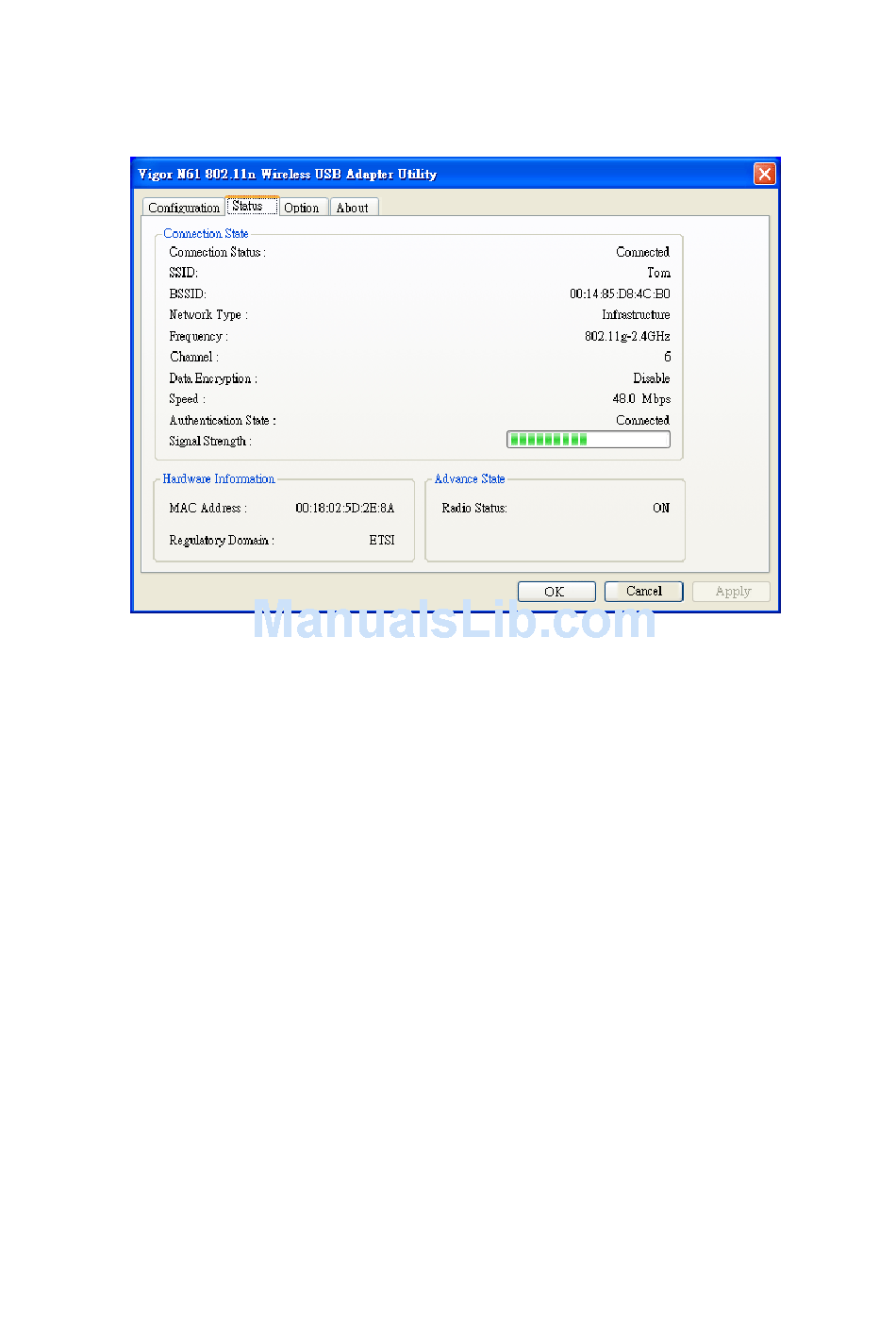

This page provides connection status and hardware information for the device. Simply click
Status tab on the Wireless USB Adapter window.
Connection Status
SSID
BSSID
Network Type
Frequency
Channel
Data Encryption
Speed
Authentication State
Signal Strength
MAC Address
Regulatory Domain
Radio Status
24
It displays current status of connection.
It displays the SSID of the AP that your computer connected.
It displays the MAC address for current device.
It displays the mode (Infrastructure or Ad-Hoc) that you set for
connecting to AP.
It displays the frequency that this wireless card. used.
It displays the channel used for this wireless card.
It displays the encryption way for authentication mode used for
this wireless card.
It displays current transferring rate for the link.
It displays the encryption status for connection.
The longer the red bar for signal strength is, the better the
connection effect will be. The graph is active only when you
choose Access Point as the network type.
It displays the MAC address for AP or wireless router that station
connected.
It displays Regulatory Domain for different areas. For example, it
will display ETSI (CH1~CH13) for nations in Europe, display
FCC(CH1~CH11) for USA, etc.
It displays On or Off status for this wireless card.
Vigor N61 User's Guide
