Draytek VIGOR N61 User Manual page 21

WPA Passphrase - Type the password for authentication with
AP while using WPA PSK mode.
Check Passphrase - Check this box to make the characters of
passwords being visible.
EAP Type - A type for authentication between station and
radius server while executing 802.1X mode. For some EAP
types, you have to choose a sub-item from the drop down menu

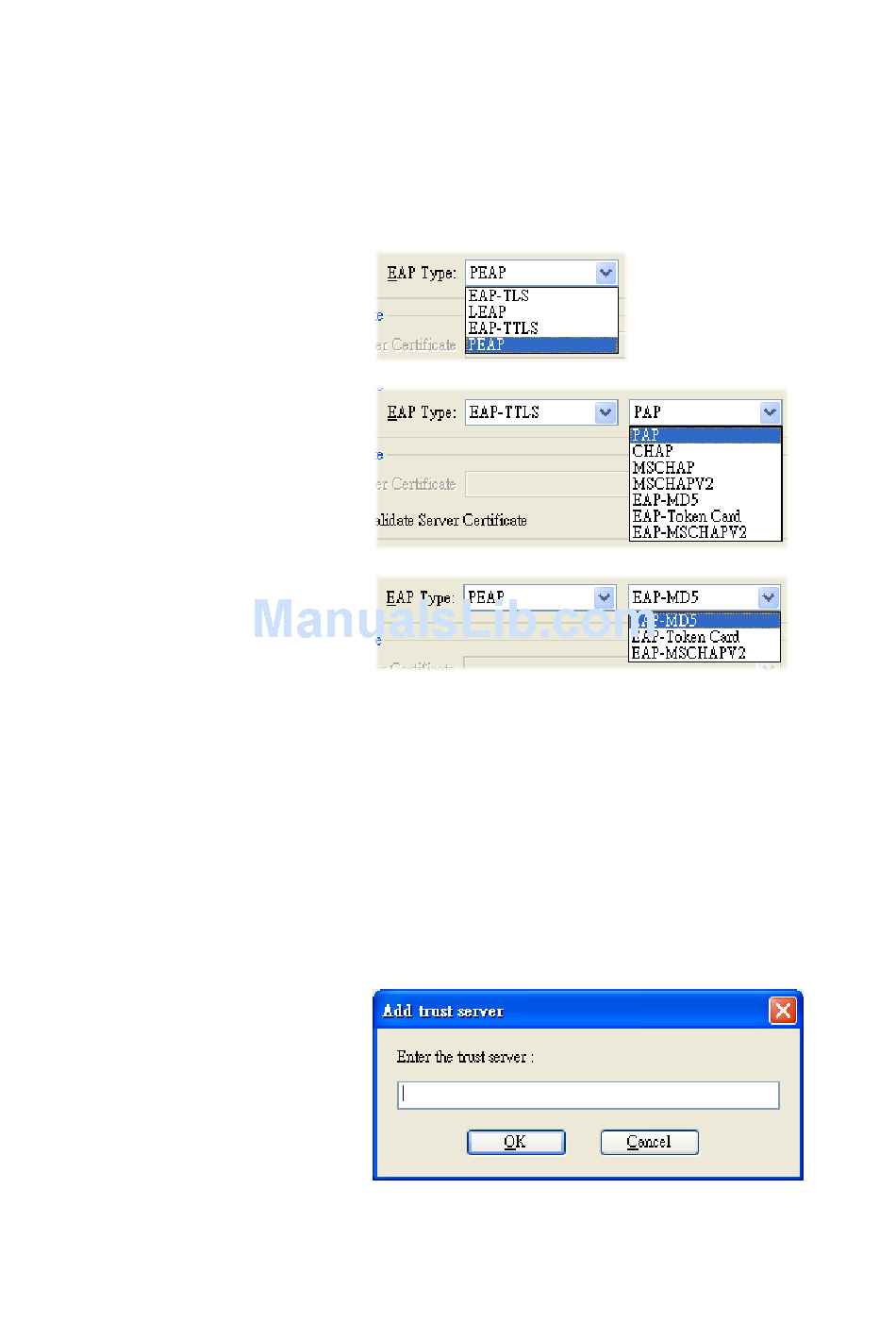

on its right side for using together. Refer to the following
sample graphics.
User Certificate – The radius server will assign a user
certificate for users. Type the characters in this box.
Validate Server Certificate - Check this box to validate the
server certificate for radius server.
User Name - Type the certificate account for radius server.
Domain Name - Type the domain name for the radius server.
Password – Type the password for connection with WPA-PSK
mode.
Confirm Password - Type the password again to confirm it.
TTLS Identify – Type the TTLS ID for the radius server.
Add – You can add a trust CA server by clicking Add. The
following dialog will appear for you to enter a new name.
Remove – For the CA server which is useless, please select that
one from Trust CA List and click this button to delete it.
IP & Proxy Setting This setting allows you to set IP and proxy. Please click this
button to open the following window.
Vigor N61 User's Guide 21
