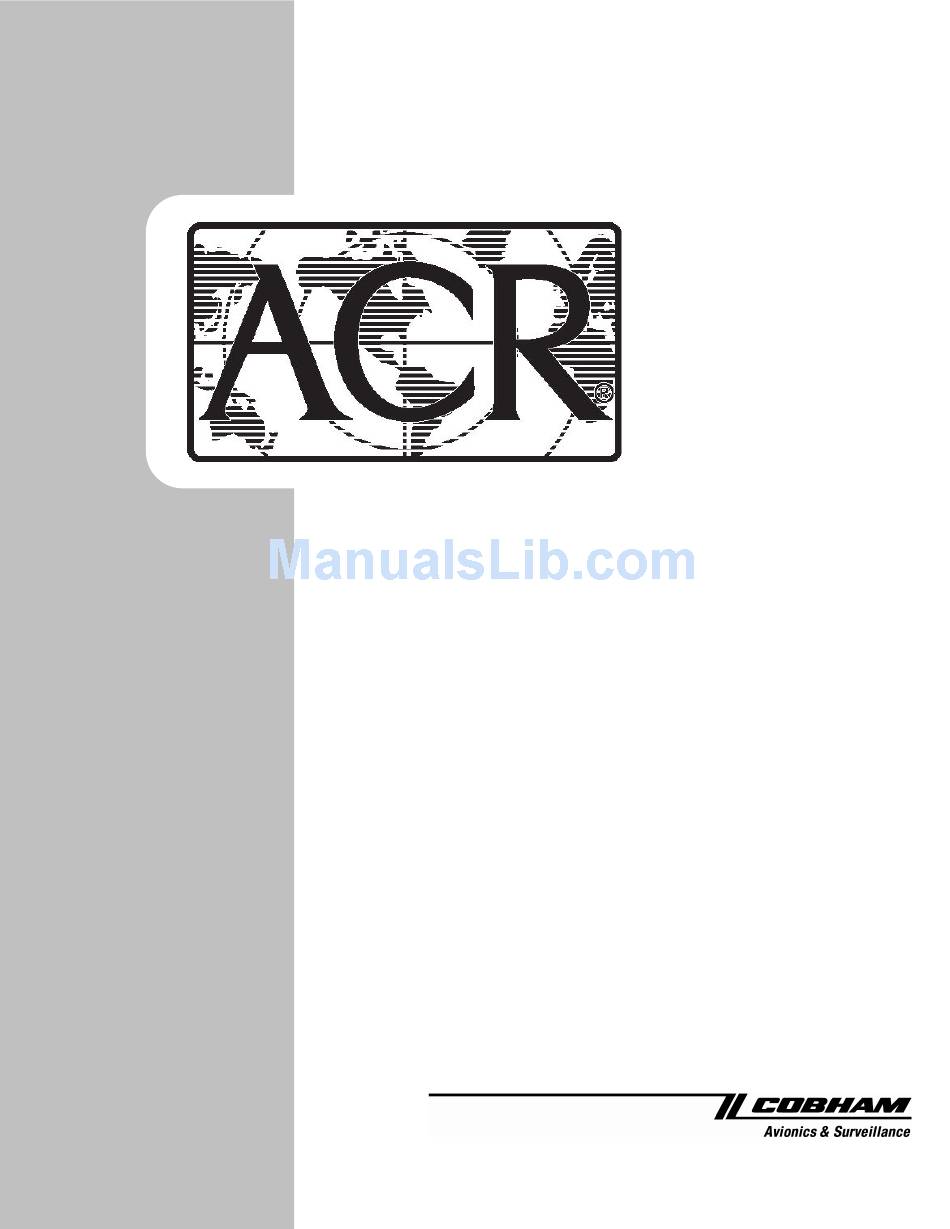

PRODUCT
SUPPORT
MANUAL
Y1-03-0160
Rev. B
Mini B
™ ILS H
ON
300
2
Product No. 2767
Emergency Position
Indicating Radio Beacon (EPIRB)
ETSI Type Approved to ETS 300 152
ACR Electronics, Inc.
5757 Ravenswood Road
Fort Lauderdale, Fl 33312
+1(954) 981-3333 • Fax +1 (954) 983-5087
www.acrelectronics.com
Email: Info@acrelectronics.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MINIB300 ILS H2ON and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ACR Electronics MINIB300 ILS H2ON

Summary of Contents for ACR Electronics MINIB300 ILS H2ON

  • Page 1 Mini B ™ ILS H Product No. 2767 Emergency Position Indicating Radio Beacon (EPIRB) ETSI Type Approved to ETS 300 152 ACR Electronics, Inc. 5757 Ravenswood Road Fort Lauderdale, Fl 33312 +1(954) 981-3333 • Fax +1 (954) 983-5087 www.acrelectronics.com Email: Info@acrelectronics.com...
  • Page 2 * * * WARNING * * * THIS TRANSMITTER IS AUTHORIZED FOR USE ONLY DURING SITUATIONS OF GRAVE AND IMMINENT DANGER DELIBERATE MISUSE MAY INCUR A SEVERE PENALTY Y1-03-0160 Rev. B...
  • Page 3 (1) year from date of purchase or receipt as a gift. During the warranty period ACR Electronics, Inc. will repair or, at its option, replace at no cost to you for labor, materials or return transportation, provided you obtain a Return Authorization and the return shipping is prepaid to ACR Electronics, Inc., 5757 Ravenswood Road, Fort Lauderdale, FL 33312-...

  • Page 4: Table Of Contents

    ACR MINI B ILS H ON EPIRB TABLE OF CONTENTS PARA TITLE PAGE ILS H ON Outline Drawing Figure 1 ACR Mini B SECTION 1 INTRODUCTION 2 - 4 General Purpose Satellite Detection Authorizations Figure 2 Search and Rescue Satellite Aided Tracking (SARSAT) Characteristics Technical Data SECTION 2...
  • Page 5 FIGURE 1: MINI B 300 ILS H ON EPIRB Y1-03-0160 Rev. B...

  • Page 6: Tm Ils H

    SECTION 1 - INTRODUCTION GENERAL This manual provides installation, operation and maintenance instructions for the MINI B ILS H ON Emergency Position Indicating Radio Beacons (EPIRB - Class B) hereinafter referred to as the Beacon. This section describes the characteristics and details of the Beacon (See Figure 1).

  • Page 7: Characteristics

    FIGURE 2: SATELLITE DETECTION CHARACTERISTICS The MINI B ILS H ON Beacon is an o-ring sealed battery operated unit. The beacon case, with its external antenna is waterproof. The semiconductor circuits are mounted within the case assembly, which also contains the battery power supply. An "ON-OFF"...

  • Page 8: Technical Data

    TECHNICAL DATA Pertinent technical data is listed below: ITEM CHARACTERISTICS Frequency 121.5 MHz Power Output Minimum 75 mW during 24 hours operation Operating Life 24 hours minimum at -10°, (-14°F) longer in temperate climates Battery Lithium battery, 6V Duracell DL223A, (or equivalent) sold with beacon.

  • Page 9: Installation

    SECTION 2 - INSTALLATION GENERAL The MINI B ILS H ON Beacon has been designed for multi-purpose installation for survival use, personnel, rafts, floats and survival craft. It should be stowed on your persons, where it will be readily available in an emergency, or mounted where easily accessible with the optional MINI ILS H ON Mounting Bracket (P/N 9321).

  • Page 10: Deactivation

    within 2 seconds. The beacon will begin transmitting and is confirmed by a steady red LED and followed by the audible warble and flashing red LED. Extend antenna to its full length. From the armed position, manually release the antenna. Lift the switch and move to the “OFF” then “ON”...

  • Page 11: Inspection Check

    3. The MINI B ILS H ON EPIRB has a dated battery life. When purchasing a new battery, make sure the battery is fresh. The battery expiry date is obtained by adding the battery manufacturers rated replacement life of 10 years to the date of manufacture. For example, a date code of 6J1313 would have a Battery Expiry Date of October 13, 2006.

  • Page 12: Periodic Operational Check

    1. Check the antenna tip and spring for any signs of damage or corrosion. If antenna has been bent during storage, it is normal for it to maintain a slight bend. This will not effect performance. 2. Check the antenna for any signs of chafing, wear, cracks, or other damage, and signs of resultant corrosion beneath the covering.
  • Page 13 The MINI B ILS H ON has a speaker, fed by voltage from the microprocessor and the transmitter, which produces the audible warble. This EPIRB will emit a distinctive warbling sound when operationally tested. Any change in the audible warble, (a loss of sound or intermittent sound), is an indication that you should have your beacon serviced at an authorized service station.
