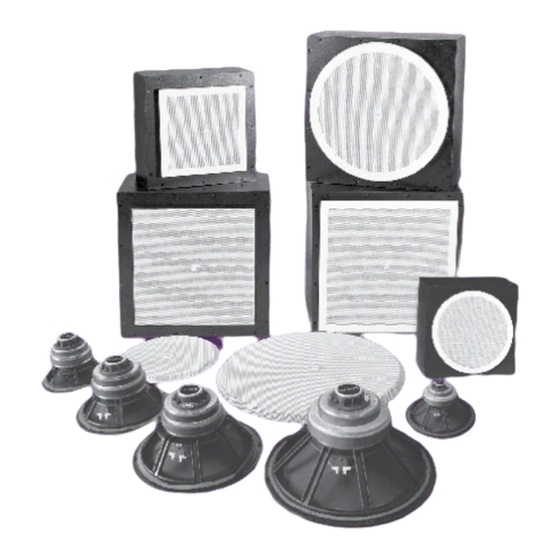

- Page 1 A R E N A S E R I E S INSTRUCTION BOOKLET ARENA MODELS 6/6-16/6T, 8/8-16/8T, 10/10-16/10T, 12/12-16/12T & 15/15-16/15T F O R T H E C L O S E S T A P P R O A C H T O T H E O R I G I N A L S O U N D...
-
Page 2: Table Of Contents
......BACK COVER AND ASSISTANCE. Limited Liability QUAD Industrial assumes no liability whatsoever for any damage or loss, either direct or consequential arising from the installation and use of these products. Liability is limited to replacement of product or refund, at the QUAD Industrial’s discretion. -
Page 3: Product Descriptions
Arena 10 tions in distributed systems. Each model is built around a genu- ine QUAD Industrial DuAlign™ precision transducer, offering The Arena 10 is a large format two-way ceiling speaker system linear response in both amplitude and phase domains. Drivers consisting of a 10"... -
Page 4: Arena Models
Select the appropriate FULL GRILLE model for applications where schemes are possible with third-party accessories and enclo- Arena speakers require a square grille in place of the round sures. Consult with your local distributor or QUAD Industrial grille supplied. directly for further information. -
Page 5: Connections: Low Impedance Connections
CO NNE C TI O N & OP E R AT I O N 70/100V Connections 70/100V Models use one terminal for the Common (−) connec- Low Impedance (16Ω) Connections tion and the other three terminals for the transformer power taps. Low impedance models are fitted with two terminals for the (+) NOTE: Power taps are labeled for 70V operation. -
Page 6: Ce Compliance: Statement
COMPL IA N C E This product is in compliance with CE directives and bears the CE mark. For detailed information on specific directives please contact your local QUAD Industrial sales office or distributor. -
Page 7: Dimension Drawings: All Arena Models
DIM EN SIO N S... -
Page 8: Specifications
S P EC IF IC ATI O N S Power Handling: ARENA 6 ARENA 8 ARENA 10 ARENA 12 ARENA 15 Continuous 120W 150W 200W 300W Program 160W 250W 300W 400W 600W Peak 320W 500W 600W 800W 1200W Frequency Response (-10dB): 80Hz−20kHz 55Hz−20kHz... - Page 9 S PEC I FI C ATIO NS Power Handling: ARENA 6-16 ARENA 8-16 ARENA 10-16 ARENA 12-16 ARENA 15-16 Continuous 120W 150W 200W 300W Program 160W 250W 300W 400W 600W Peak 320W 500W 600W 800W 1200W Frequency Response (-10dB): 80Hz−20kHz 55Hz−20kHz 50Hz−20kHz 50Hz−20kHz...
- Page 10 S P EC IF IC ATI O N S Power Handling: ARENA 6T ARENA 8T ARENA 10T 70V: 10W/20W/40W/80W 70V: 15W/30W/60W/120W 70V: 15W/30W/60W/120W 100V: 20W/40W/80W 100V: 30W/60W/120W 100V: 30W/60W/120W Frequency Response (-10dB): 80Hz−20kHz 55Hz−20kHz 50Hz−20kHz Frequency Response (+/-3dB): 100Hz−14kHz 80Hz−16kHz 60Hz−16kHz Sensitivity (@ 1W/1M):...
- Page 11 SPE CI F IC ATI O N S Power Handling: ARENA 12T ARENA 15T 70V: 25W/50W/100W/200W 70V: 30W/60W/120W/240W 100V: 50W/100W/200W 100V: 60W/120W/240W Frequency Response (-10dB): 50Hz−20kHz 45Hz−20kHz Frequency Response (+/-3dB): 55Hz−16kHz 50Hz−15kHz Sensitivity (@ 1W/1M): 95dB 97dB Max SPL: 118dB 121dB Coverage (H x V): 85˚...
- Page 12 F O R T H E C L O S E S T A P P R O A C H T O T H E O R I G I N A L S O U N D © 2006 QUAD Industrial. QUAD Industrial is a member of the International Audio Group. IAG America Inc. 8440 154th Avenue NE · Redmond, WA 98052...
