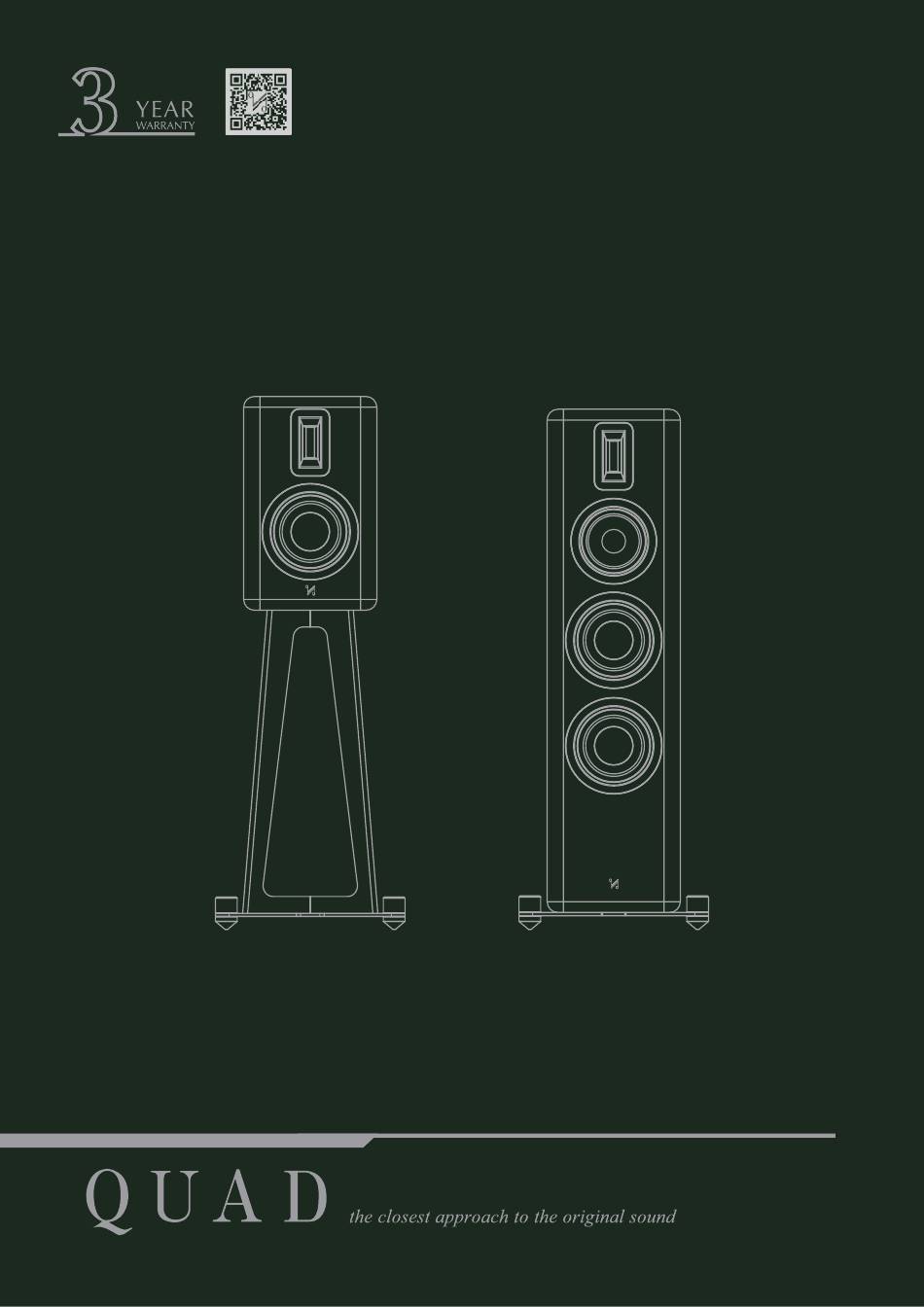

- Page 1 Scan the QR code using a smart-phone device, for product warranty registration online. Revela Series Loudspeaker Range User Manual...
-
Page 2: Important Safety Information
This symbol indicates that there are important to any recycling provisions in your area. operating and maintenance instructions in the QUAD Revela 1 bookshelf: these loudspeakers should literature accompanying this unit. ideally be stand mounted though they may be placed on Read these instructions. - Page 3 Revela continues the QUAD innovations laid out in recent years, taking learnings from the award-winning S-series and Z-series whilst maintaining its strong design heritage, traceable back to 1949 and the first QUAD speaker – the Corner Ribbon. QUAD Revela brings modern design cues coupled with the now synonymous QUAD ‘True Ribbon ’...
-
Page 4: Cables And Connectors
When connecting terminals make sure you leave no strands of bare wire that can short across to adjacent terminals. As an alternative to bare wire you can use specialist spade connectors. Your QUAD dealer will be pleased to advise you on this issue. -
Page 5: Positioning The Front Loudspeakers
Positioning the Front Loudspeakers The Revela 2 model is designed to be floorstanding. We suggest that they are positioned at least 200mm from the rear walls and 700mm from the side walls, facing slightly inwards. The Revela 1 model should be stand or wall mounted though they may be placed on a rigid shelf. -
Page 6: Connecting The Loudspeakers
Please check the wiring to both loudspeakers carefully, especially if they are bi-wired. Ancillary Equipment QUAD loudspeakers are compatible with the great majority of audio-visual and high-fidelity equipment. Your amplifier should have ample reserves of power - a low-power amplifier can run out of steam quite easily and the resulting distortion is unpleasant to listen to and could damage your speakers. - Page 7 Looking After Your Loudspeaker Your QUAD Revela loudspeakers are finished with a 'piano lacquer'. This is a multi-layer high-gloss paint finish of · the highest quality. They should not be waxed or treated with spray solvents which will smear and dim the finish.
-
Page 8: Warranty Coverage
QUAD speakers are built to provide a lifetime of sonic pleasure. We hope you will derive many years of good service from our products. QUAD warrants its products, subject to the following terms and conditions below, to be free from defects in materials and workmanship. -
Page 9: How To Claim
Please note, QUAD is not able to supply parts or replacement items to any other entity than the official distributor or authorised service centre. Other than the warranty and services set out in this warranty, to the fullest extent permitted by law, QUAD shall not be liable to you and/or any third party or entity whatsoever for: Any loss, damages and/or malfunction caused to any product(s) which is/are connected to any of the products ·... - Page 10 IAG Service Dept. 13/14 Glebe Road Huntingdon Cambridgeshire PE29 7DL Tel: +44(0)1480 452561 Email: service@quad-hifi.co.uk For information on other authorised service centres worldwide contact QUAD International, UK. A world wide distributors list is available on the QUAD website: www.quad-hifi.co.uk...
-
Page 11: Specifications
SPECIFICATIONS Model QUAD Revela 1 QUAD Revela 2 General Description Bookshelf Floor-standing Enclosure Type Bass reflex Bass reflex Transducer Complement 2-way 3-way Bass Driver 165mm advanced fibre cone 2 x 165mm advanced fibre cone Midrange Driver 150mm advanced fibre cone... - Page 12 12 12...
- Page 15 Correct Disposal of this product. This marking indicates that this product should not be disposed of with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the return and collection systems or contact the retailer where the product was purchased.
- Page 16 IAG House, 13/14 Glebe Road, Huntingdon, Cambridgeshire, PE29 7DL, UK Tel: +44(0)1480 452561 Email: service@quad-hifi.co.uk http://www.quad-hifi.co.uk IAG reserves the right to alter the design and specifications without notice. All rights reserved © IAG Group Ltd. QUAD is a member of the International Audio Group.
