Connecting Fan and Power Cables
Connecting Fan Cables

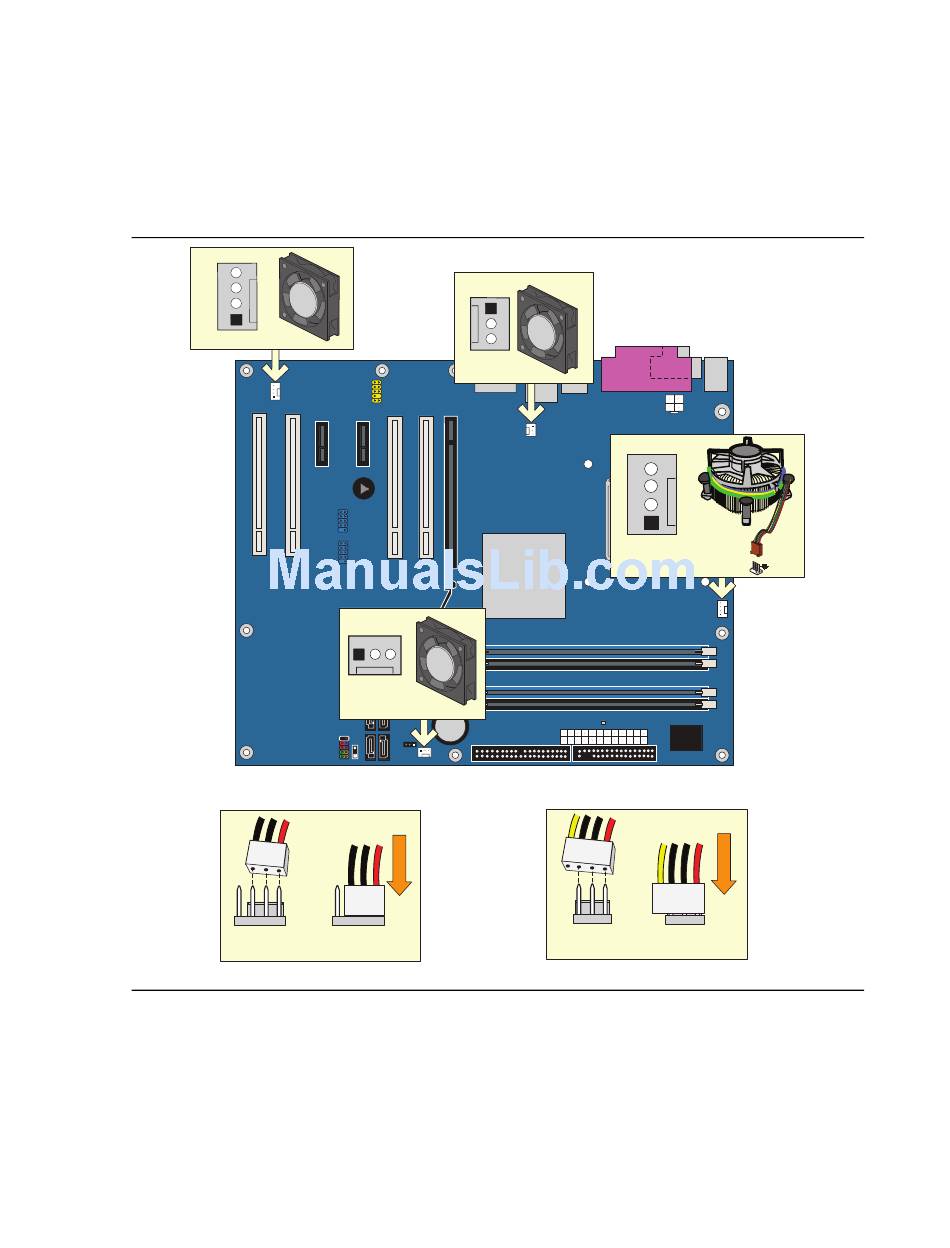

Figure 22 shows the location of the fan headers. Connect the processor's fan heat sink cable to the
4-pin processor fan header on the board. Connect chassis fan cables to the 3-pin fan headers.
4
3
2
A
1
4
3
2
1
B
Figure 22. Location of Fan Headers
Installing and Replacing Desktop Board Components
OR
3
2
1
A
3
1
2
B
OM19112
43
