Intel Desktop Board D945GCLF Product Guide
Connecting Internal Headers
Before connecting cables to the internal headers, observe the precautions in "Before
You Begin" on page 21. Figure 11 shows the location of the board's internal headers.
30
Item
Description
A
Audio
B
Hi-speed USB 2.0
C
Front panel

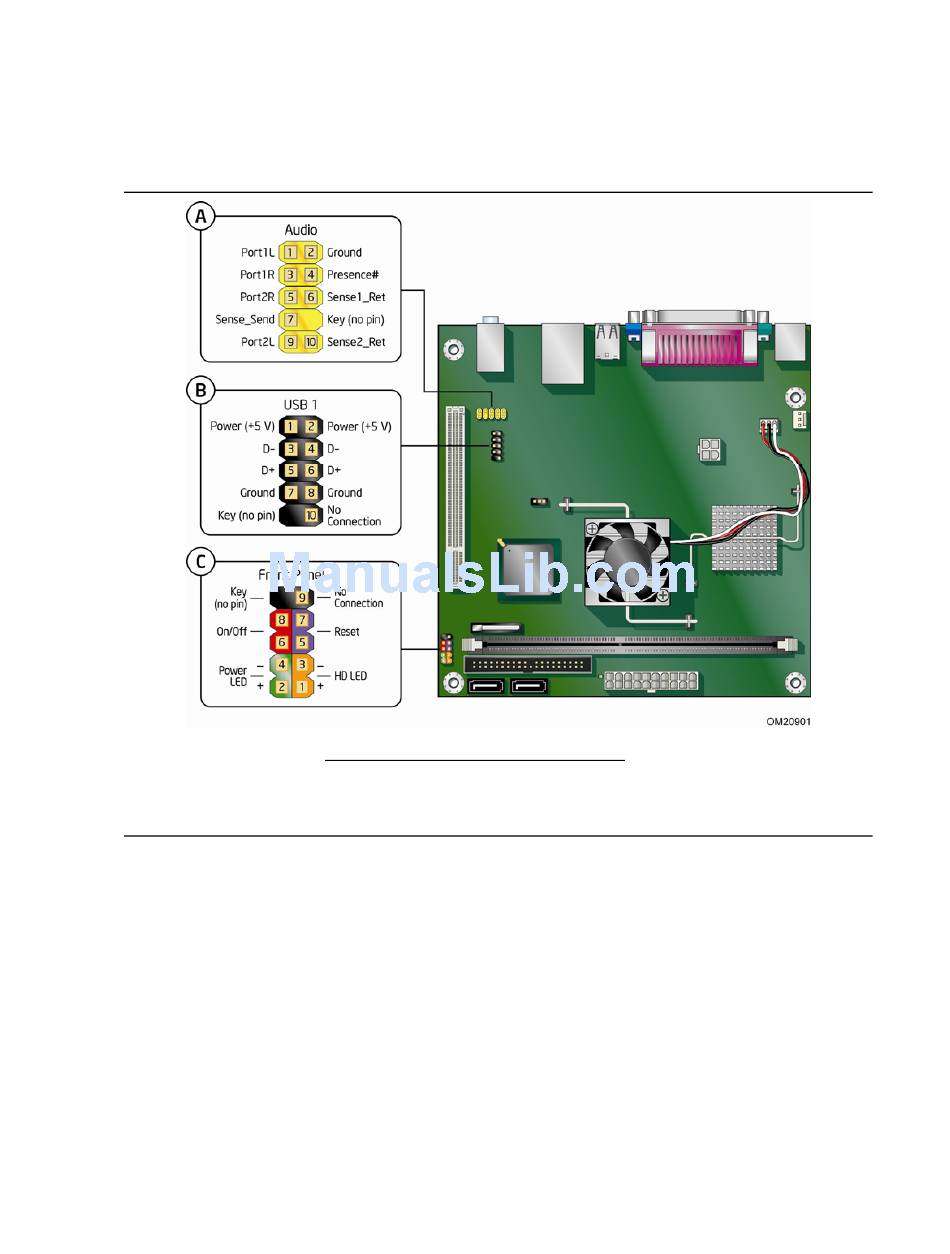

Figure 11. Internal Headers
