LAN Subsystem

The LAN, based on the RealTek RTL8102EL Ethernet Controller, provides the following
functions:
• 10/100 Mb/s Ethernet LAN
• Support for RJ-45 connector with status indicator LEDs
• Programmable transit threshold
• Configurable EEPROM that contains the MAC address

LAN Subsystem Software

For LAN software and drivers, refer to the D945GCLF link on Intel's World Wide Web
site at http://support.intel.com/support/motherboards/desktop.

LAN Status LEDs

Two LEDs are built into the RJ-45 LAN connector located on the back panel (see
Figure 3). These LEDs indicate the operating states of the LAN.
Table 3 describes the LED states when the board is powered up and the LAN
subsystem is operating.
Table 3. LAN Status LEDs
LED LED Color
Activity (A) Green
Speed (B) N/A
Yellow

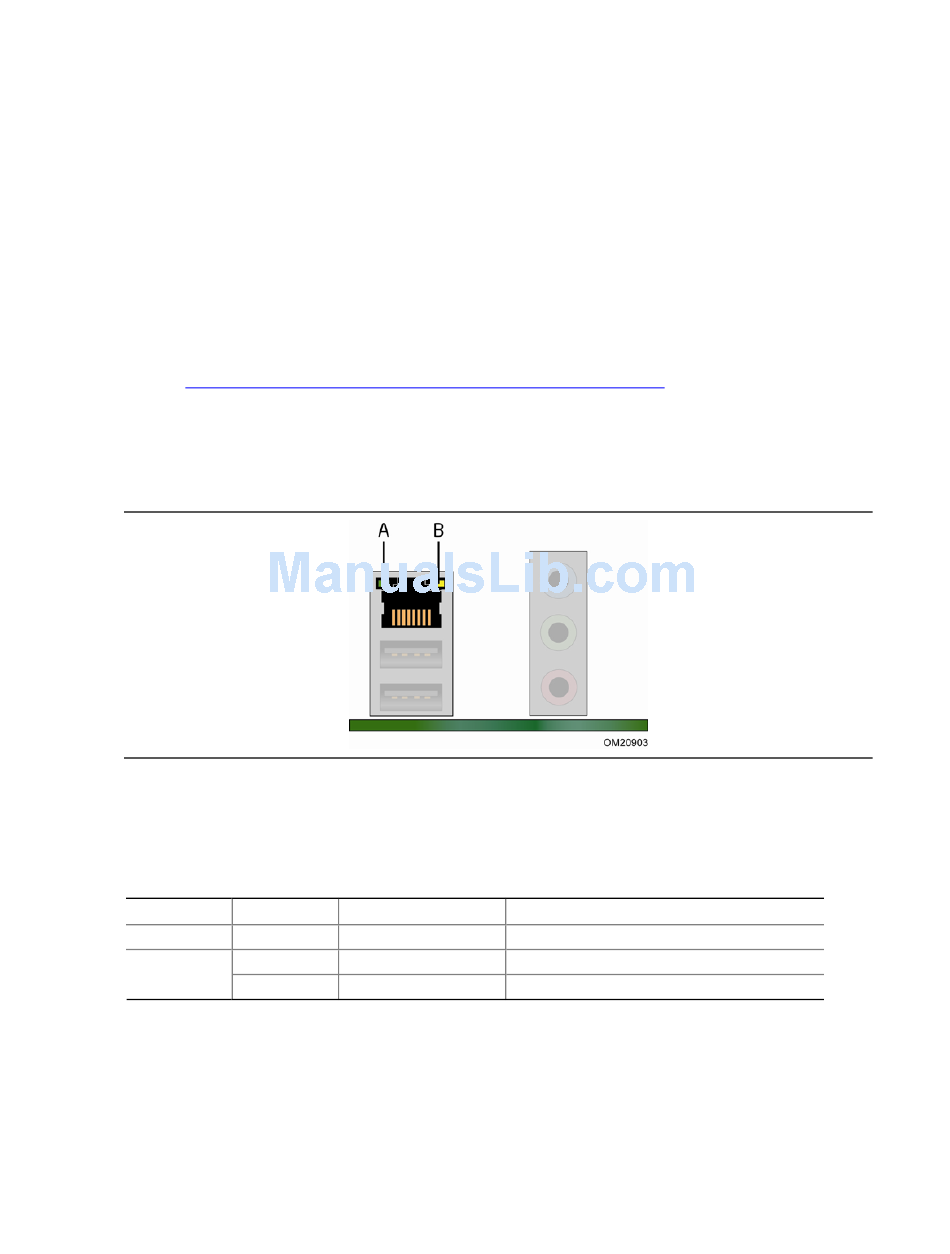

Figure 3. LAN Status LEDs
LED State Indicates
Blinking LAN activity is occurring.
Off 10 Mbits/s data rate is selected.
On (steady state) 100 Mbits/s data rate is selected.
