Connecting to the Front Panel Header

Before connecting to the front panel header, observe the precautions in "Before You
Begin" on page 21. See Figure 11, C on page 30 for the location of the front panel
header.
Table 6 shows the pin assignments for the front panel header.
Table 6. Front Panel Header Signal Names
Pin Signal
Hard Drive Activity LED
1 HD_PWR
3 HDA#
Reset Switch
5 Ground
7 FP_RESET# In
9 +5 V

Connecting a Chassis Fan

Figure 12 shows the location of the chassis fan header. Connect the chassis fan cable
to this header.
32
In/Out Description
Hard disk LED pull-
Out
up (330 Ω) to +5 V
Hard disk active
Out
LED
Ground
Reset switch
Power
Power

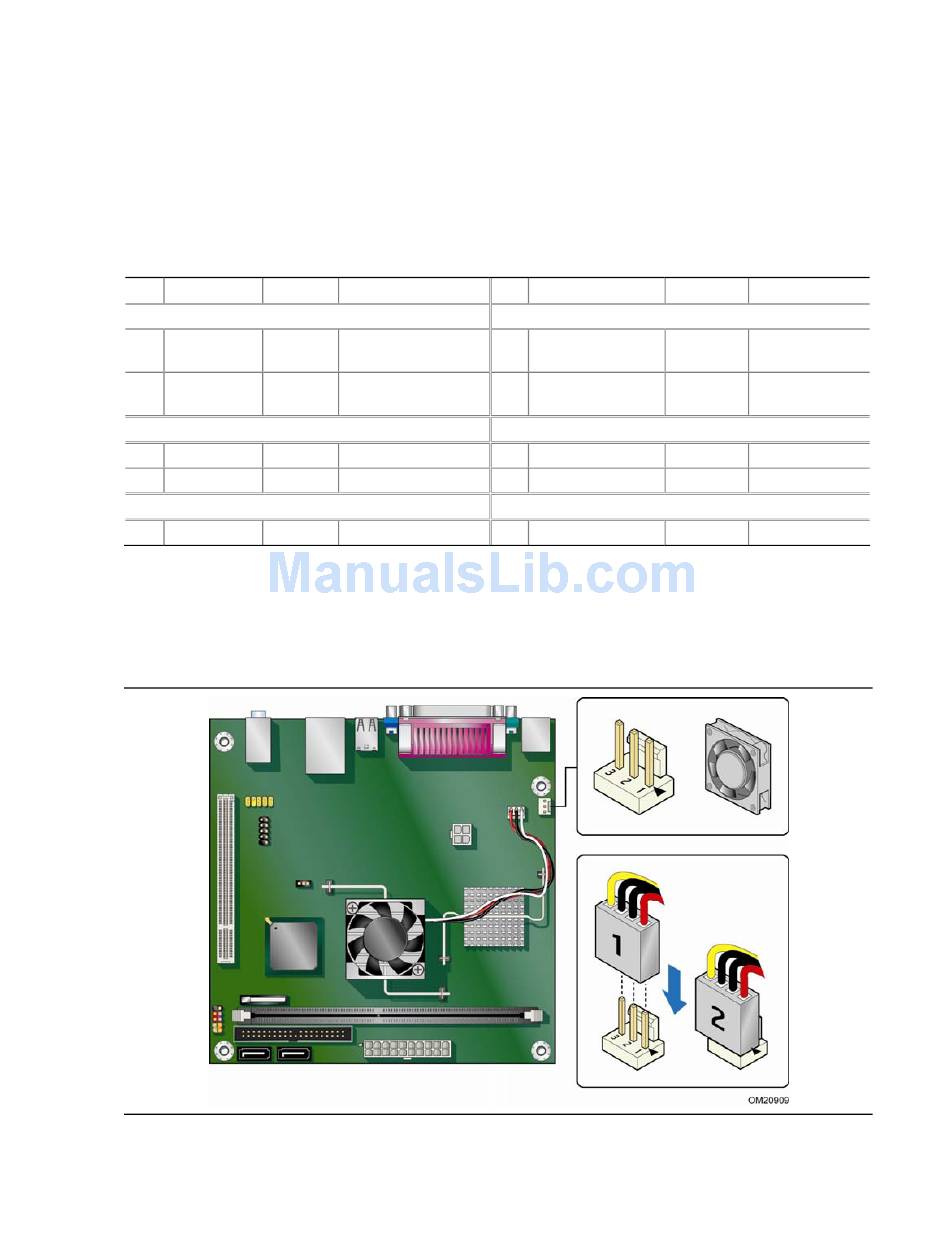

Figure 12. Location of the Chassis Fan Header
Pin Signal In/Out
Power LED
2 HDR_BLNK_GRN Out
4 HDR_BLNK_YEL Out
On/Off Switch
6 SWITCH_ON# In
8 Ground
Not Connected
10 N/C
Description
Front panel
green LED
Front panel
yellow LED
Power switch
Ground
No pin
